Vanquish Products VS4-10 Currie F9 Front Axle (Black)

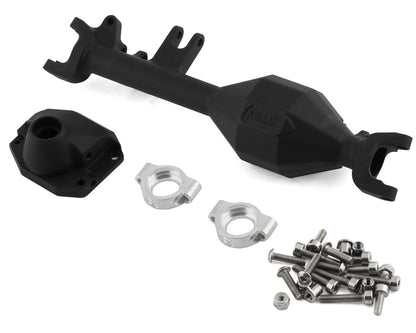

The Vanquish Products VS4-10 Currie F9 Front Axle is a Currie Enterprises officially licensed axle housing designed for use with a Vanquish Products VS4-10 Chassis. It features a diamond-shaped pumpkin with AR44 style gears, one-piece bearing retainers, integrated c-hubs and built-in suspension mounting points.

Features

• Fully licensed by Currie Enterprises
• One-piece bearing retainers
• Integrated C-hub design for a more scale appearance
• Threaded chromoly steel C-hub inserts with replaceable threads
• Double-shear shock mounts
• Integrated panhard mount
• Upper link mount built into the housing for added scale appearance and strength

Includes

• Currie front housing
• 2 bearing retainers
• 4 threaded inserts
• Required hardware
• Instructions

Needed to Complete

• VDI universal axle shafts for the short and long sides: INCIRC00181
• Hexes, hex pins, bearings, kingpin, knuckles, ring and pinion or locker
• 0.280" pivot balls and rod ends

Required Bearings

• 2 × 7x14x3.5mm
• 1 × 5x14x5mm
• 3 × 5x11x4mm

This axle is intended for use with a Vanquish Products VS4-10 Chassis. The offset pumpkin requires additional clearance and may not function properly with many other chassis designs. It is not for use with Vanquish Products Brass Pivot Balls (.300" width). Due to the AR44 gear design, proper pinion gear shimming may be required for optimal results.
