Vanquish Products VS4-10 Currie D44 Rear Axle (Black)

The Vanquish Products VS4-10 Currie D44 Rear Axle is an officially licensed Currie Enterprises RockJock 44 style axle designed for a scale appearance and durable axle housing assembly. It uses Vanquish Products AR44 gear sets and spools.

Features

• Fully licensed by Currie Enterprises
• One-piece bearing retainers, patent pending
• Rear bearing retainer caps eliminate the need for lockouts and provide a more scale appearance
• Double-shear shock mounts

Recommended Products

• Vanquish VS4-10 Chassis Kit (VPS10130)
• Incision 90mm shocks (IRC00210)
• Vanquish Rod Ends and Pivot Balls (.280" width pivot balls)
• Incision Link Kit (IRC00070 or IRC00071)
• Vanquish Products 6-Hole AR44 Gear set (VPS08330)
• Vanquish Products 6-hole AR44 Spool (VPS08070)

Note: This is not a complete axle assembly. Completing the D44 requires hexes, hex pins, bearings, kingpin, knuckles, ring and pinion gear, locker, two 7x14x3.5 Bearings, one 5x14x5 Bearing and three 5x11x4 Bearings.

Not for use with Vanquish Products Brass Pivot Balls (.300" width). Due to the AR44 gear design, proper shimming of the pinion gear may be required for optimal results.

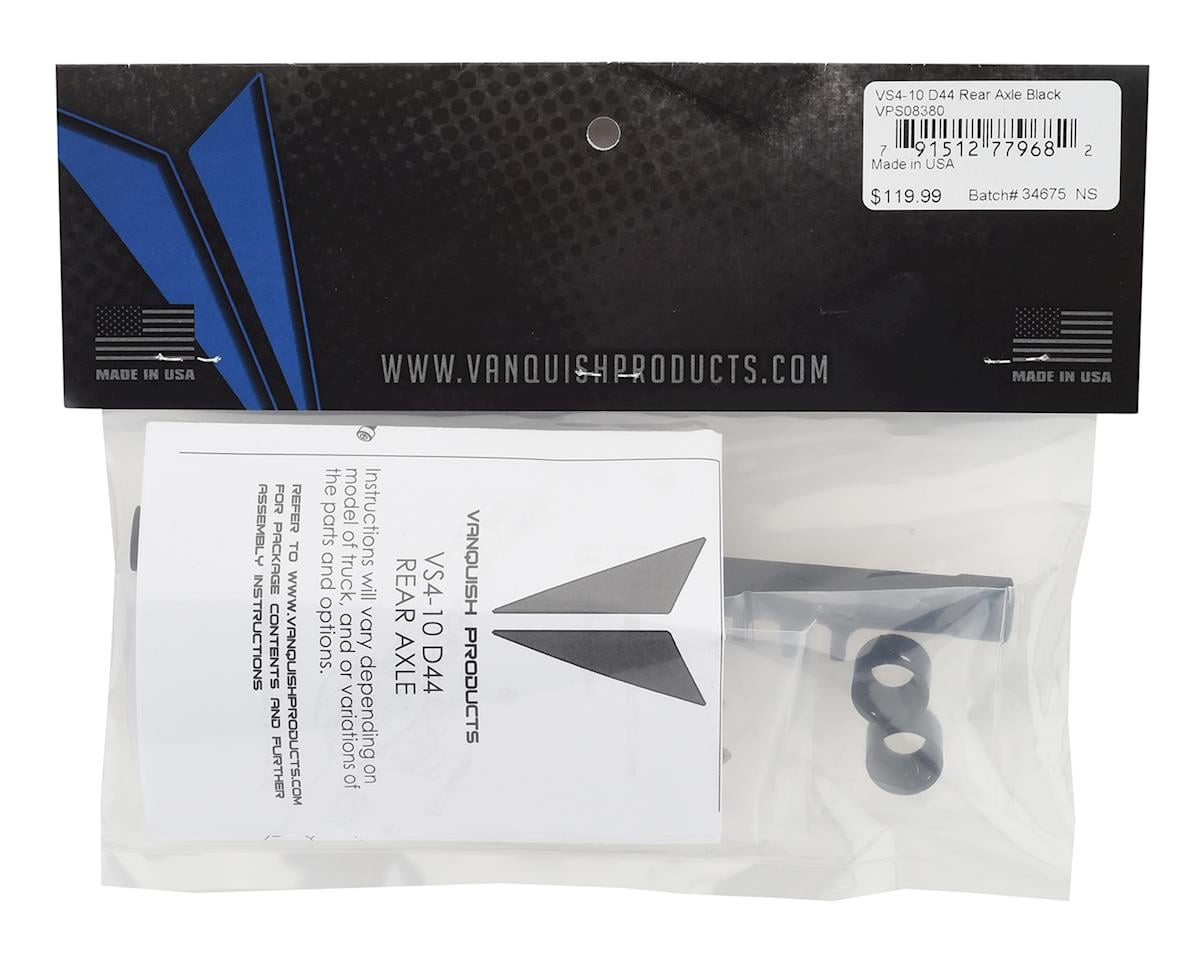

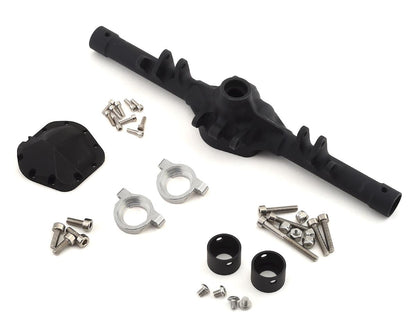

Includes

• Currie Rear Housing
• 2 Bearing Retainers
• Currie Diff Cover
• 2 Axle End Caps
• Required hardware
• Instructions
