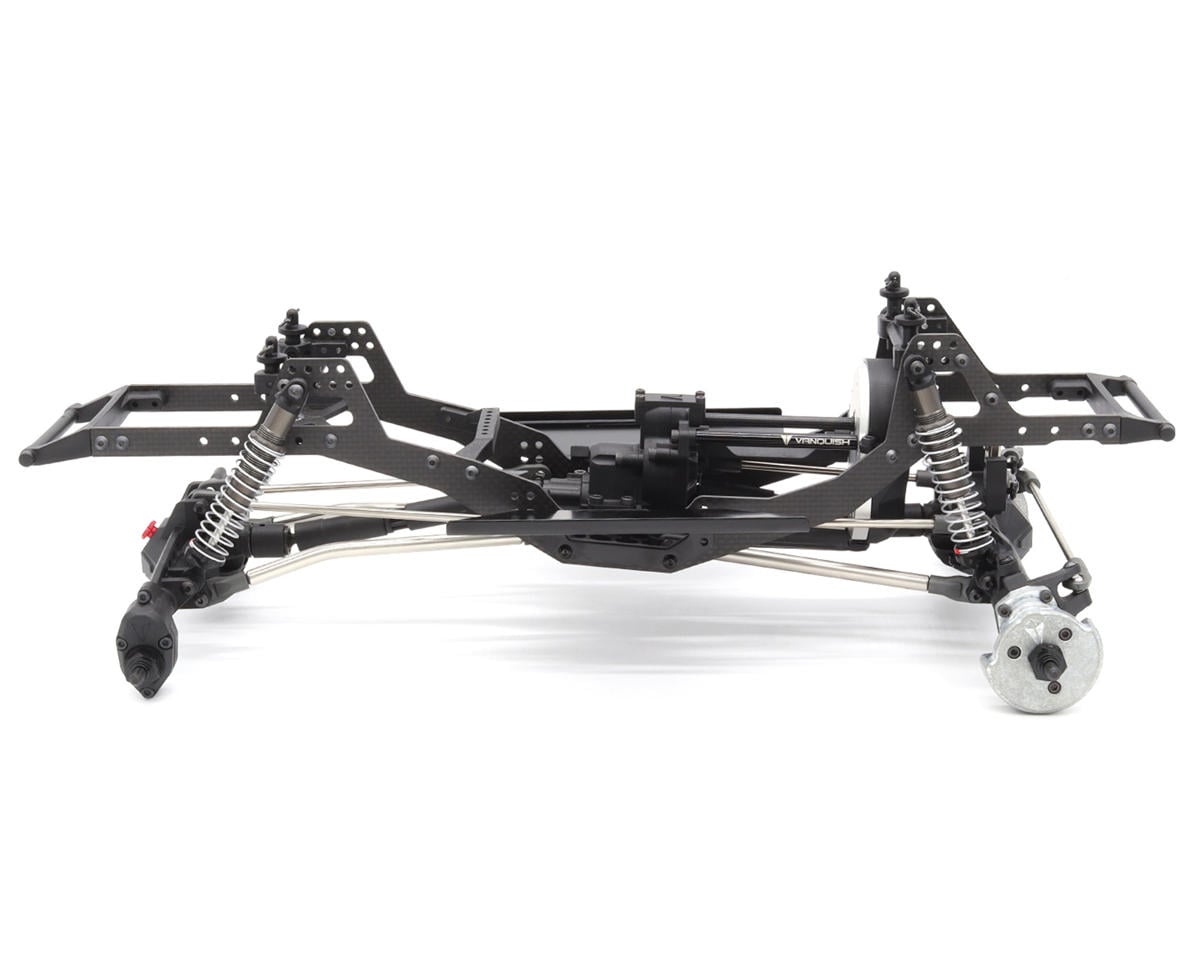

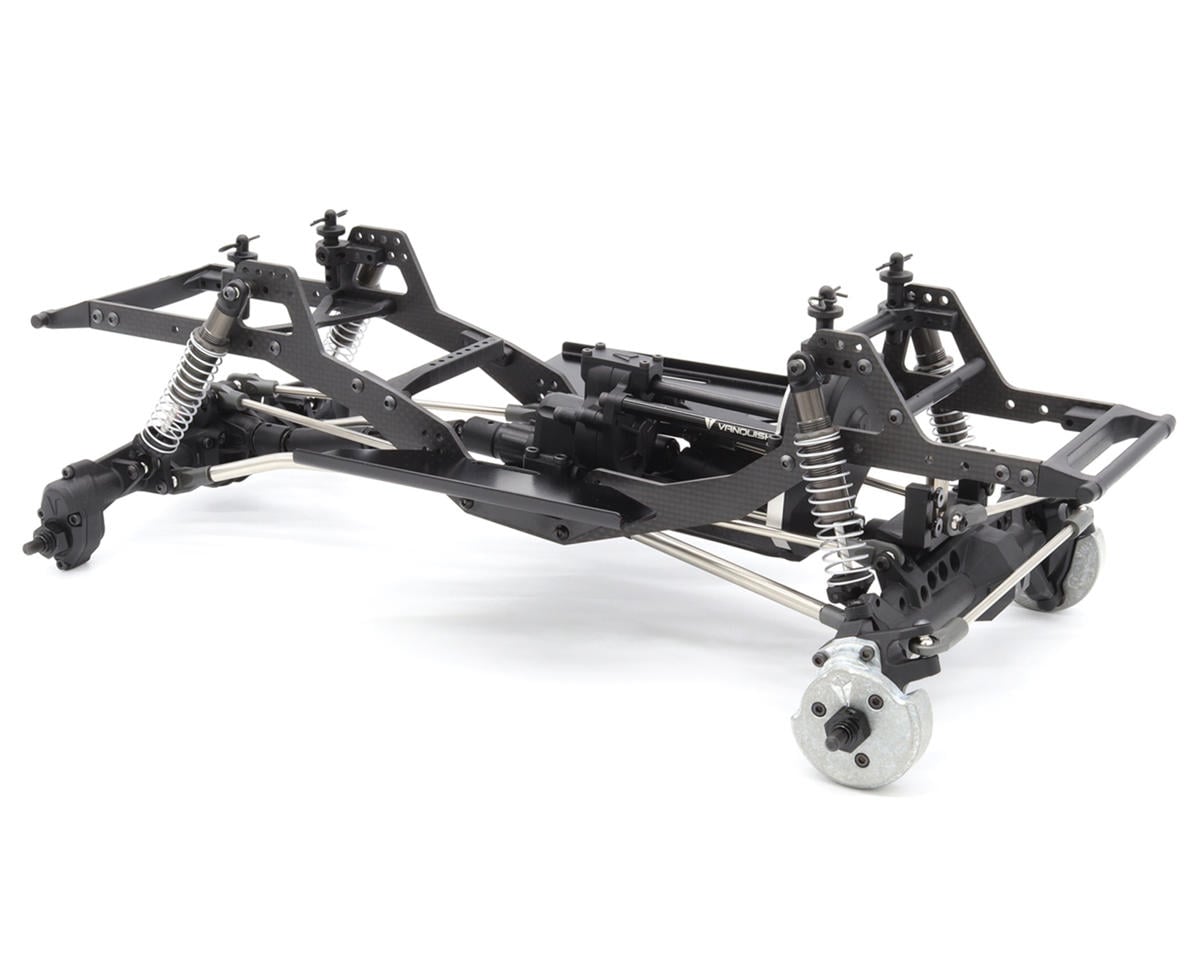

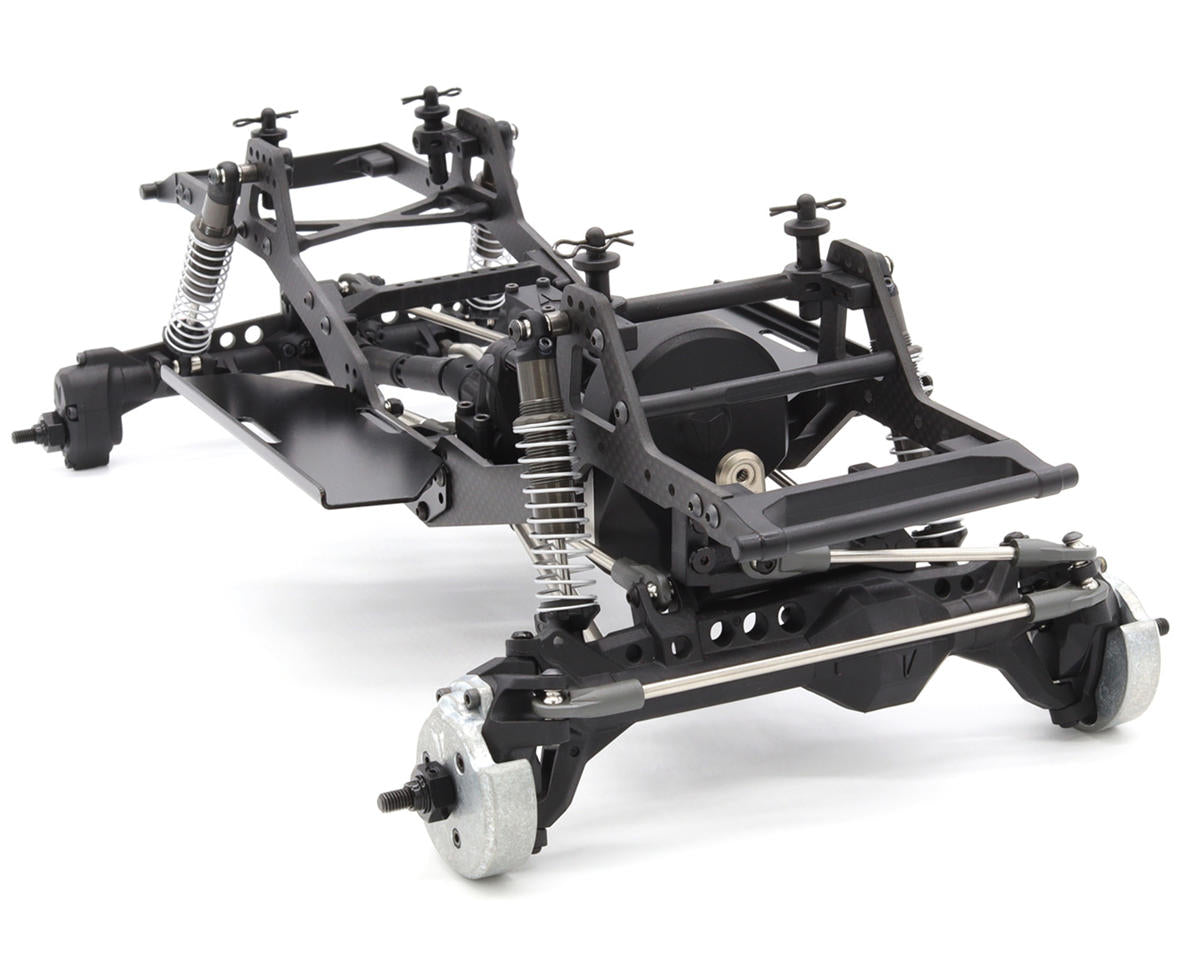

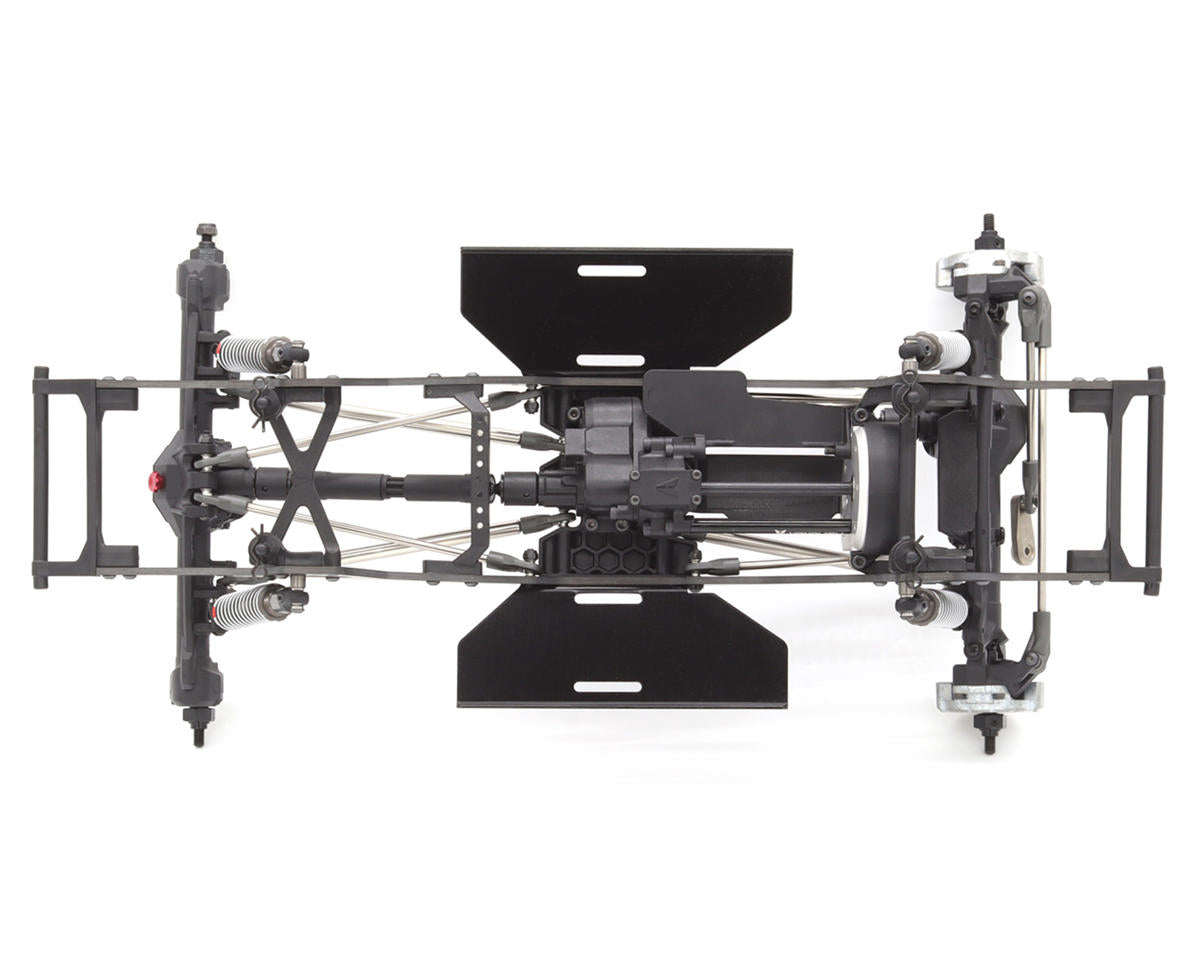

Vanquish Products VRD Carbon 1/10 Competition Rock Crawler Kit

The Vanquish Products VRD Carbon 1/10 Competition Rock Crawler Kit is a performance-focused platform with carbon fiber frame rails, a 6-degree flat skid plate, F10 portal axles, and a lightweight spec VFD transmission. Its adjustable suspension and multi-point mounting options allow setup changes for different crawling environments.

Features

• 3mm thick matte finish carbon fiber frame rails with 6-degree flat skid plate

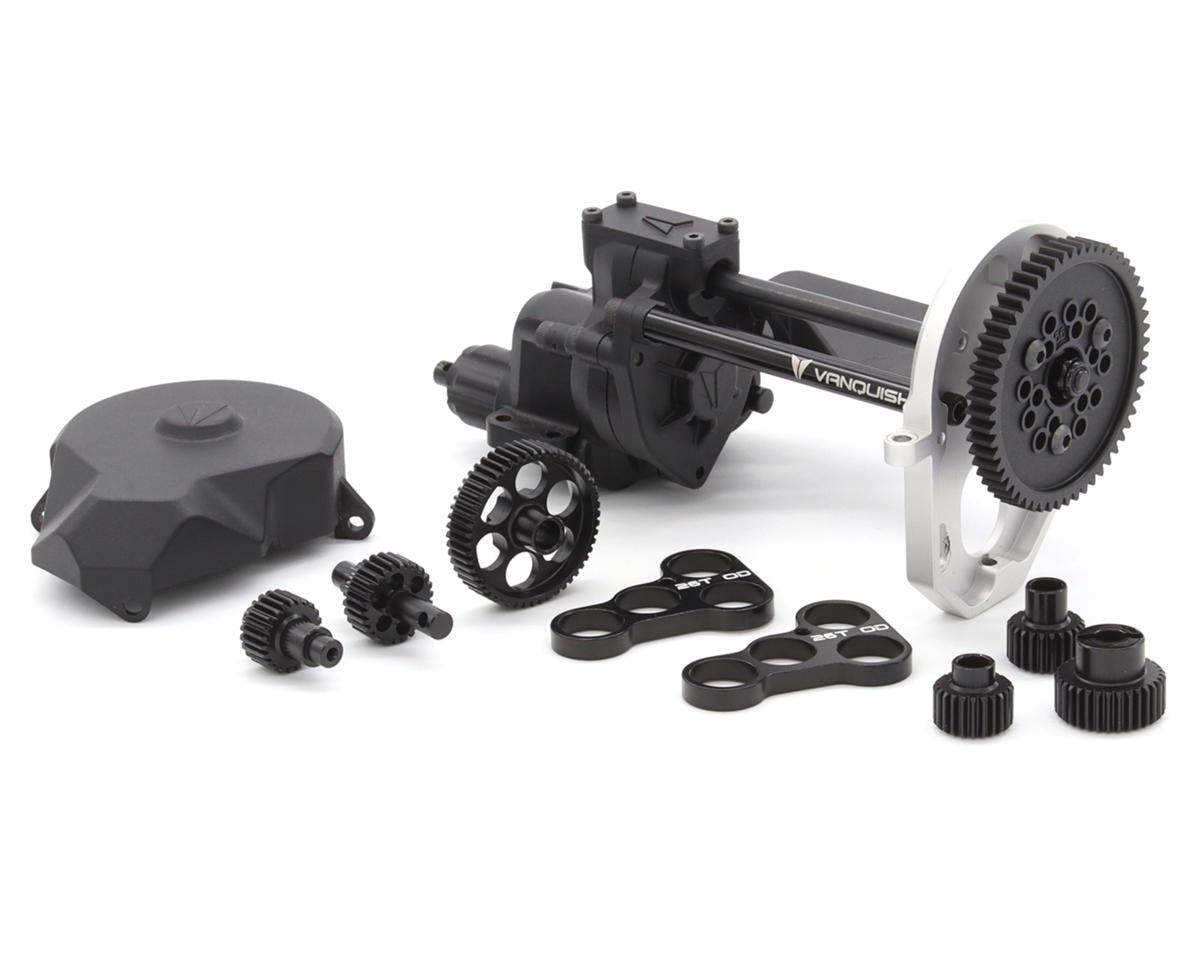

• Lightweight spec VFD transmission with machined aluminum motor plate and chromoly gears

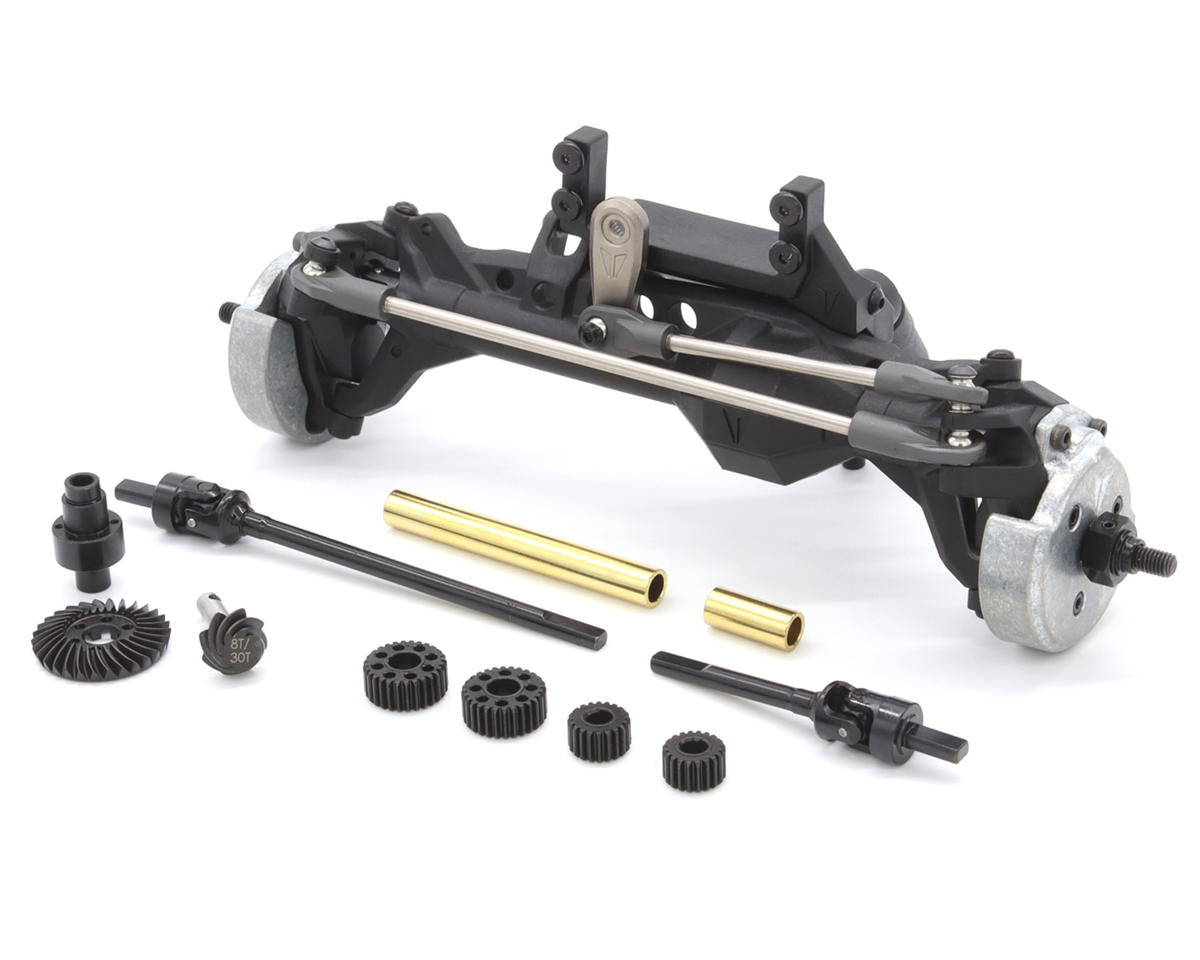

• F10 portal axles with front overdrive axle gears
• Chromoly universal axle shafts
• Incision S8E shocks with hard-anodized shock bodies
• Stainless steel links with HD bent rear links
• Weighted brass tube inserts in the front and rear axles
• Aluminum rock sliders
• Adjustable multi-point body mounting system
• 25T spline 20mm servo horn included

Specifications

• Scale size: 1:10 Scale
• Width: 7.87"in (200mm)
• Wheelbase: 12.67"in (322mm)
• Front axle ratio: 5.25:1
• Overall front ratio: 46.5:1
• Rear axle ratio: 6.25:1
• Overall rear ratio: 68:1
• Final overdrive: 37%
• Completion level: Kit*

Includes

• VRD Carbon 1/10 Competition Rock Crawler Kit
• 25T spline 20mm Servo Horn
• Instruction Manual

Needed to Complete

• 3+ Channels Transmitter/Receiver system
• Compatible steering servo
• ESC (Electronic Speed Controller)
• 540 size motor
• 2-4S (7.4V - 22.2V) LiPo Battery (35x35x100mm) or smaller
• Compatible battery charger
• 4x 1.9 Wheels (Vanquish Products or SLW Hub Compatible wheels required)
• 4x 1.9x4.75" Tires (recommended)
• Comp Style Body
• Assembly tools and polycarbonate paint

*Note: RC Kits are unassembled remote control models that require assembly, electronics, and other provided items. Photos of the assembled kit are for illustrative purposes only. Two 22mm screws are mixed into the 20mm screws in the hardware bag; use the 22mm screws for the rear upper shock mounts.
