Vanquish Products VFD Twin Transmission Kit

The Vanquish Products VFD Twin Transmission Kit combines a forward, low-mounted motor position with selectable overdrive and three-position rear dig. Its twin-shifting transfer case uses replaceable bearing plates, a brass pivot for the shift arms, and chromoly shift slides.

Features

• Selectable overdrive with 6.5% standard overdrive and 33% high overdrive
• Overdrive neutral position for 2WD by disengaging the front output
• Three-position dig
• Slipper clutch

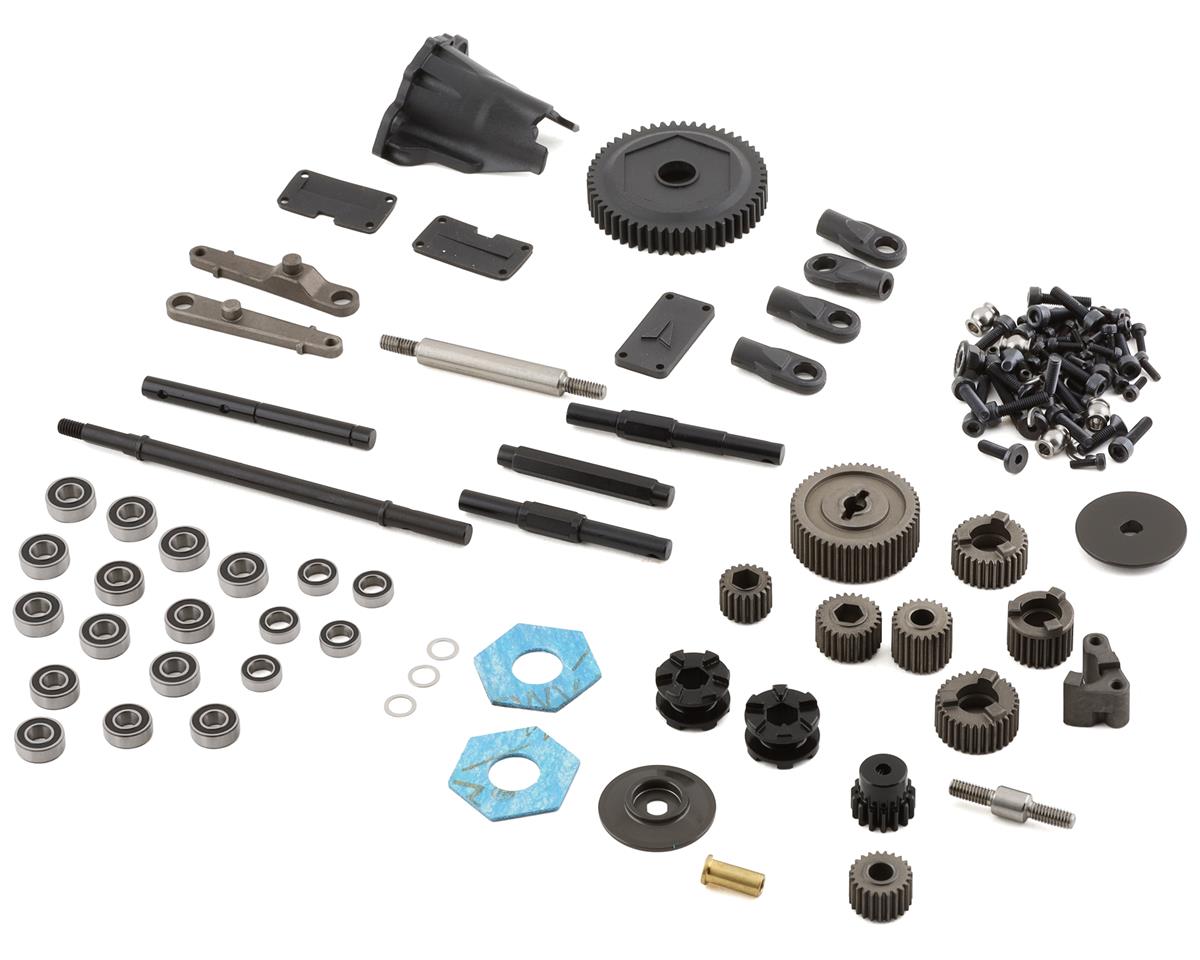

• Sintered internal gears
• Hardened chromoly shafts
• Molded VFD Twin extended skid plate for motor protection
• Full ball bearing transmission
• Sintered shift arms with brass pivot shift bushing
• Chromoly slide dogs for overdrive and dig shifting
• Scale molded transmission housing

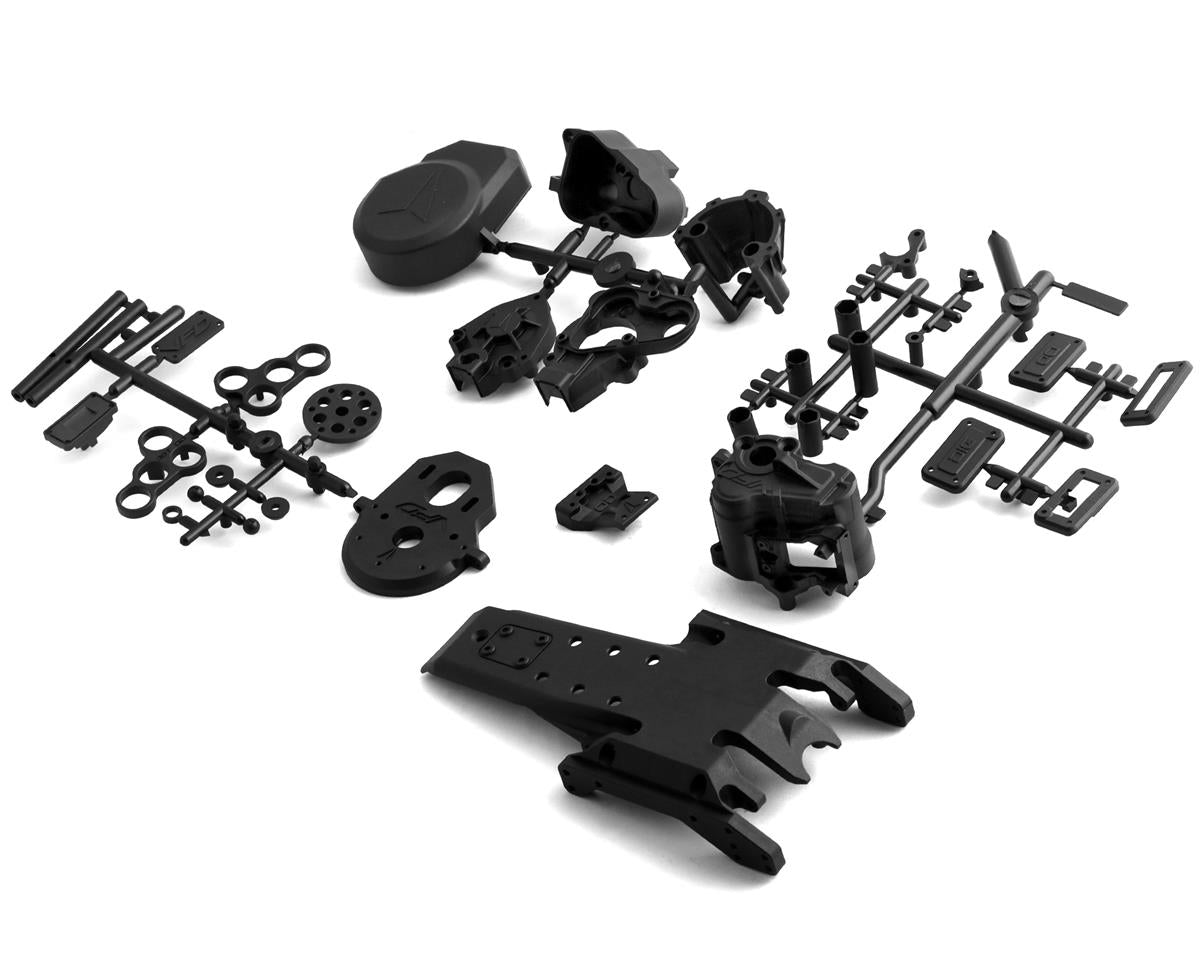

• Molded bearing plates, 6mm motor plate, and spur gear cover
• 32P 52T spur and 15T steel pinion
• Silicone dust shields for shift arms

Compatibility and Notes

Fits most 540 brushed and brushless motors. The transmission dust shield is not 100% element proof; use the access cover to regularly check the transmission for debris and add grease as needed. Overdrive percentages are calculated based on the VS4-10 Phoenix Portal final drive ratios, using Percent Difference.

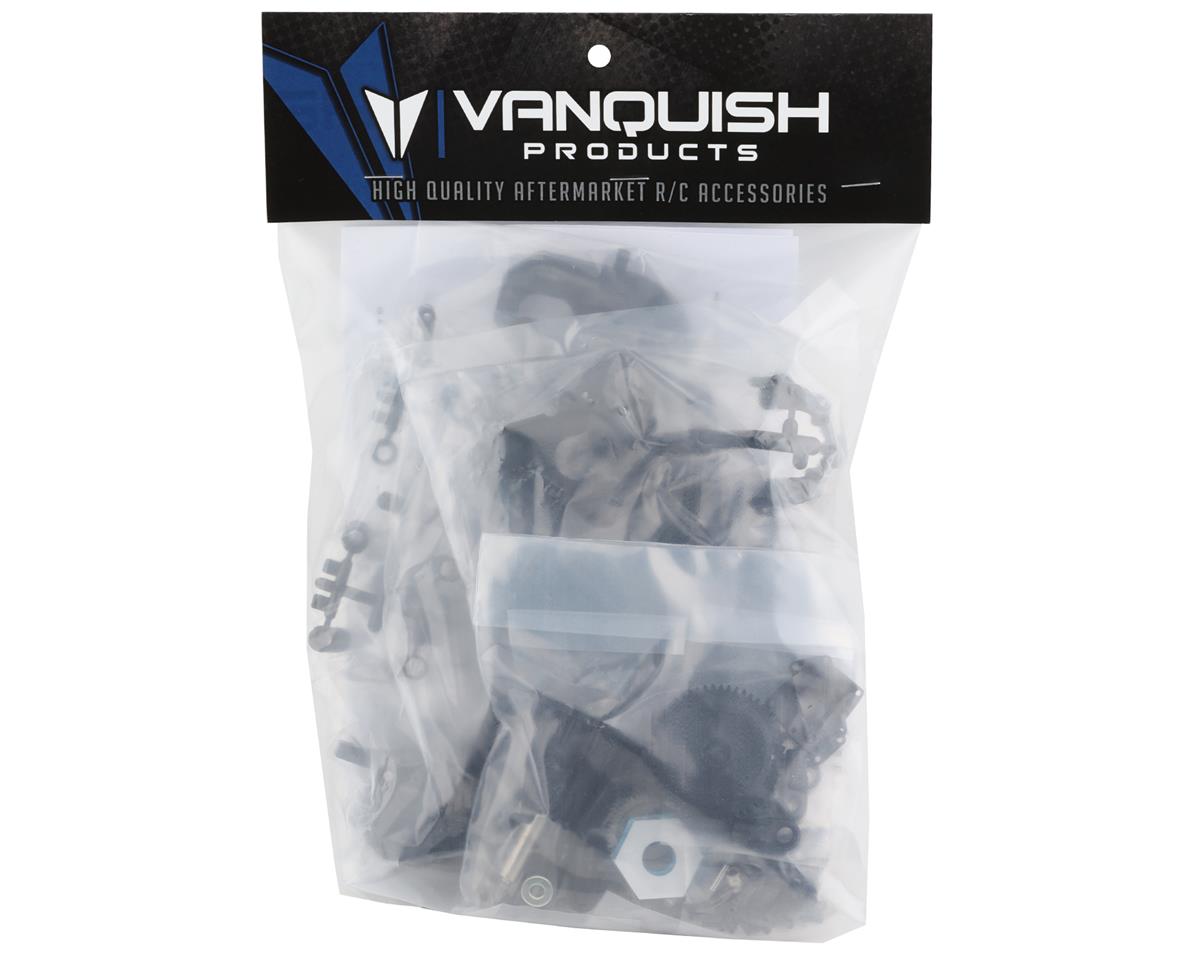

Includes

• Complete transmission
• Stainless steel shift links and rod ends
• VFD Twin Skid plate VPS10201
• Mounting hardware to skid plate

Recommended For Use With

• VPS10130 VS4-10 Chassis Kit
• VPS10129 Molded Battery and Electronic trays
• Offset front axles such as the F10 Portal or D44

Replacement spur gears: IRC00410, IRC00411
