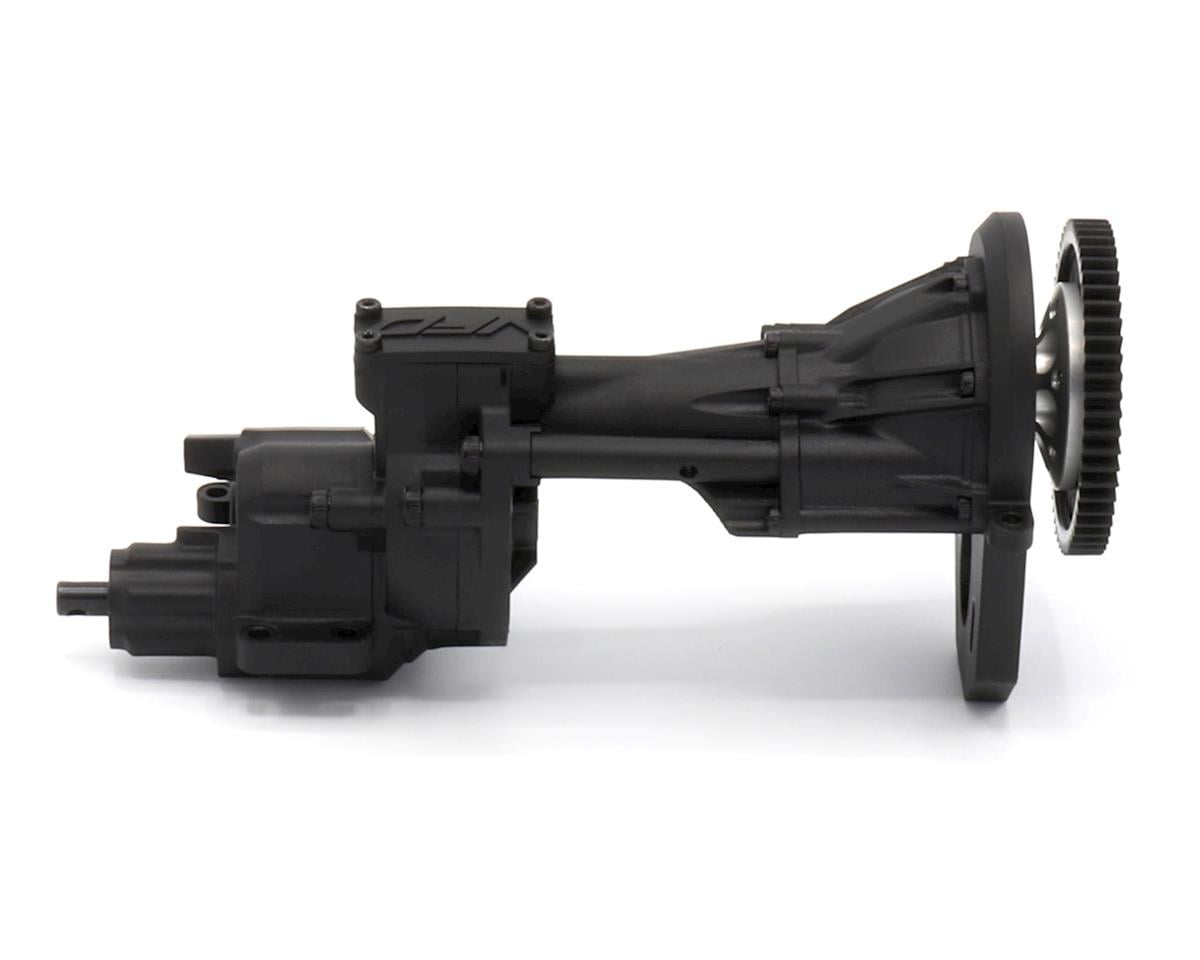

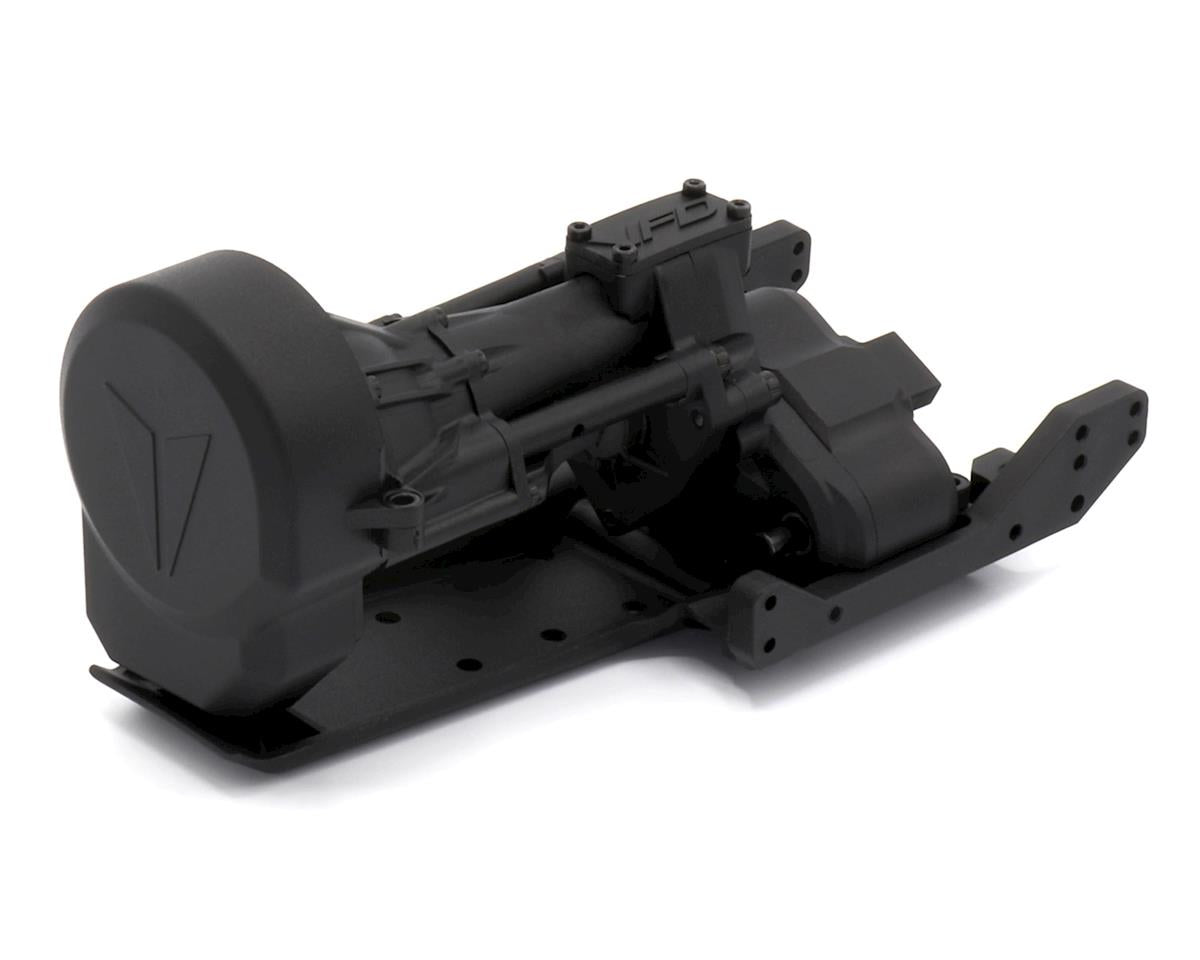

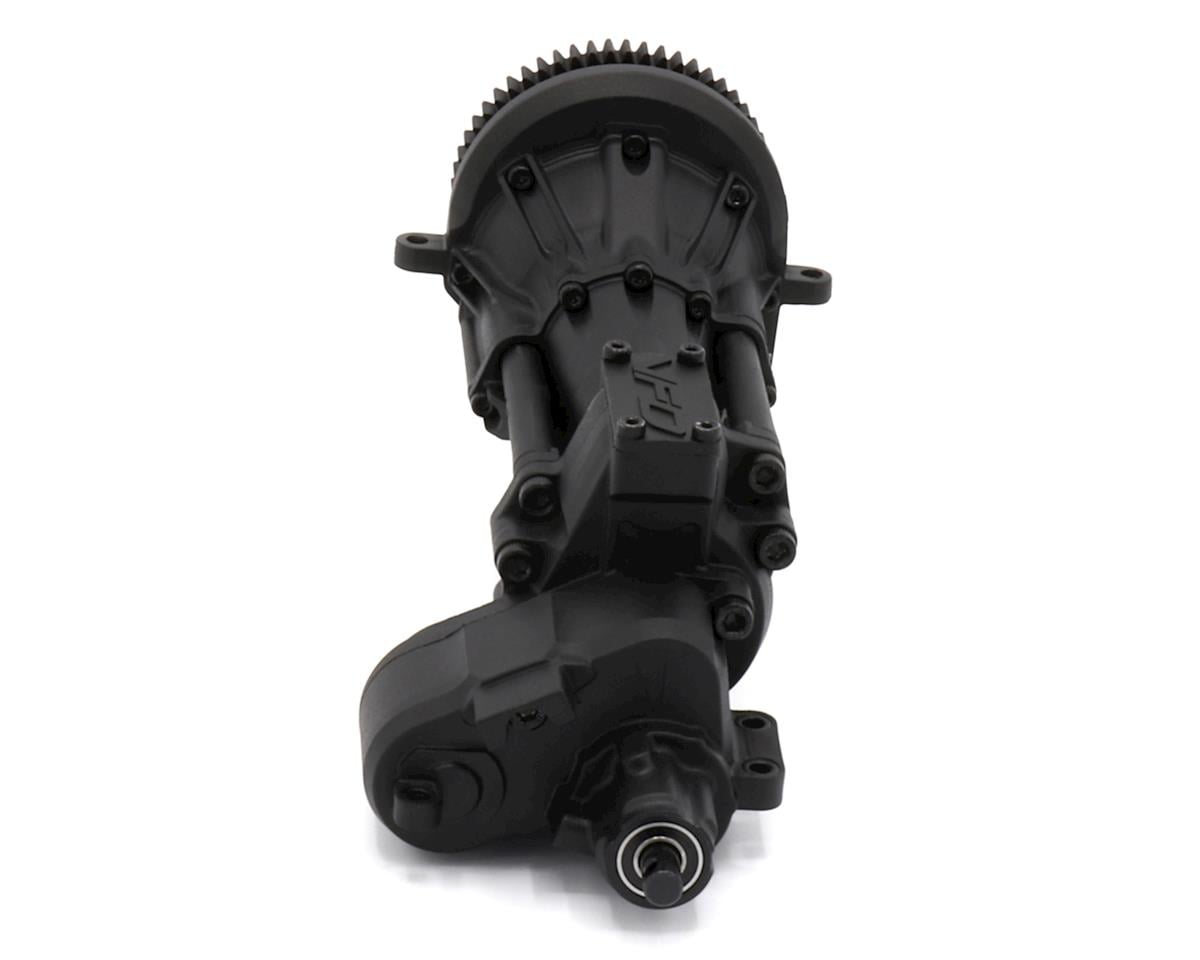

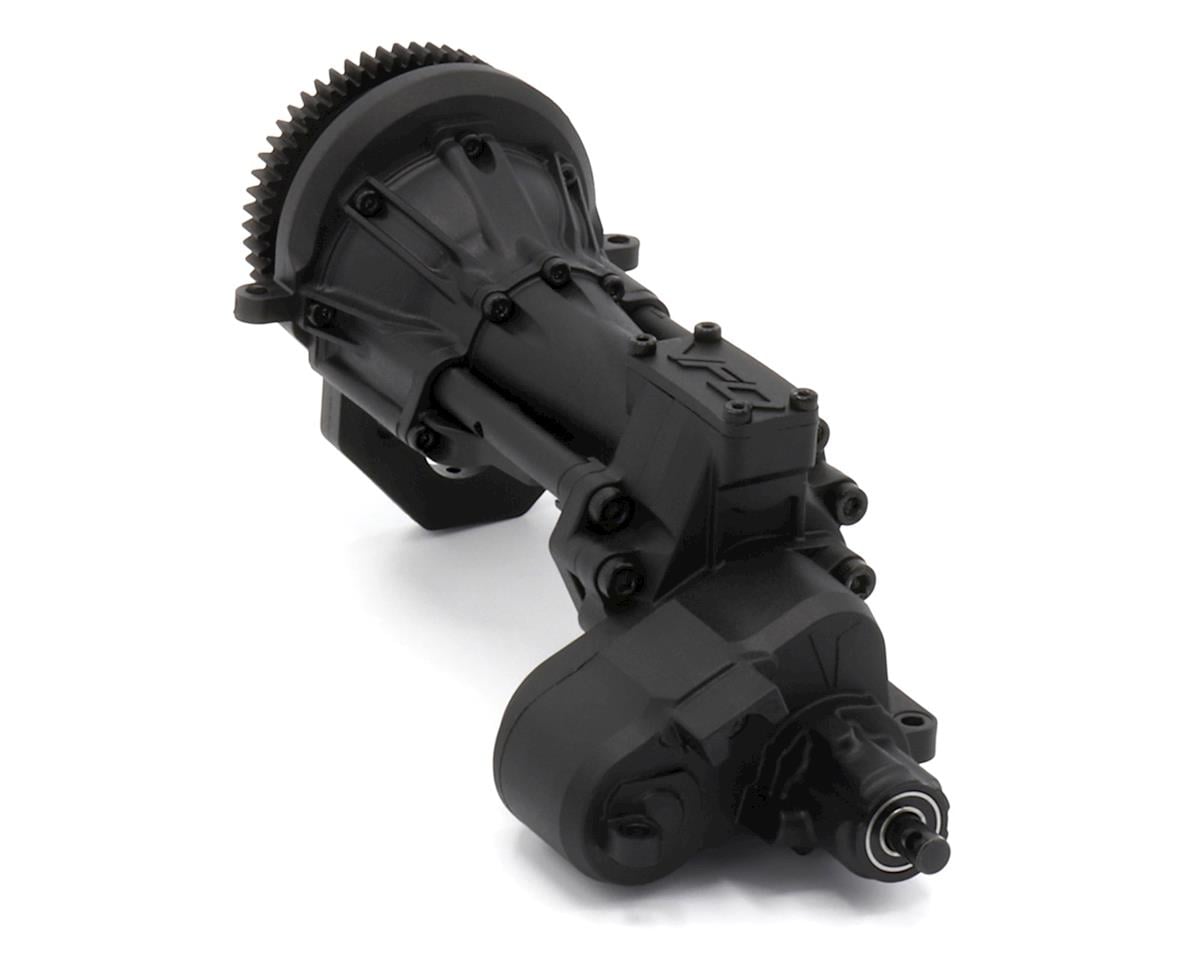

Vanquish Products VFD Transmission Kit

The Vanquish Products VFD Transmission Kit is designed for scale appearance, strength, and flexible accessory options. Its forward-mounted, low motor position helps keep weight low, while the transfer case uses replaceable bearing plates for adjustable bearing positioning and optional gear ratios.

Features

• Compatible with 540 brushed and brushless motors*
• Offset front output requires an offset front axle configuration
• Full ball-bearing transmission
• Hardened chromoly shafts and top shaft
• 32P 56T spur gear and 13T steel pinion with M4 set screw
• 6.5% overdrive gear set

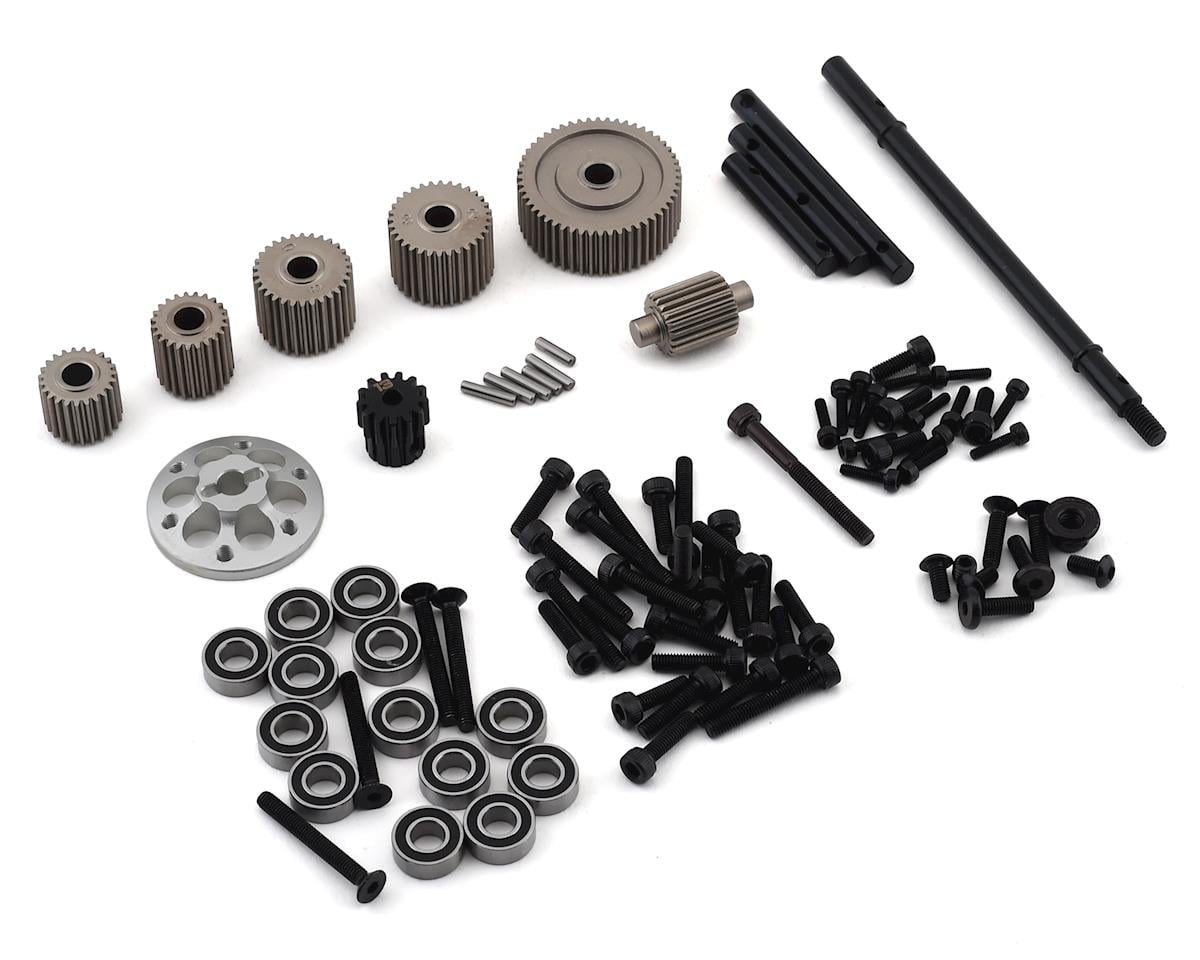

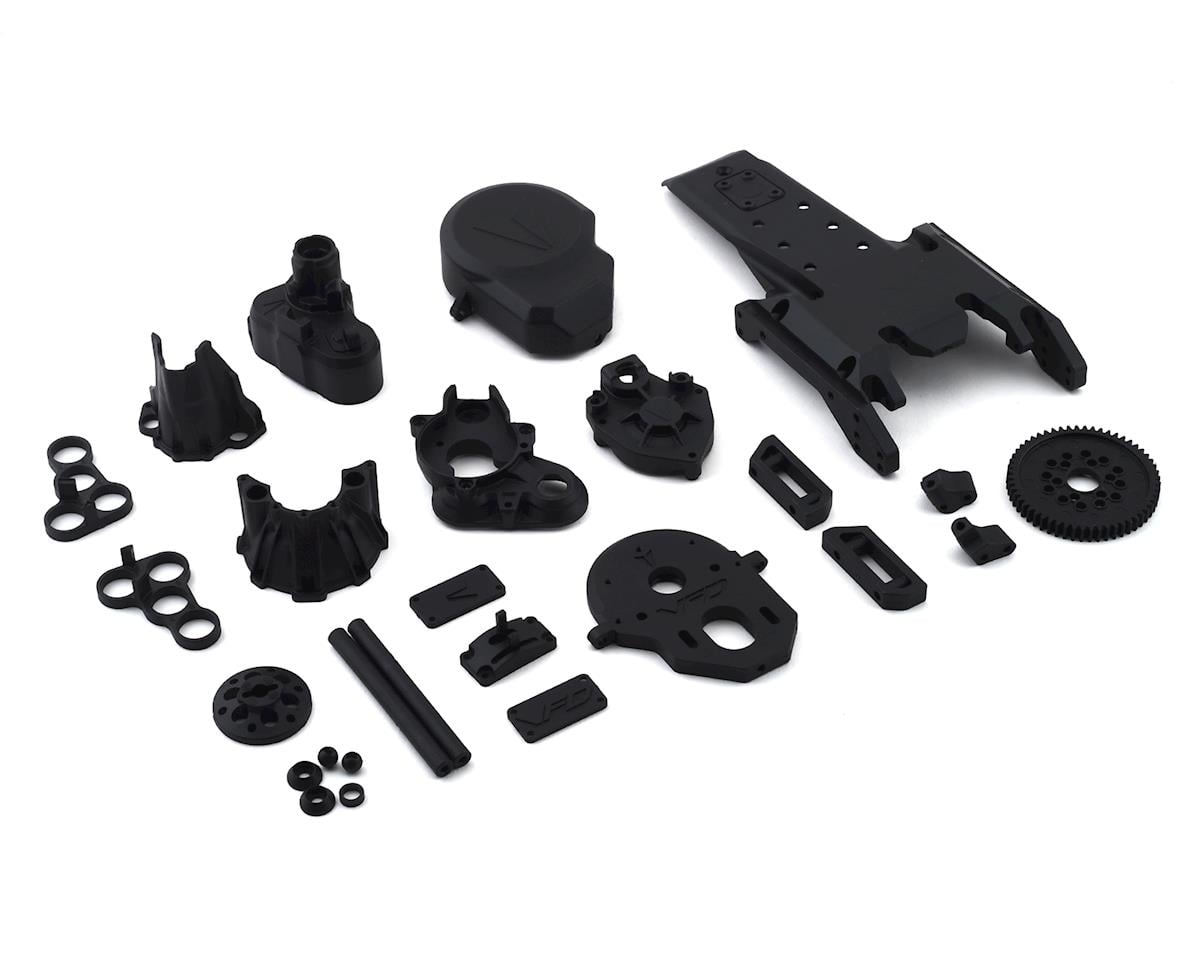

Includes

• Wide Profile Sintered Gears Overdrive Gear Set (6.5% OD)
• Hardened Chromoly Shafts
• Molded VFD Extended Skid Plate for Motor Protection
• Molded VFD Battery Tray Spacers for use with VFD Battery and Electronics Trays VPS10127
• Scale Molded Transmission Housing
• Molded Bearing Plates
• Molded 6mm motor plate
• Molded Spur Gear Cover
• Hardened Chromoly Topshaft with aluminum slipper eliminator
• Hardware for installation of VPS10127

Notes

• Motor designs can vary, and not all motors can be guaranteed to fit.
• Axles designed specifically for the VS4-10 are required to ensure proper clearances, such as VPS08370 and VPS08371.
• The VFD Transmission Kit fits the VPS10130 VS4-10 Chassis Kit but will interfere with the stock battery tray. Recommended use with VFD Battery and Electronics Tray Set VPS10127.
