Vanquish Products M4 Machined Straight Rod Ends (Silver) (4)

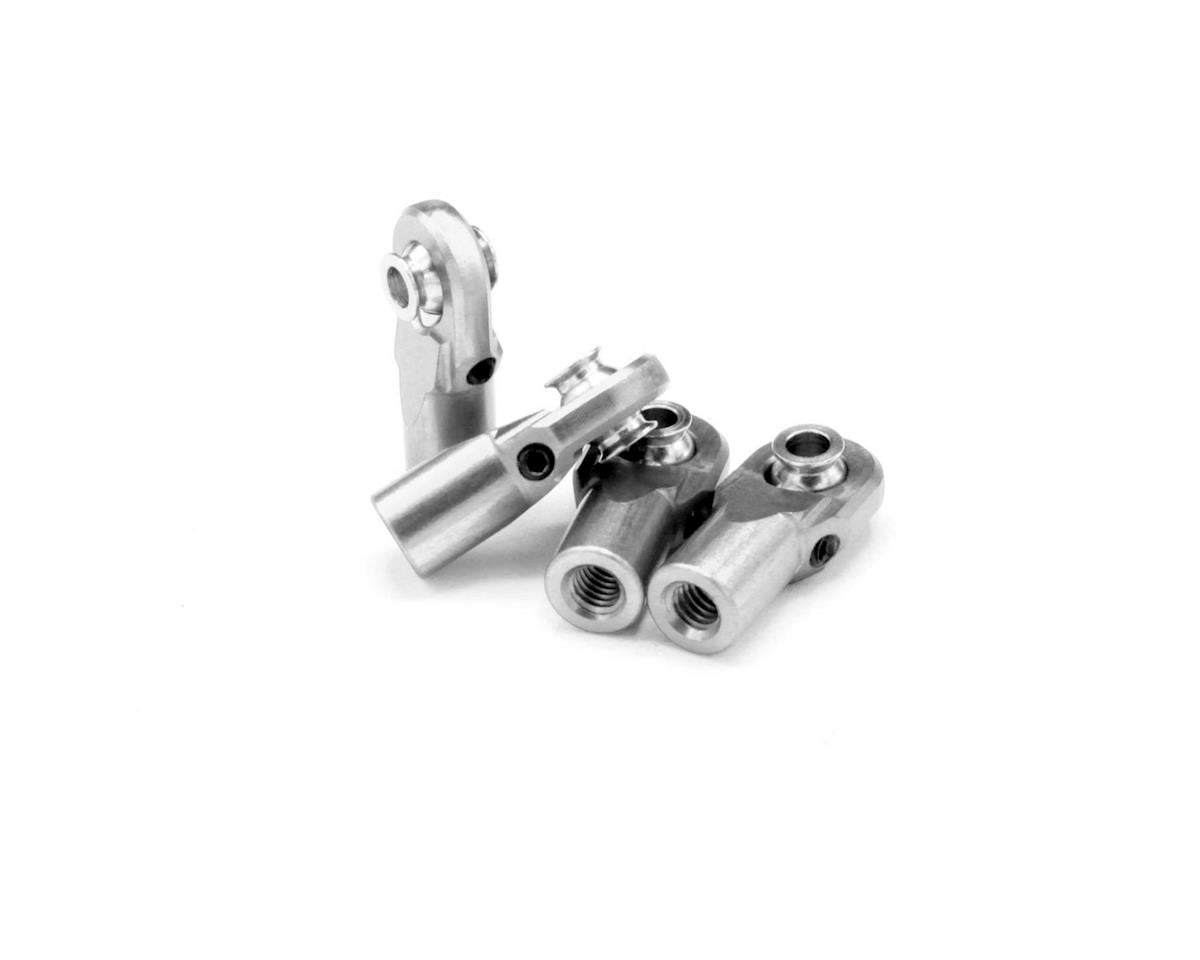

Vanquish Products M4 Machined Straight Rod Ends provide a rebuildable alternative to traditional molded rod ends. Their adjustable tension system uses an M2.5 set screw and tension set piece to retain the pivot ball, allowing adjustment as components wear.

These rod ends are designed to fit in place of Incision Rod Ends (IRC00010), keeping the overall assembled link length unchanged. The set is finished in silver and includes the components needed for assembly.

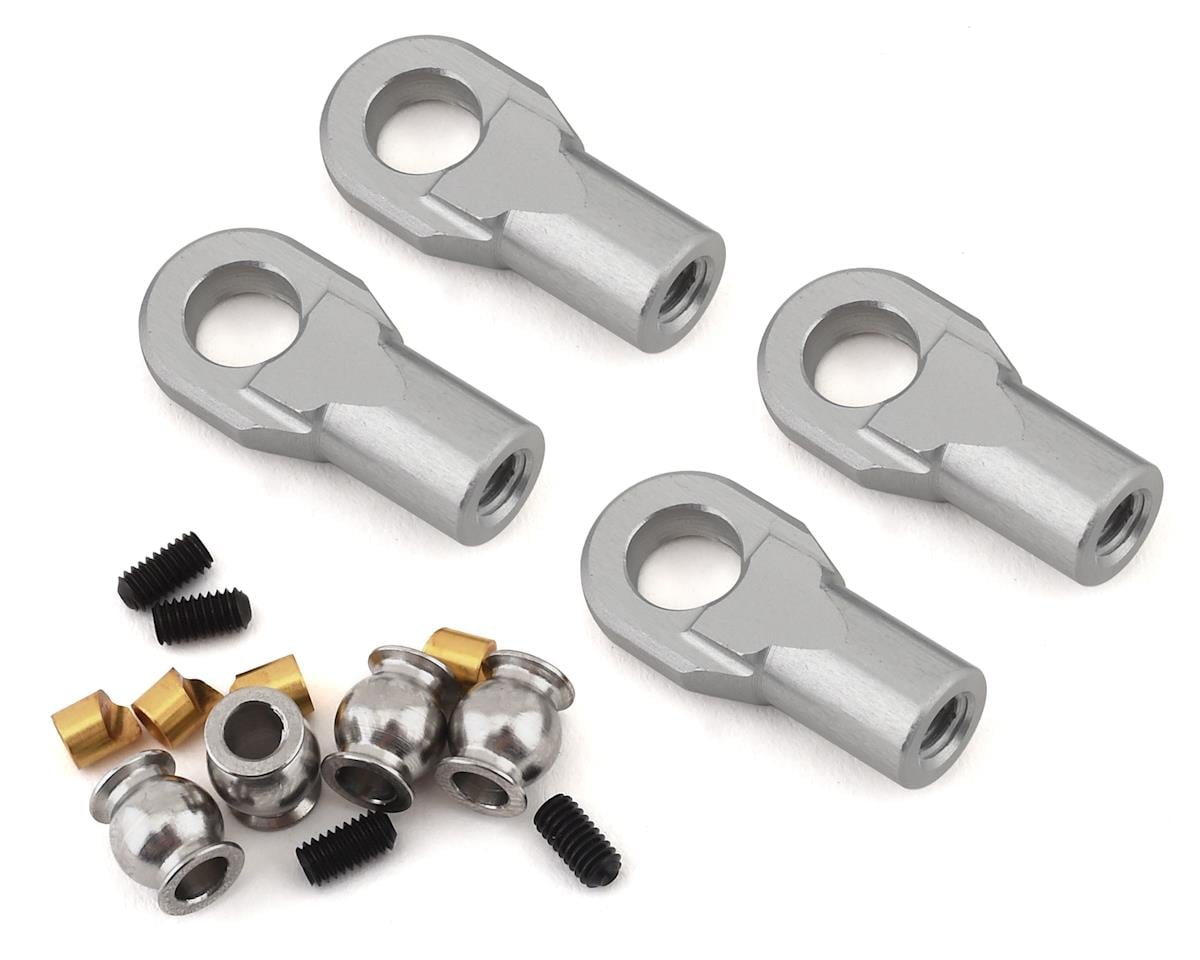

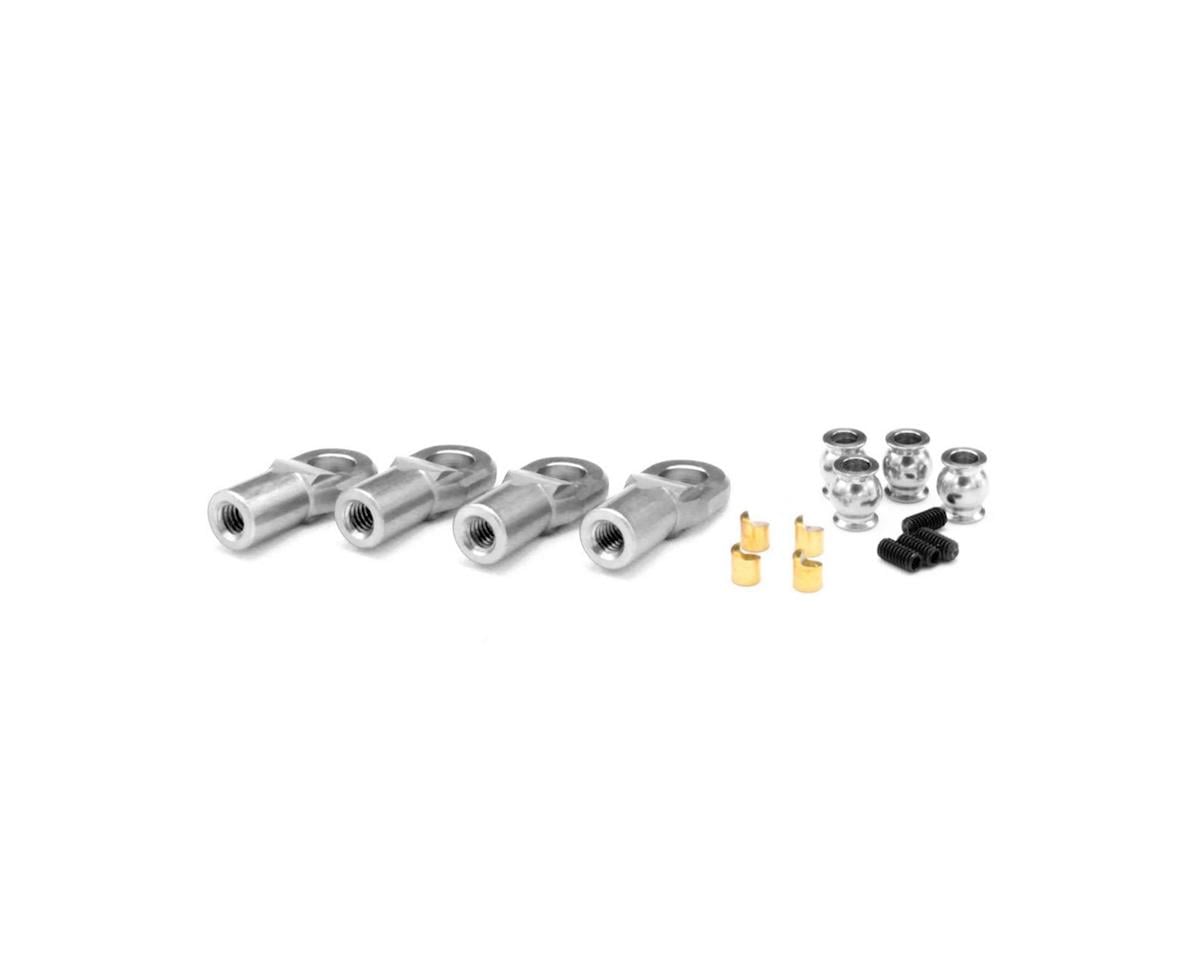

Included

• (4) Machined Rod Ends
• (4) Brass Tension Set Pieces
• (4) M2.5 Set Screws
• (4) Pivot Balls
• (1) Instructions

Assembly Notes

• A 0.05in driver is required for the M2.5 set screws.
• These rod ends may not cinch down and may still rotate slightly when installed due to differences between molded and machined rod ends.
• Use a small amount of thread lock on the M2.5 set screw. Excessive thread lock may make the screw difficult to remove.
• Thread lock is not needed on the M4 threads for installation onto the link.
• Patience is required during assembly because of the small components. Carefully inspect component orientation during setup.
• Not for use on links with reverse cut threads, including SCX10 III and Capra.
• Not recommended for extreme triangulated setups.
