Vanquish Products M4 Machined Straight Rod Ends (Black) (4)

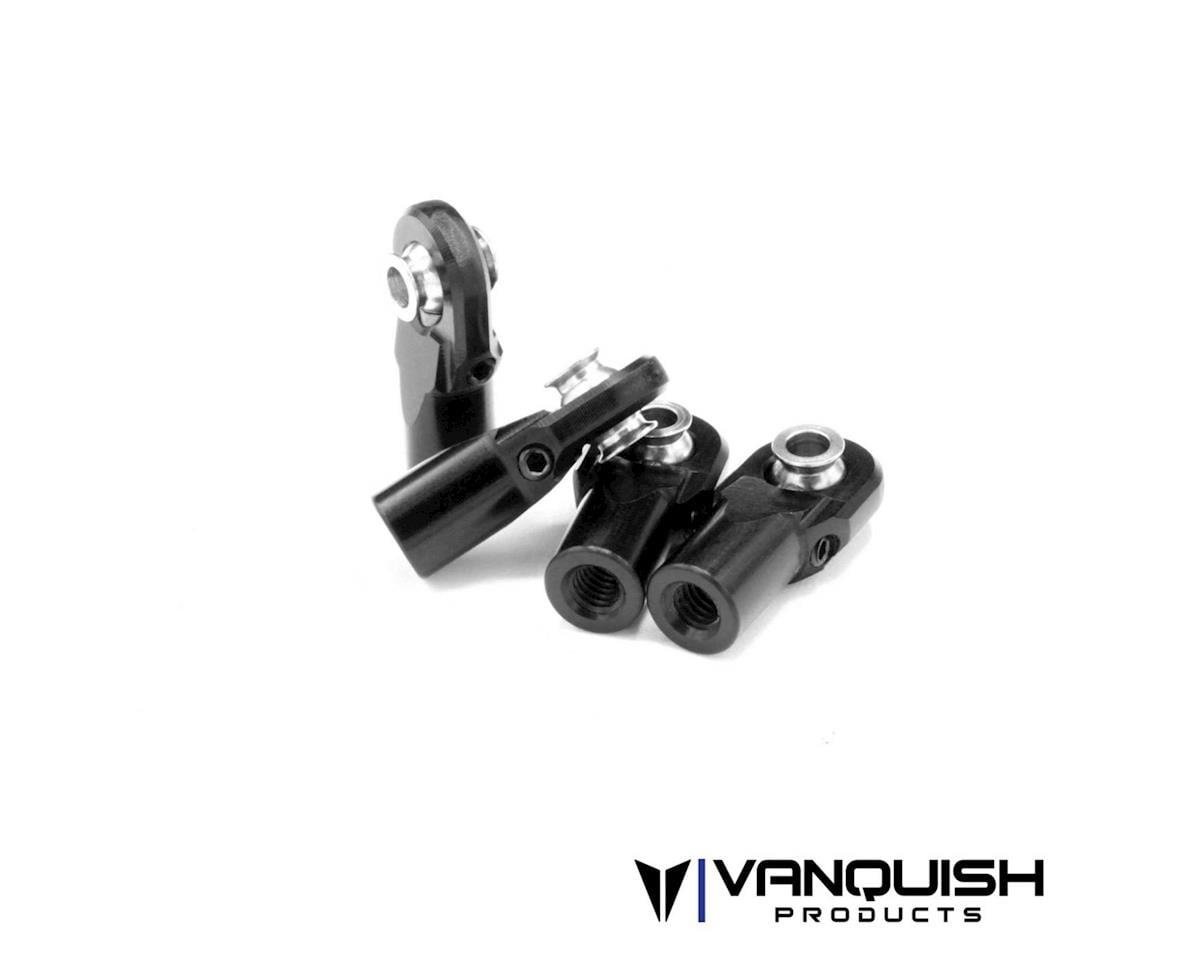

Vanquish Products M4 Machined Straight Rod Ends provide a rebuildable alternative to traditional molded rod ends. Designed to fit in place of Incision Rod Ends (IRC00010), they keep the overall assembled length of the link unchanged.

An adjustable tension system retains the pivot ball in each rod end. The M2.5 set screw applies pressure to the tension set piece, allowing tension to be readjusted as components wear.

Features

• Machined straight rod end design
• Adjustable pivot ball tension system
• Rebuildable design
• Black finish

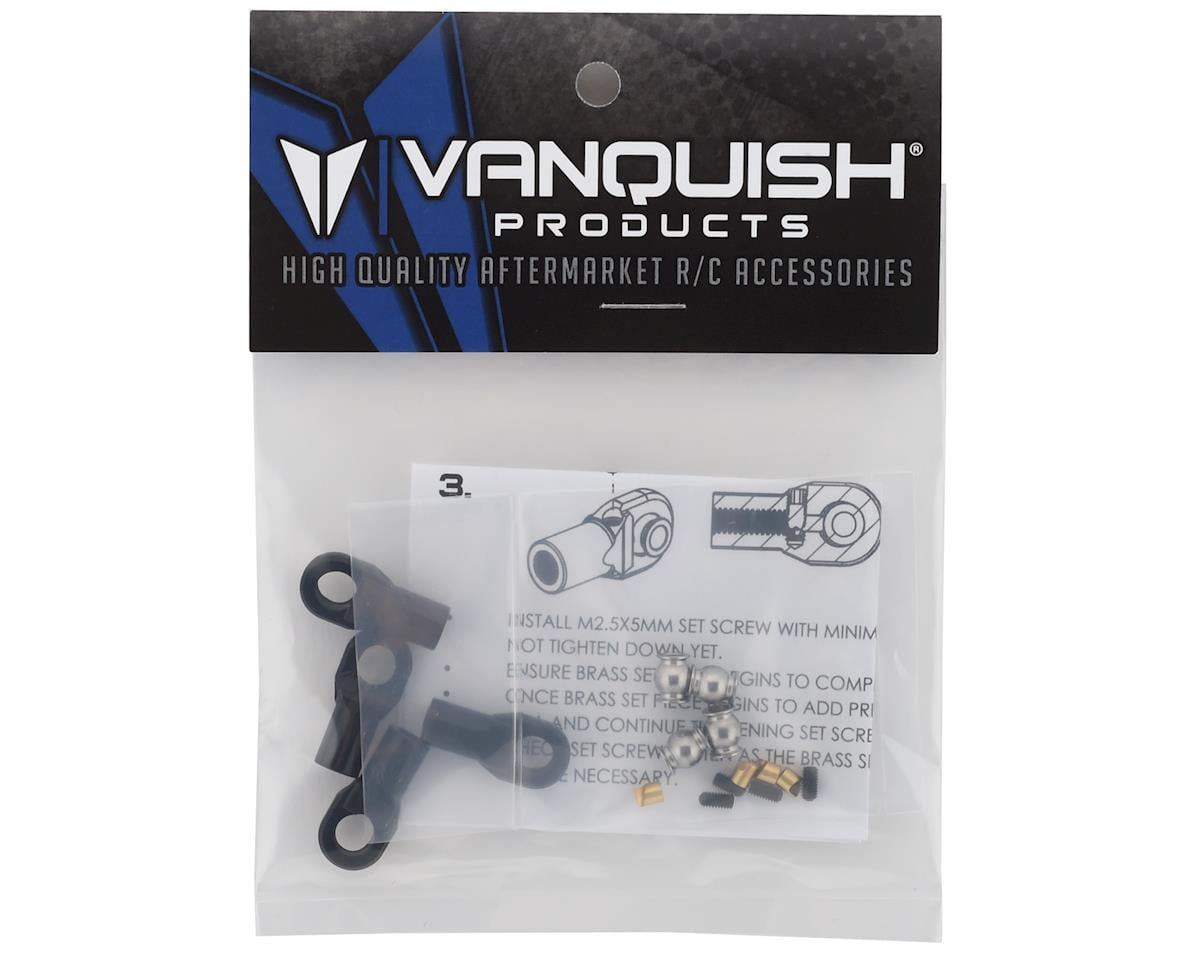

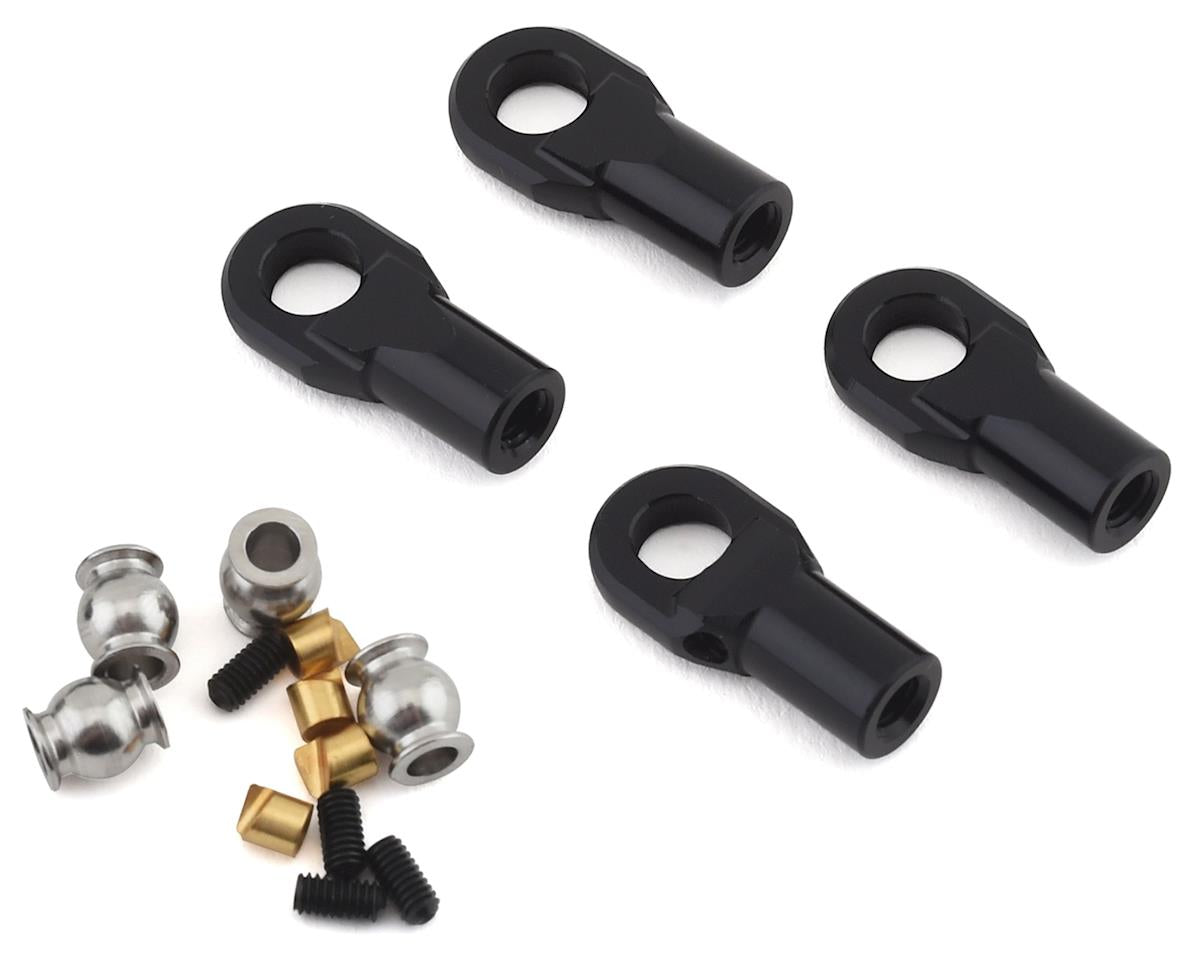

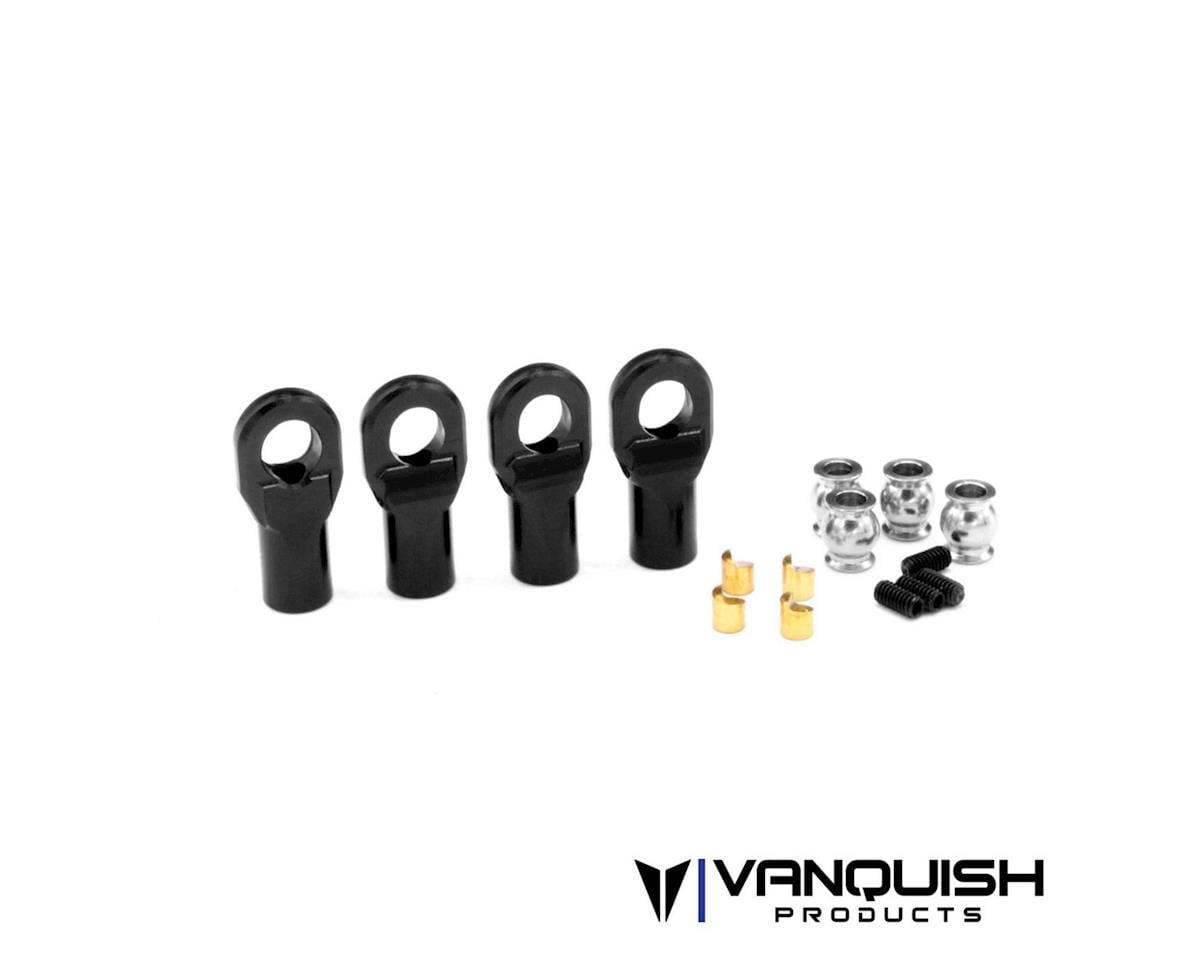

Includes

• (4) Machined Rod Ends
• (4) Brass Tension Set Pieces
• (4) M2.5 set screws
• (0.05in driver required)
• (4) Pivot Balls
• (1) Instructions

Assembly Notes

• Due to differences between molded and machined rod ends, the rod ends may not cinch down and may still rotate slightly when installed.
• Use a small amount of thread lock on the M2.5 set screw. Excessive thread lock may make the screw difficult to remove.
• Thread lock is not needed on the M(4) threads for installation onto the link.
• Patience is required during assembly because of the small components. Carefully inspect component orientation during setup.
• Not for use on links with reverse cut threads, including SCX10 III and Capra.
• Not recommended for extreme triangulated setups.
