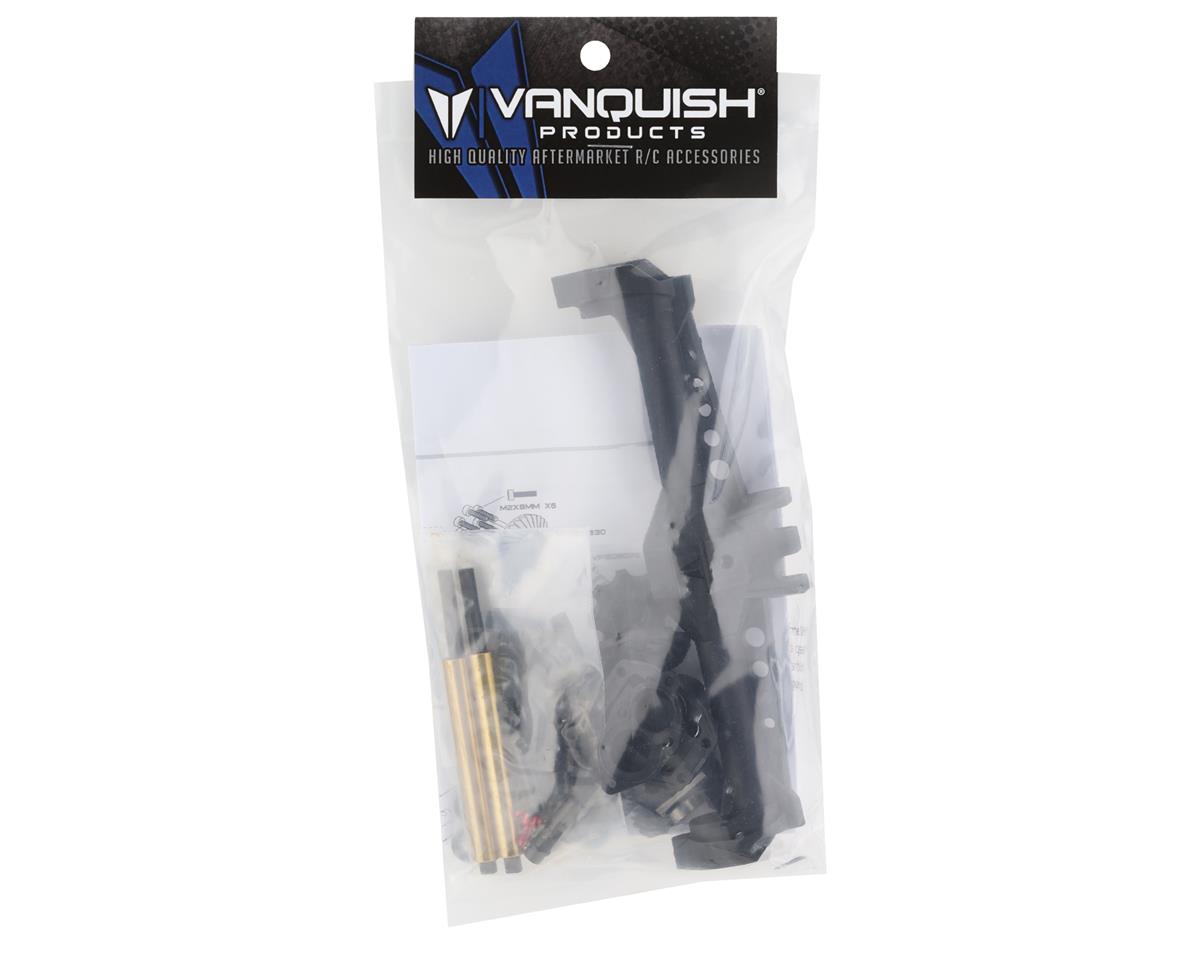

Vanquish Products F10 Portal Rear Axle Set

The Vanquish Products F10 Portal Rear Axle Set features a rigid molded plastic housing with an integrated truss, brass tube inserts, and a range of tuning and mounting options for compatible builds.

Features

• Molded plastic axle housing with integrated truss
• Two upper link mount tuning positions
• Machined Chromoly portal gears (VPS08353)
• High-pinion hypoid machined axle gears 30/8 (VPS08330)
• 6-bolt ring gear and spool
• 1.4:1 portal gear ratio (VPS08353)
• 6mm output shafts with M5 wheel nut
• One-piece molded bearing retainers
• Adjustable lower shock mounting position with S8E offset pivot ball (IRC00509)
• Chromoly axle shafts and brass tube inserts
• Scale removable third member
• Machined aluminum red anodized rear fill cap with molded install tool

Compatibility and Options

• Compatible with all Vanquish SLW and Incision hubs
• Incision .280" width pivot ball compatible
• For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations
• To add overdrive in the portal gears, install VPS08354 standard portal gears in the rear axle
• To add overdrive in the ring and pinion, install VPS08331

Recommended Components

• VPS10130 VS4-10 Chassis Kit
• INCIRC00303 VS4-10 F10 Link Set
• VPS10152 VFD Transmission Kit

Note: The M5 wheel nut requires tool IRC00142 or VPS08440. Link mounting hardware is not included.
