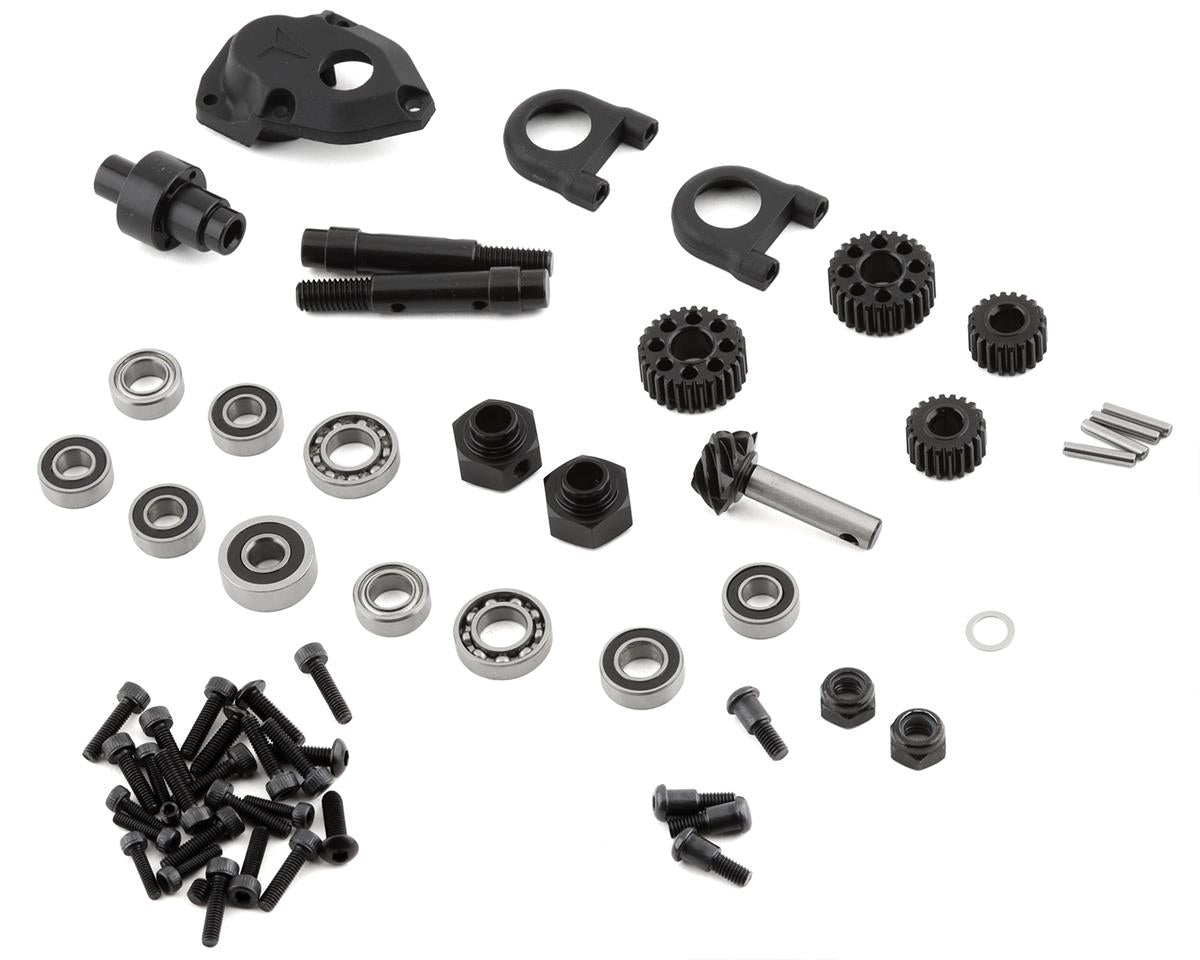

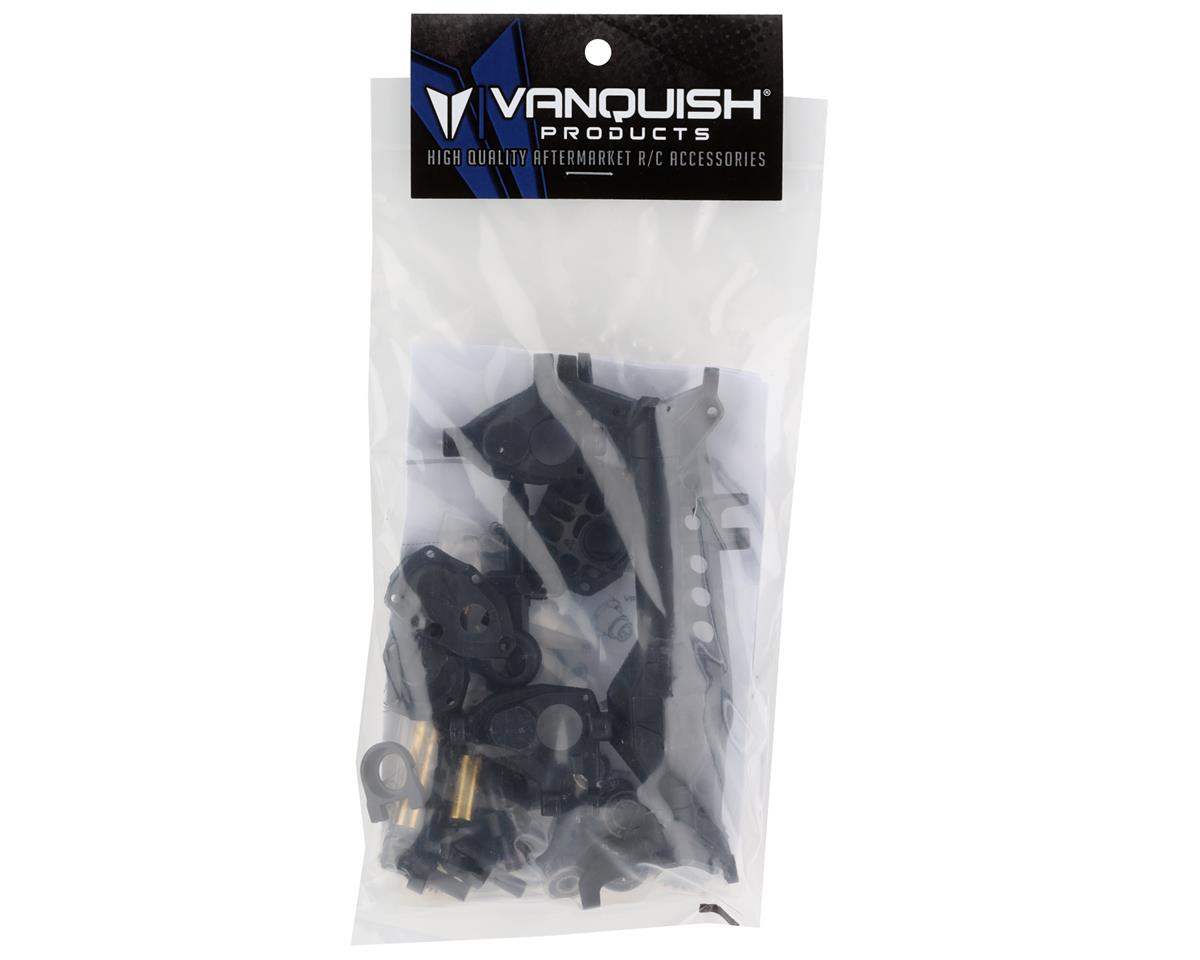

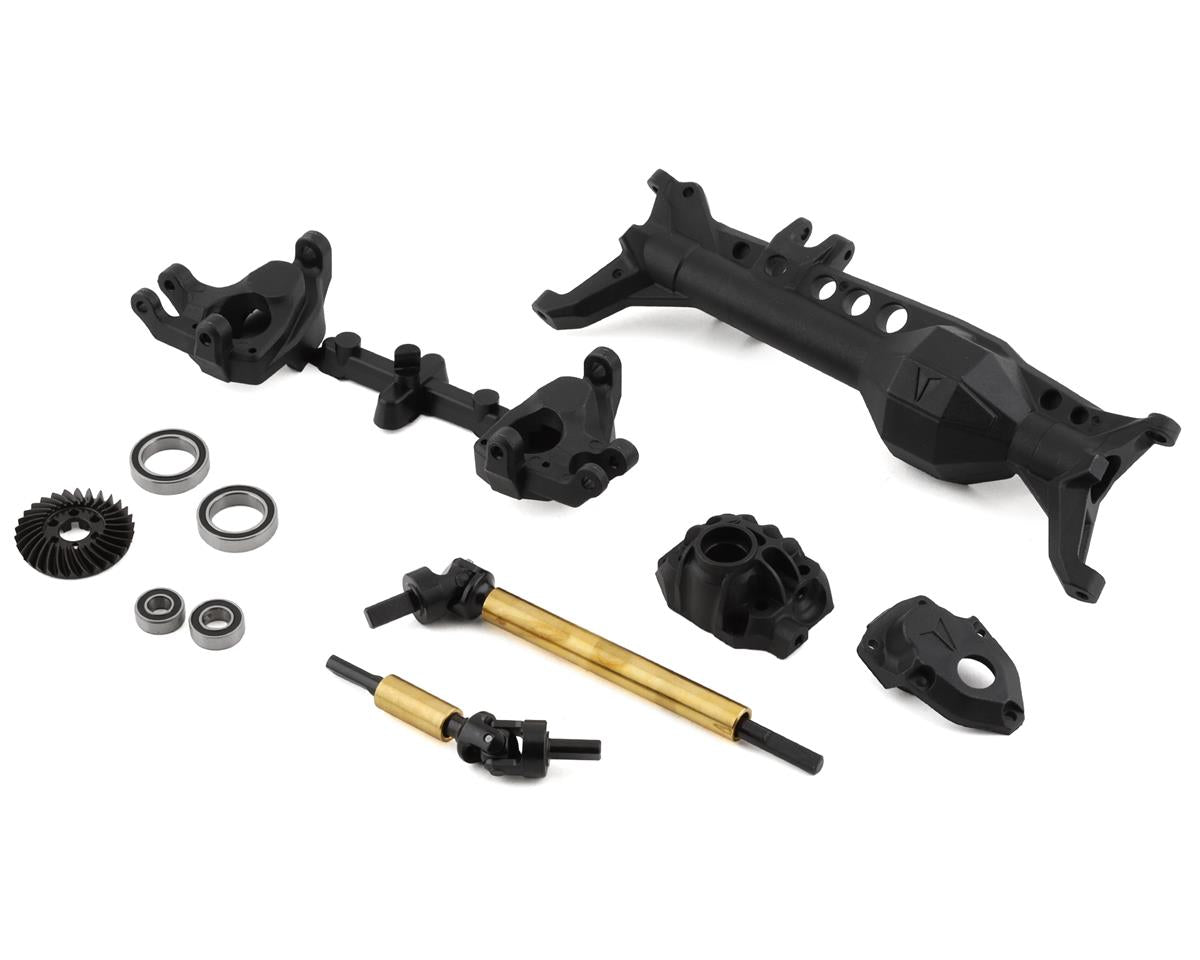

Vanquish Products F10 Portal Front Axle Set

The Vanquish Products F10 Portal Front Axle Set uses a rigid molded plastic housing with an integrated truss, brass tube inserts, and portal gearing. It features 49 degrees of steering, high caster reinforced C-hubs, a high-pinion hypoid gear set, and a scale removable third member.

Features

• Molded plastic axle housing with integrated truss
• Machined chromoly portal gears (VPS08353)
• Universal style axle shafts
• 49 degrees of steering
• High caster reinforced C-hub
• High-pinion hypoid machined axle gears, 30/8 (VPS08330)
• 6-bolt ring gear and spool
• 1.4:1 portal gear ratio (VPS08353)
• 6mm output shafts with M5 wheel nut
• One-piece molded bearing retainers
• Adjustable lower shock mounting position using the S8E offset pivot ball (IRC00509)
• Chromoly universal shafts
• Brass tube inserts
• Scale removable third member
• Incision .280" width pivot ball compatible

Compatibility and Notes

• Compatible with all Vanquish SLW and Incision hubs.
• For use with Phoenix, Ultra, Pro, and SCX10II Bent steering tie rod.
• For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations.
• Does not include link mounting hardware.
• The M5 wheel nut requires tool IRC00142 or VPS08440.
• To add overdrive in the portal gears, install VPS08354 standard portal gears in the rear axle.
• To add overdrive in the ring and pinion, install VPS08331.
