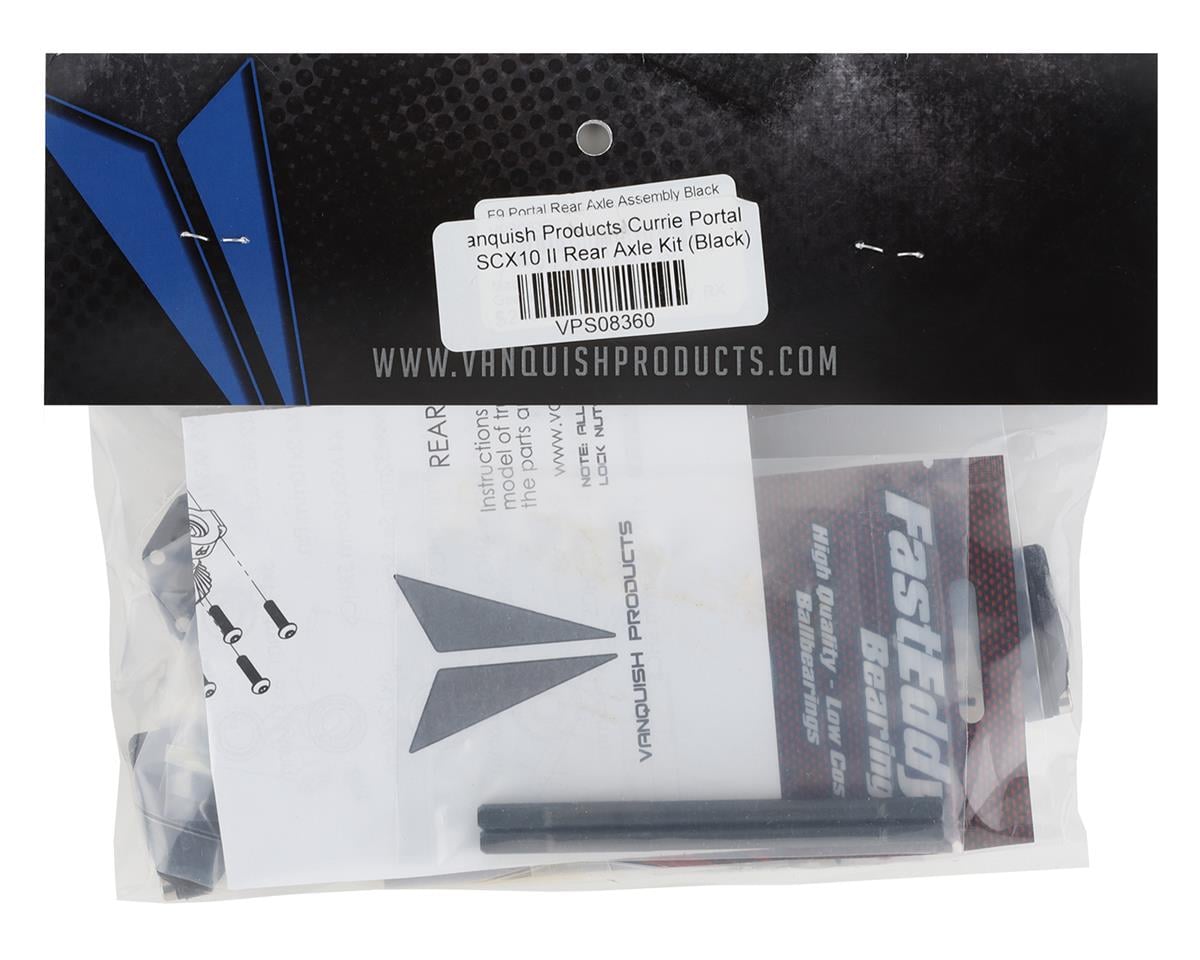

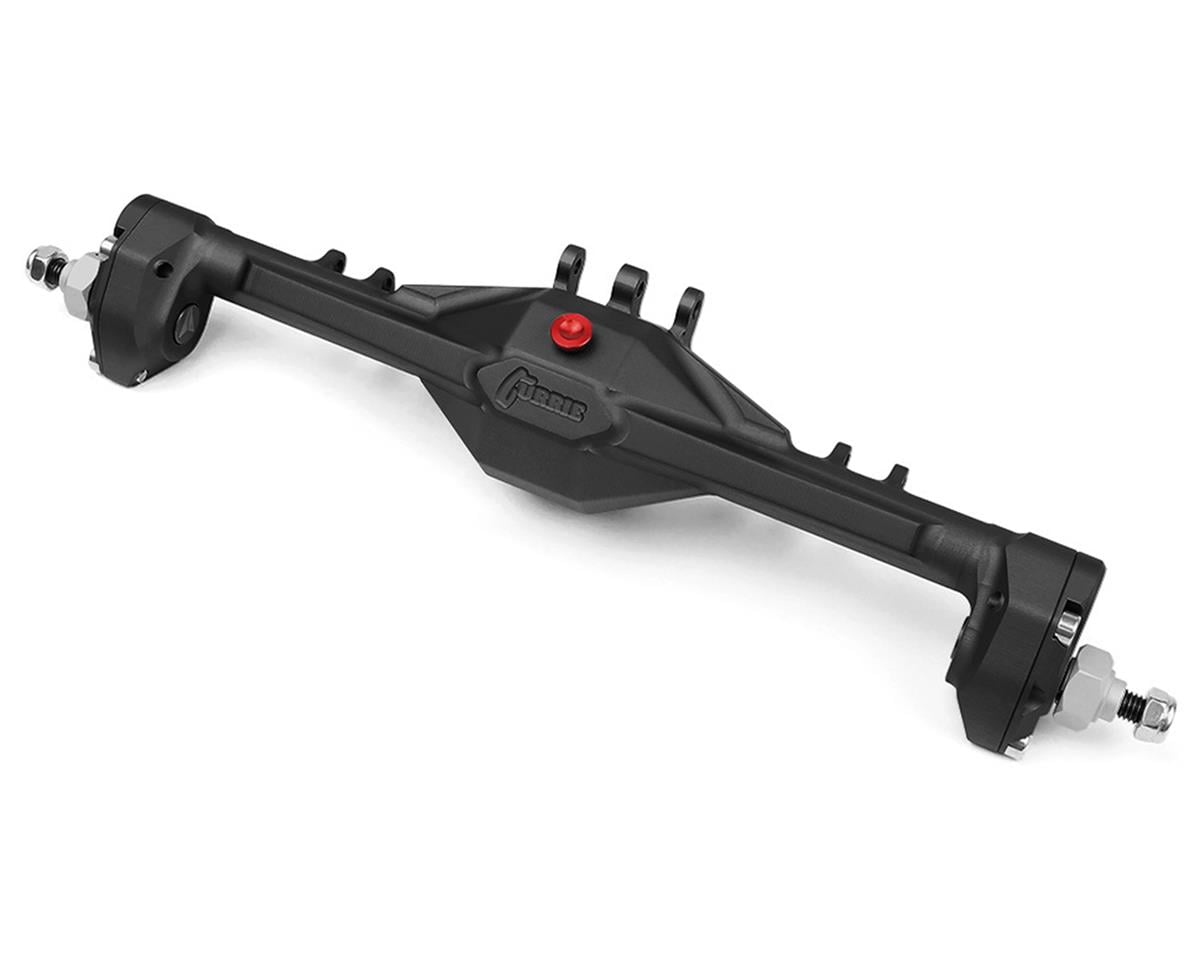

Vanquish Products Currie Portal F9 SCX10 II Rear Axle Kit (Black)

Upgrade an Axial AR44-equipped rig with the Vanquish Products Currie Portal F9 SCX10 II Rear Axle Kit in black. This rear axle assembly uses portal gear reduction and an integrated portal box to increase axle-center ground clearance while retaining SCX10-II linkage compatibility.

Features

• Portal box integrated into the rear housing for increased clearance and a scale appearance
• Portal gear reduction of 1.67:1 (18/30)
• Optional overdrive ratio of 1.4:1 (20/28)
• Included Vanquish AR44 machined gear set
• Overall axle reduction of 6.26:1 with the stock portal ratio
• 13mm increase in ground clearance
• Hex-to-hex width of 7.66 inches
• Chromoly inner rear axle shafts with triple bearing support
• Chromoly stub shafts with a 6mm drive-pin design tapering to a 5mm thread
• Chromoly spool
• Aluminum 12mm hex with set screw
• Uses all SCX10-II linkage
• Complete Fast Eddy Bearings kit
• Licensed by Currie Enterprises
• One Piece Bearing Retainers (Patent Pending)
• Double-shear shock mounts
• Upper link mounts built into the third member
• Increased upper link clearance for more suspension up-travel ability

Fitment Notes

• Direct replacement for an Axial AR44 axle using all stock links.
• Requires a 350 SLW hub or greater on Vanquish 1.9 wheels.
• Incision wheels require a #4 or greater.
• Other wheel manufacturer offsets will vary.
• Portal axles must be used in pairs; a front portal axle cannot be run without a rear, and vice versa.
• Overdrive gear sets are recommended for use in the front axle only.
