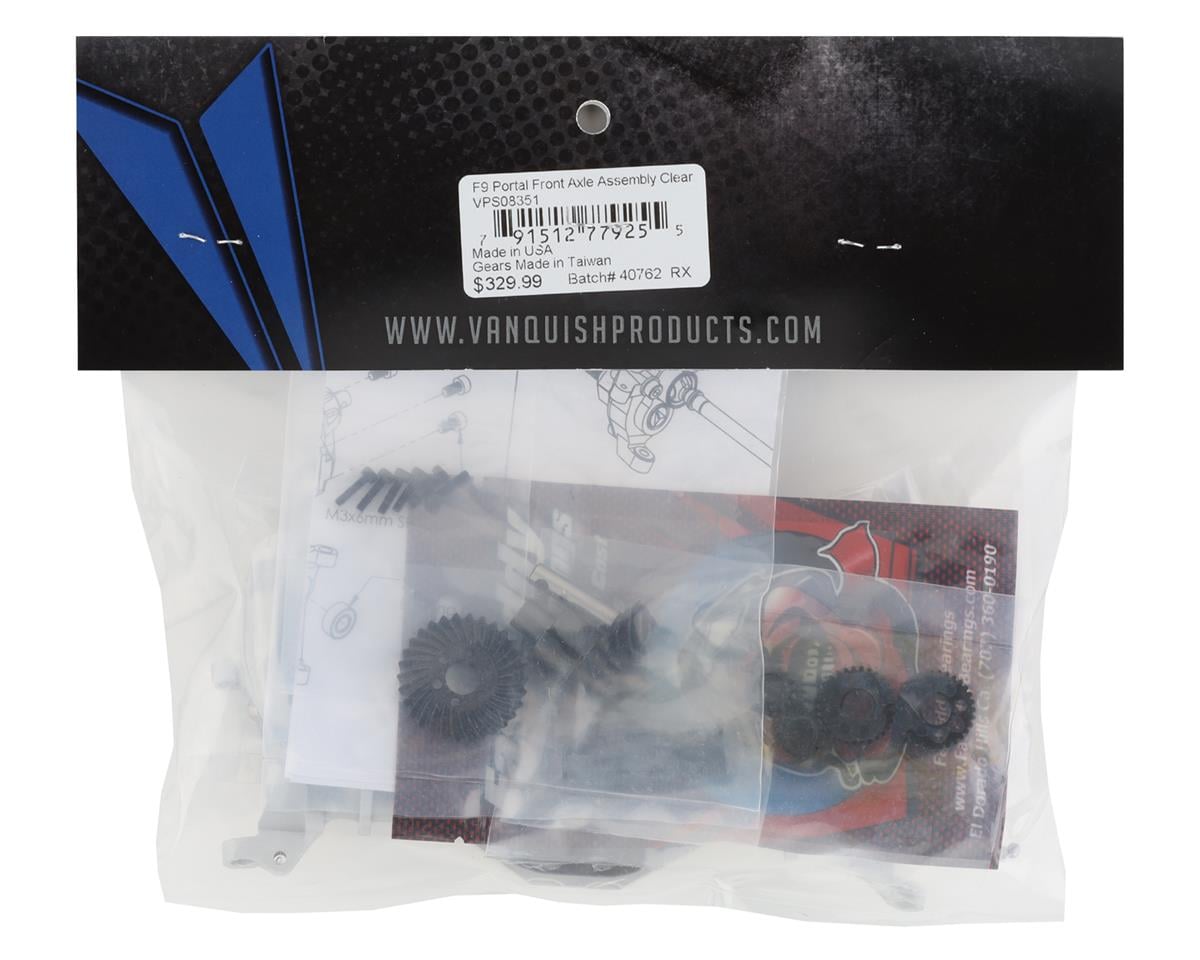

Vanquish Products Currie Portal F9 SCX10 II Front Axle Kit (Silver)

The Vanquish Products Currie Portal F9 SCX10 II Front Axle Kit is a direct replacement for an Axial AR44 axle and uses stock SCX10-II links. Its portal design adds 13mm of center pumpkin ground clearance while reducing gear load through the drivetrain.

Features

• Portal box integrated into the included knuckle with a bolt-on high-steer arm for double-shear mounting
• 1.67:1 portal gear reduction (18/30)
• Optional 1.4:1 overdrive ratio (20/28), recommended for front axle use only
• Included Vanquish AR44 machined gear set
• Overall axle reduction of 6.26:1 with the stock portal ratio
• 13mm increase in ground clearance
• Offset C-hubs machined into the housing for strength, durability, clearance and scale appearance
• 7.66-inch hex-to-hex width, roughly 5mm wider than a stock AR44 axle with a narrow hex
• Replaceable Chromoly threaded inserts at the knuckle and C-hub
• Brass knuckle bushings from the AR60 axles
• Preassembled Chromoly AR60-size VVD axle shafts
• Chromoly stub shafts with a 6mm drive-pin design tapering to a 5mm thread
• Chromoly spool
• Aluminum 12mm hex with set screw
• Compatible with a stock SCX10-II chassis-mounted servo or F9 servo-on-axle mount
• Adjustable steering stop integrated into the knuckle
• Complete Fast Eddy Bearings kit
• Licensed by Currie Enterprises
• One Piece Bearing Retainers (Patent Pending)
• Double-shear shock mounts
• Integrated Panhard mount
• Upper link mounts built into the third member
• Increased upper link clearance for additional suspension up travel

Important Notes

• Requires a 350 SLW hub or greater on Vanquish 1.9 wheels.
• Incision wheels require a #4 or greater.
• Wheel offsets from other manufacturers will vary.
• Axles must be used in pairs; a front portal axle cannot be used without a rear portal axle, and vice versa.
