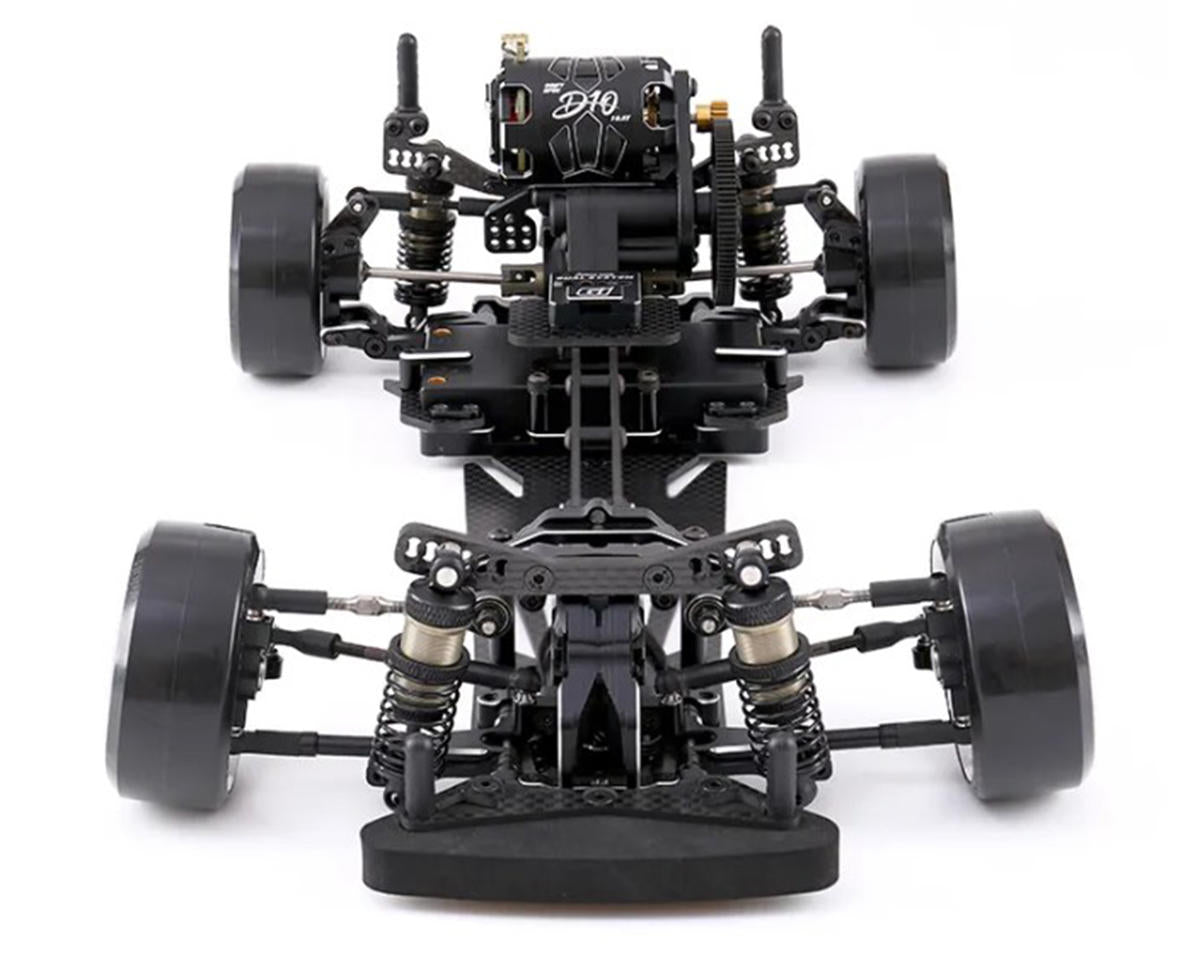

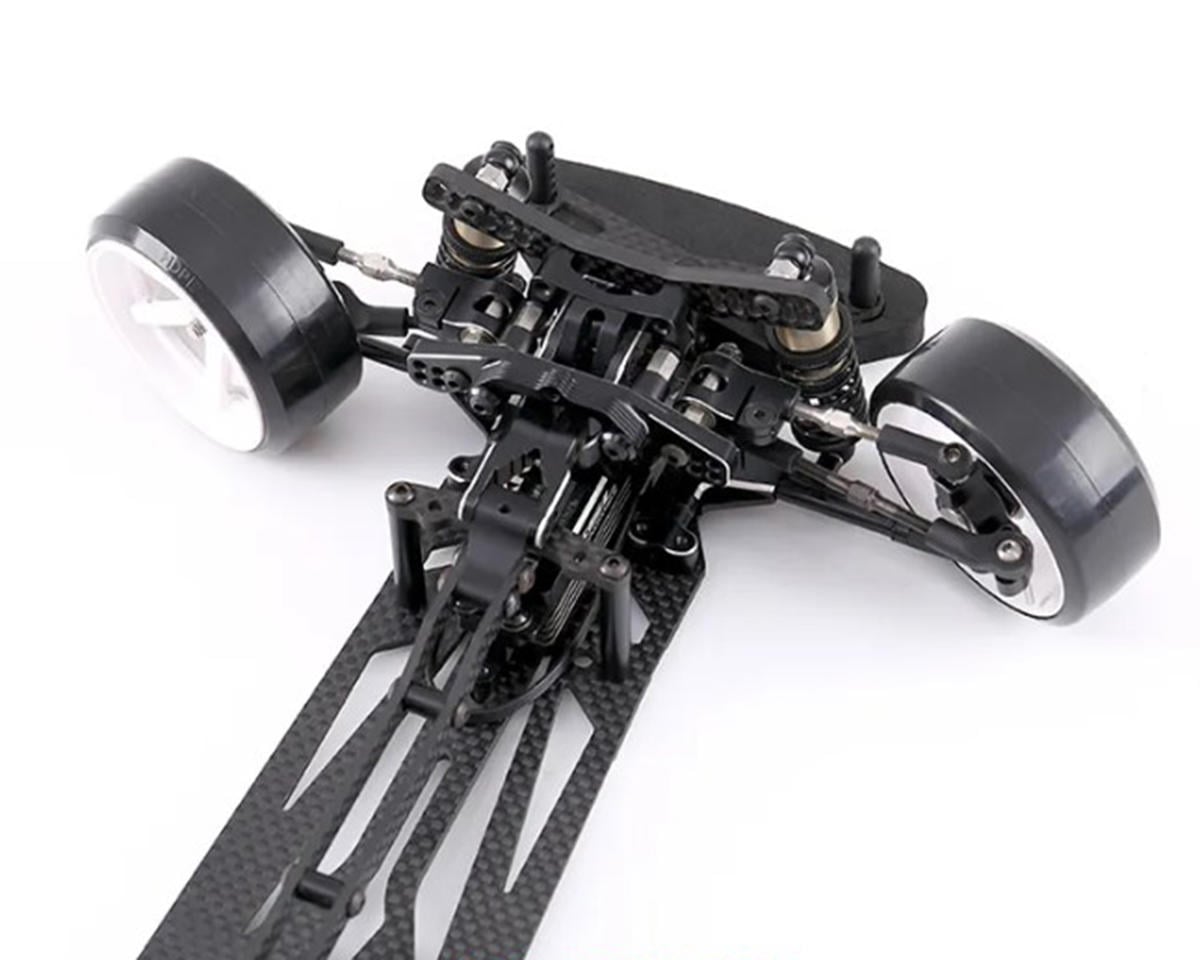

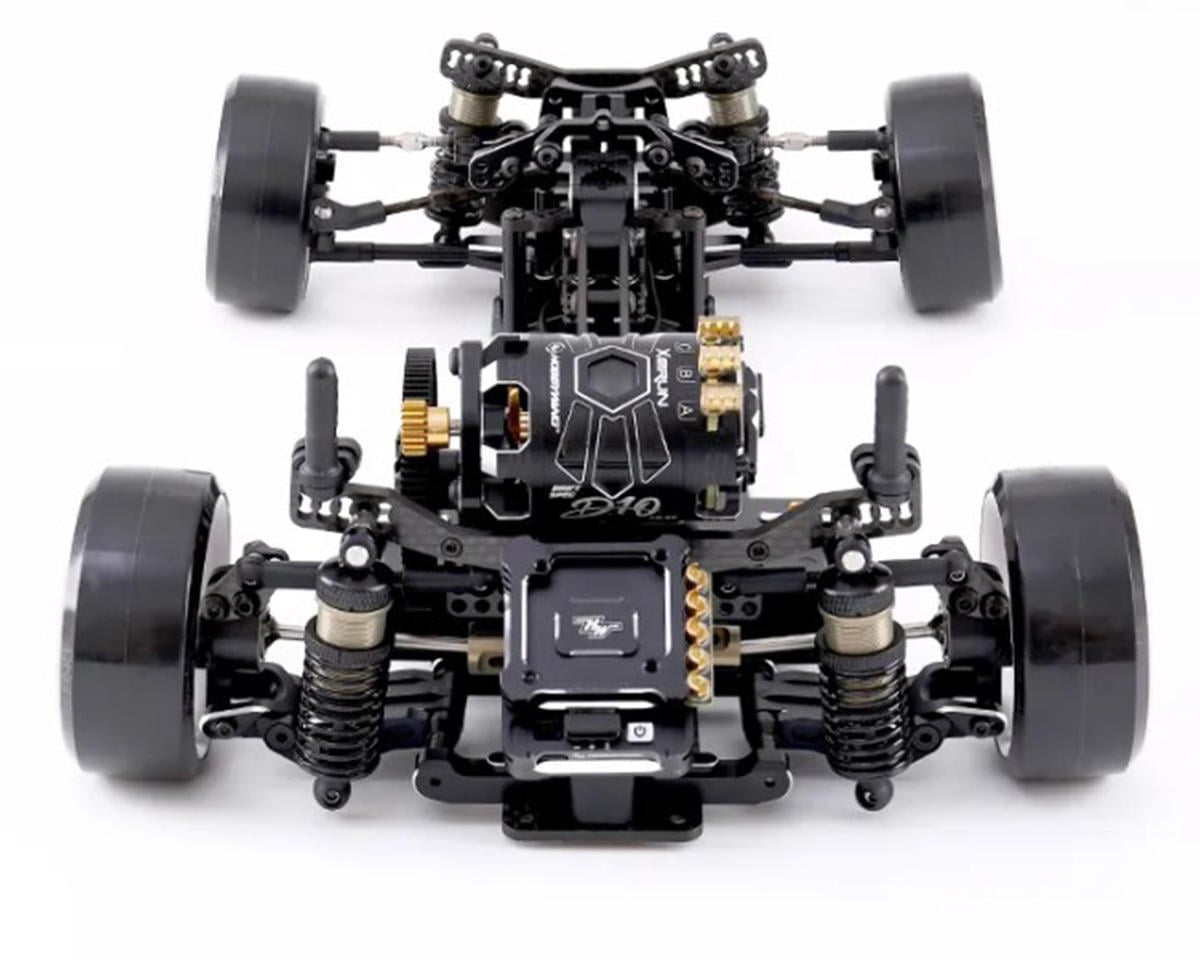

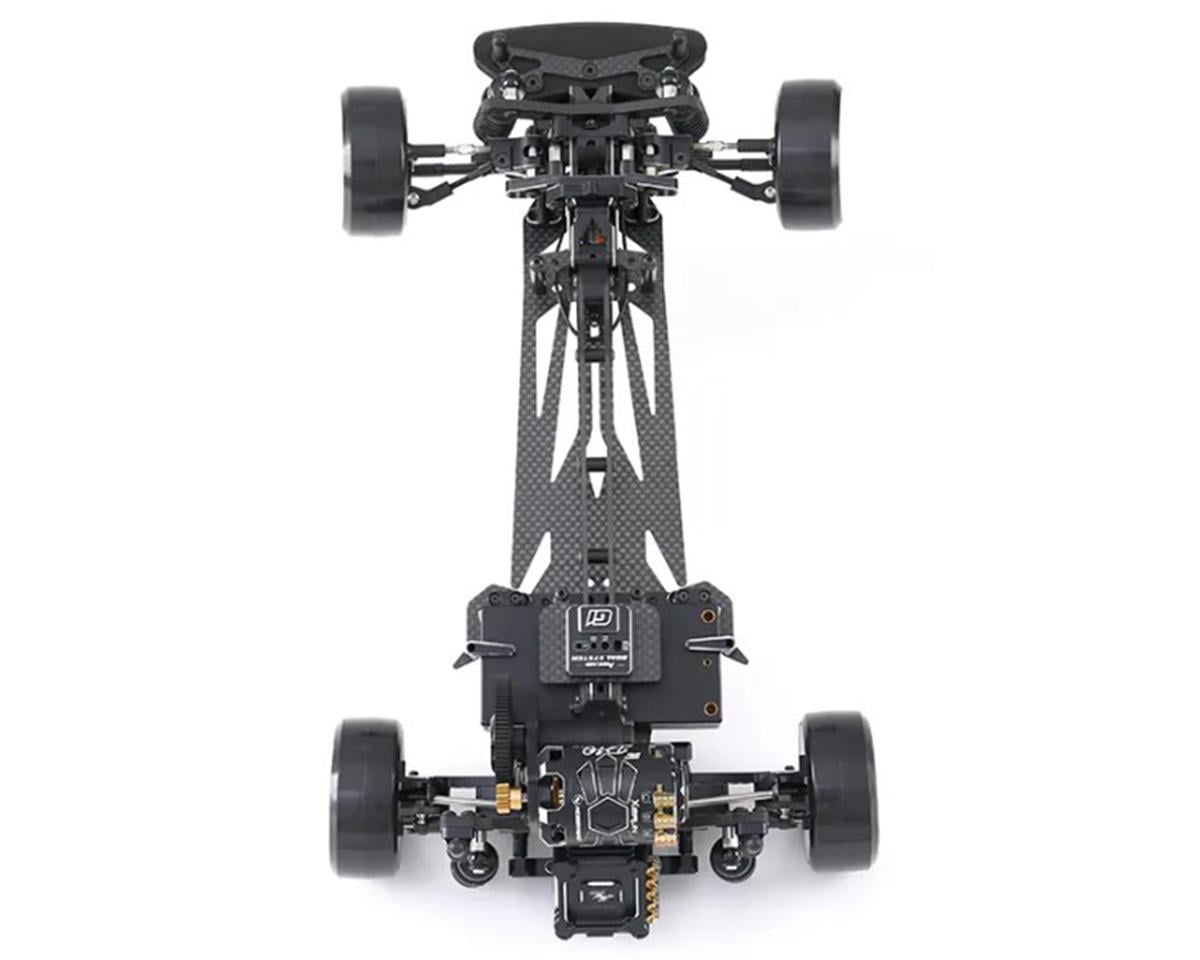

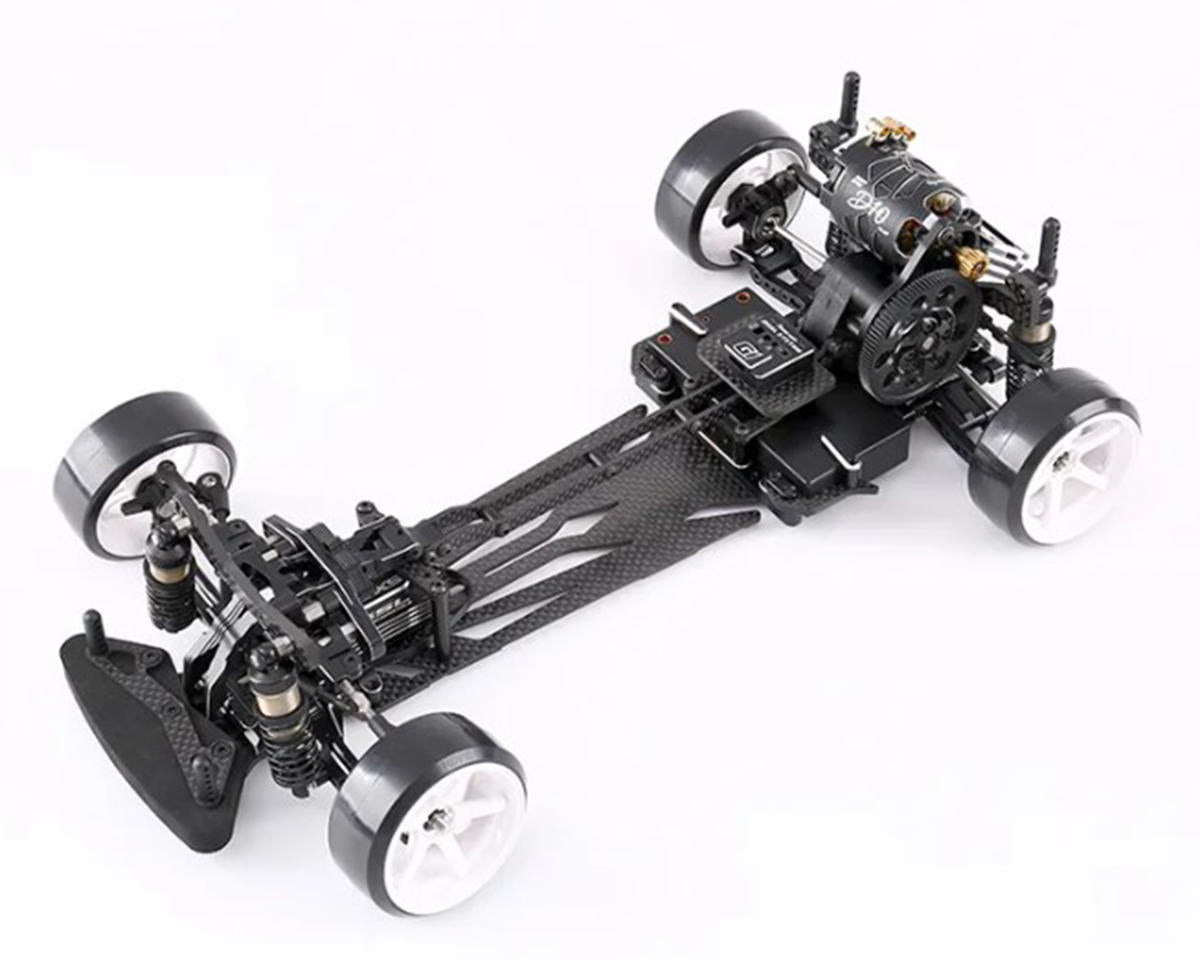

Usukani NGE-PRO 1/10 RWD Drift Car Chassis Kit

The Usukani NGE-PRO 1/10 RWD Drift Car Chassis Kit combines a carbon fiber high-traction chassis with factory-installed aluminum hop-up parts for adjustable rear-wheel-drive drifting. Its rear ESC and battery placement supports weight balance, while quick-release battery and front arm mounts simplify tuning and maintenance.

Features

• Carbon fiber high-traction chassis
• Big bore aluminum shocks
• Steel CVD axles
• Four-gear transmission with a 2.9 gear ratio
• Metal gear differential unit and rear solid axle included
• Quick-release battery and front arm mounts
• Rear ESC and battery placement
• Adjustable turnbuckles, arms, and suspension mounts
• Factory-installed aluminum hop-up parts
• Large angle steering system

Drivetrain and Suspension

The drivetrain includes steel CVD axles, a 7075 aluminum gear set, a Type-A metal gear differential unit, and a four-gear transmission with an approximate 2.9 gear ratio. A multi-position motor mount, adjustable EP mount, brass transmission case backplate, and included rear solid axle provide configuration options for different drift setups.

Suspension equipment includes big bore aluminum oil-filled shocks, carbon fiber front and rear shock towers, aluminum knuckles, front lower arms, rear hubs, and adjustable suspension mounts with a 10–5° rear range. The large angle steering system features adjustable Ackermann and full turnbuckles.

Includes

• (1) NGE-PRO 1/10 RWD Drift Car Chassis Kit
• Instruction Manual

Needed to Complete

• (1) 2-Channel Transmitter & Receiver
• (1) Electronic Speed Control
• (1) Steering Servo
• (1) Drift Gyro
• (4) Drift Tires & Wheels
• (1) 540 Motor
• (1) 2S Shorty LiPo Battery (7.4V)
• (1) Compatible Battery Charger
• (1) 48P Pinion Gear
• (1) Drift Body
• (1) Polycarbonate Paint for Body
• Tools for Assembly

Specifications

• Scale: 1:10
• Drive: 2WD
• Power Source: 2S LiPo
• Length: 13.98in (355mm)
• Wheelbase: 10.08in (256mm)
• Width: 7.87in (200mm)
• Assembly Level: Kit

This is an unassembled remote control model requiring assembly, racer-selected electronics, and other racer-provided items. Photos of the assembled kit are for illustrative purposes only.
