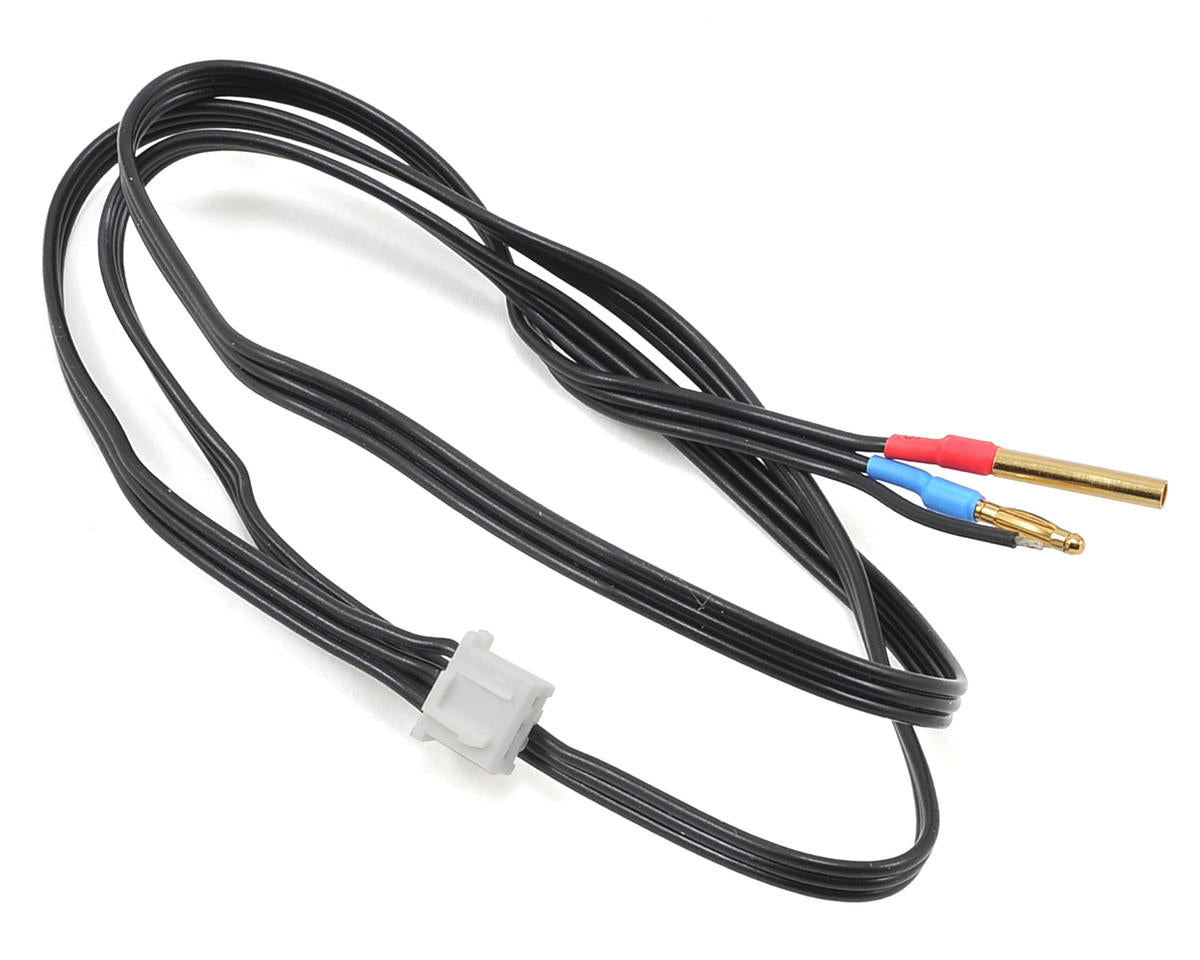

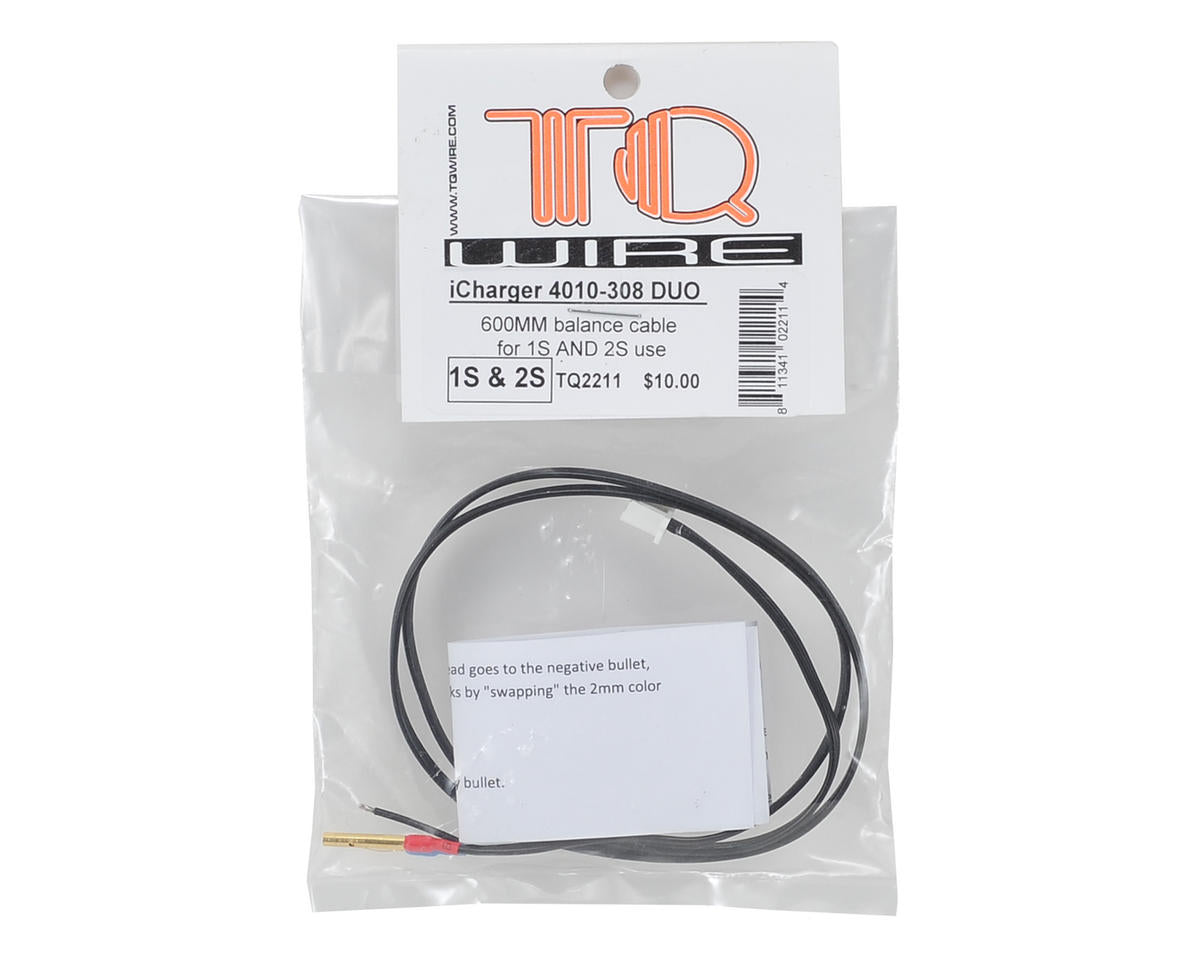

TQ Wire 1S/2S iCharger Balance Extension (600mm)

The TQ Wire 1S/2S iCharger Balance Extension is a 600mm cable for bullet-type batteries. It is compatible with the iCharger 4010, 308 and 406 Duo chargers.

Features

• Supports both 1Cell and 2Cell bullet-style packs by swapping the 2mm color-coded bullets.
• The updated cable includes a 3-pin plug that requires no cutting to fit the iCharger 4010, 308 and 406 Duo.
• For the updated cable, plug the connector into the right side of the balance port.

Connection Details

• The black lead connects to the negative bullet.
• The included 2mm tube is soldered to the positive bullet or charge lead.
• For 1 CELL charging, connect the BLUE bullet to the positive battery bullet and leave the RED bullet disconnected.
• For 2 CELL charging, connect the BLUE bullet to the battery balance port and the RED bullet to the positive battery bullet.
