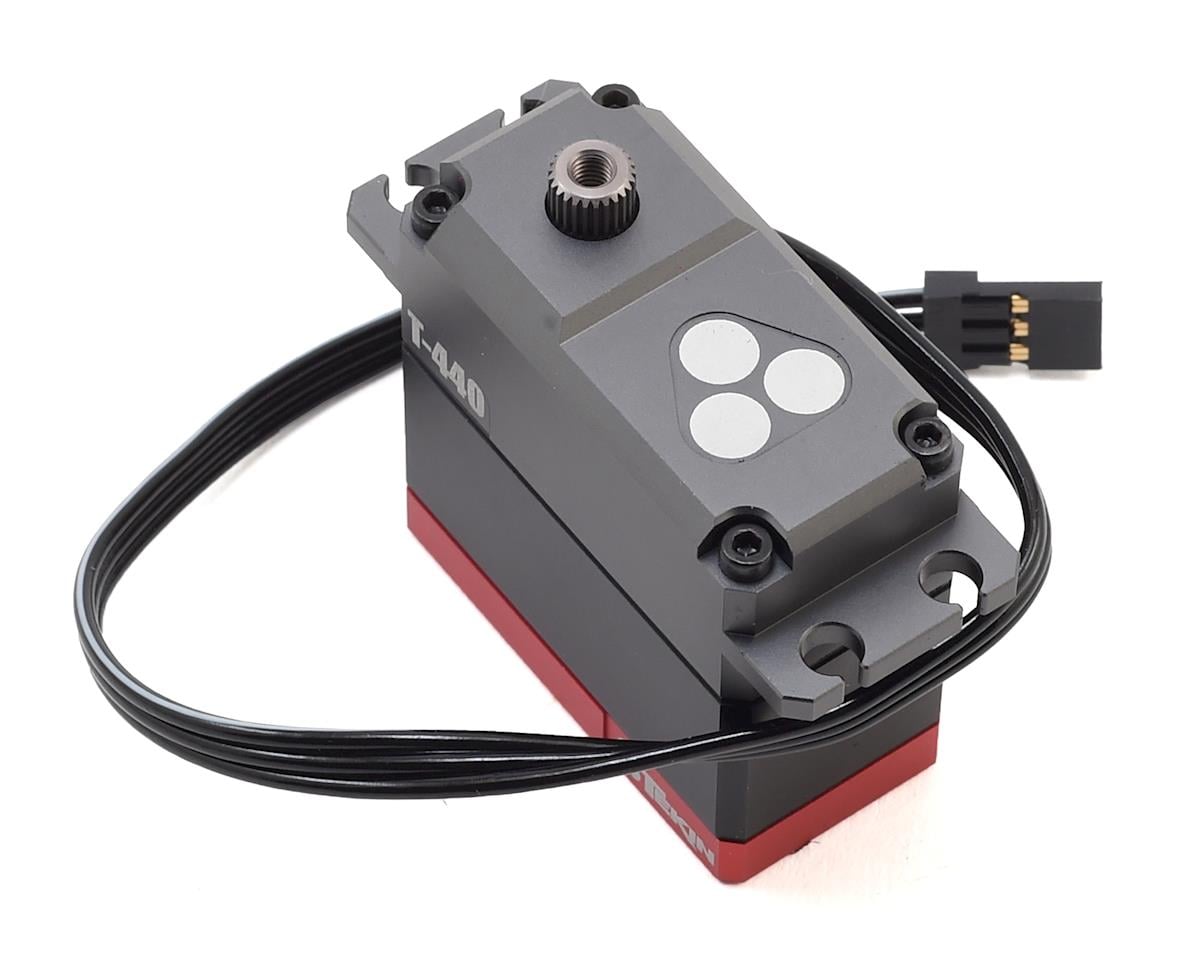

Tekin T-440 Digital Hi-Torque Programmable Servo (High Voltage)

The Tekin T-440 Digital Hi-Torque Programmable Servo is designed for 1/8 and 1/10 scale rock crawling and rock racing applications. It combines a full aluminum housing, precision-cut full metal gears, ABEC5 ball bearings, a coreless motor, and Digital Magnetic Position Encoding (DPE) for accurate, consistent servo movement.

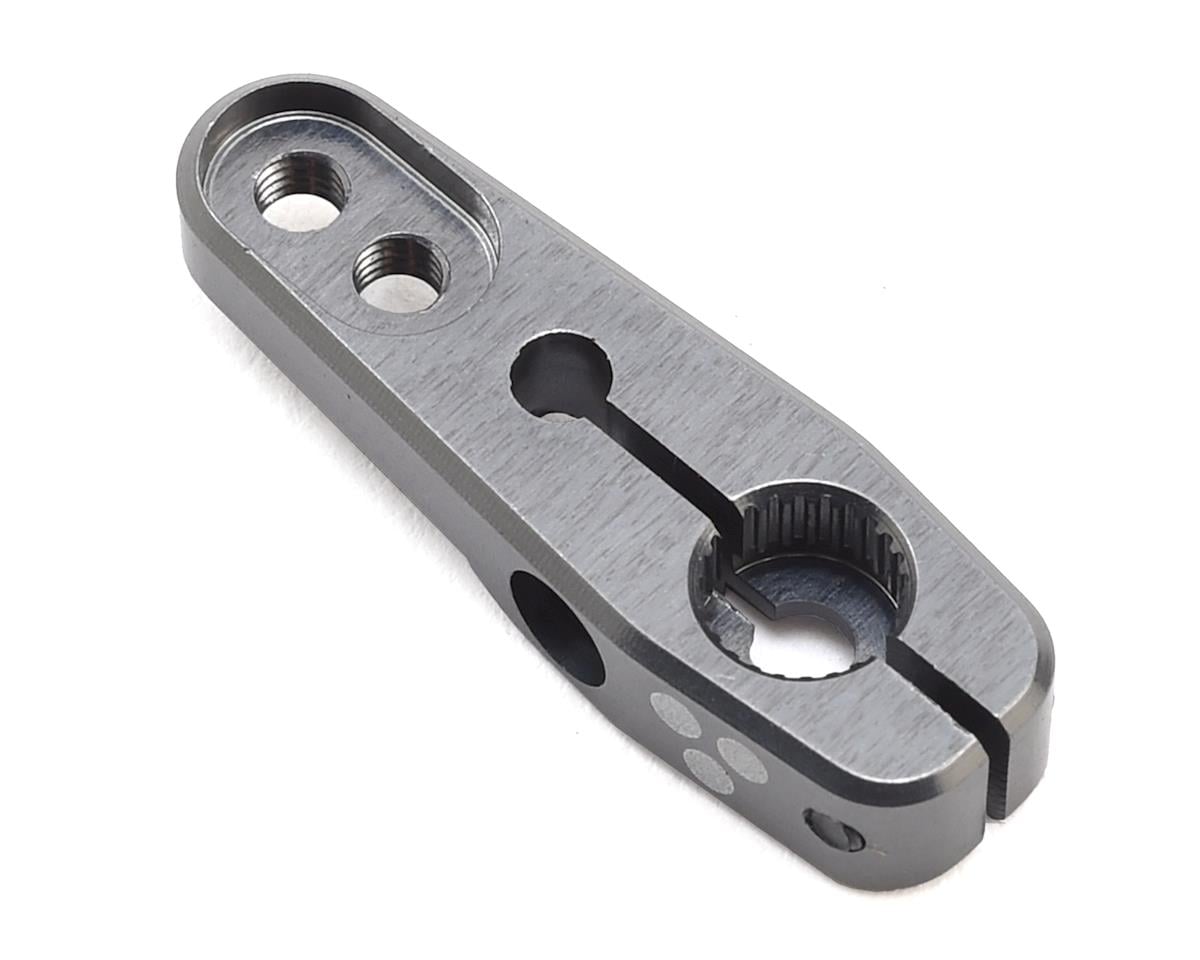

Its Element Proof design is intended to withstand water, snow, and mud within reasonable restrictions; operation while submerged in liquid is not recommended. The servo includes a machined aluminum 20mm Crowbar 25T dual clamping servo arm and supports programming through the Tekin HotWire PC Interface, which is sold separately.

Features

• Digital Magnetic Position Encoder (DPE)
• High-voltage capable, with a voltage range of 4.8V to 8.4V
• 502 oz-in (36.2kg-cm) torque at 8.4V
• 460 oz-in (33.1kg-cm) torque at 7.4V
• 421 oz-in (30.3kg-cm) torque at 6.0V
• 0.11sec/60 deg at 8.4V, 0.13sec/60 deg at 7.4V, and 0.15sec/60 deg at 6.0V
• Precision-cut full metal gears and ABEC5 ball bearings
• 25T output spline
• Overload protection technology and thermal protection circuitry
• Low voltage alarm
• Quiet, efficient, cool operation
• Programmable via HotWire PC Interface

HotWire Programmable Features

• Feel: Mild to Aggressive
• Speed Limit
• Torque: 0-100%
• Torque Delay
• Direction: Normal / Reverse
• Center Point and Travel
• Soft Starting Speed & Torque
• Max Temp Alarm, Low Voltage Alarm, and Over Voltage Alarm
• Bind Relief
• Fail Safe Speed and Position
• Custom Servo Name

Specifications

• Size Category: Standard
• Type: Digital
• Application: Rock Crawling and Rock Racing
• Length: 1.57 in (40mm)
• Width: 0.79 in (20mm)
• Height: 1.57 in (40mm)
• Weight: 2.57 oz (73g)
• Motor Type: Coreless
• Gear Type: Metal
• Bushing Or Bearing: Bearing
