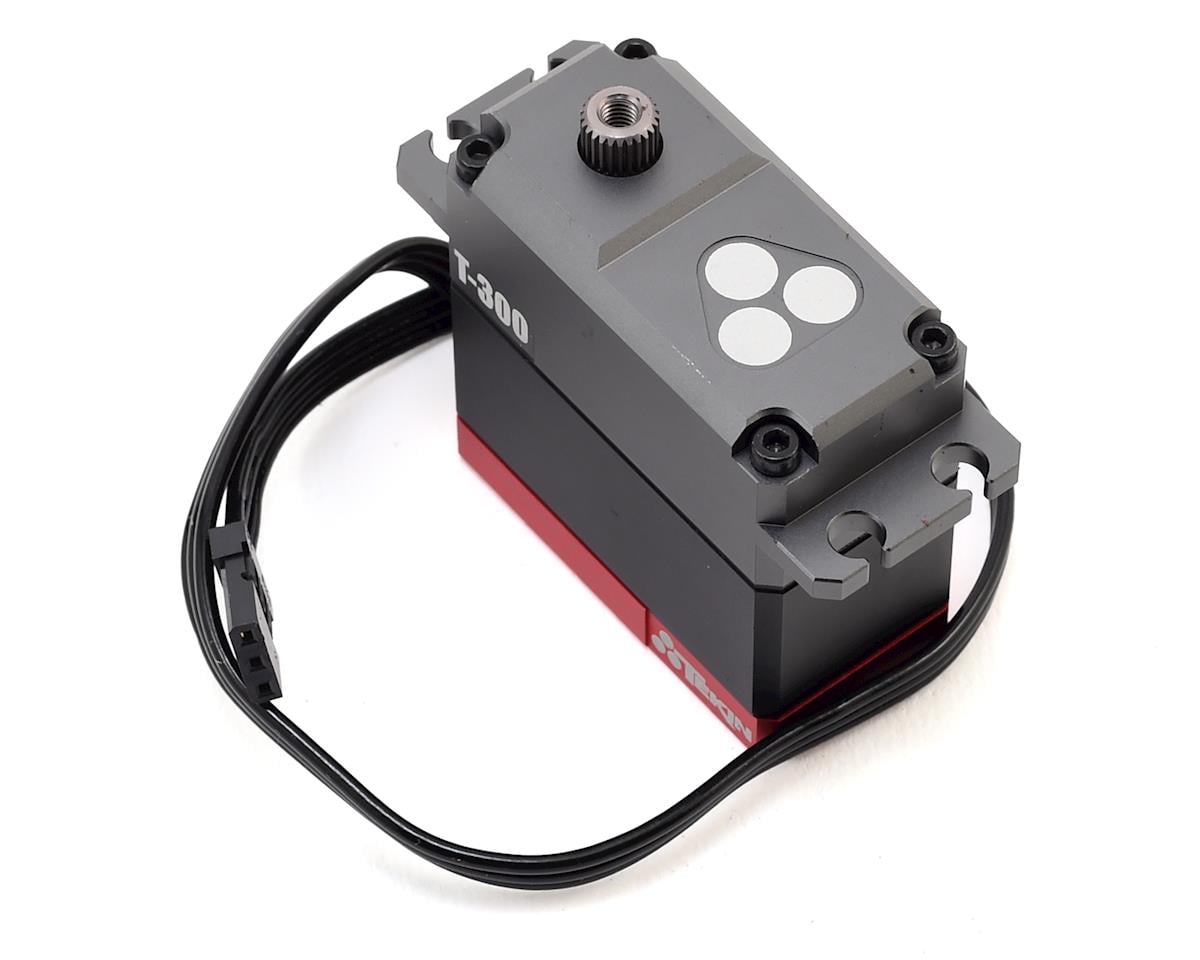

Tekin T-300 Digital Hi-Torque Programmable Servo (High Voltage)

The Tekin T-300 is a high-voltage digital servo designed for 1/8 and 1/10 scale applications. It combines a coreless motor, precision-cut full metal gears, an all-aluminum housing, and Digital Magnetic Position Encoder (DPE) technology for accurate, consistent servo control.

Features

• Digital Magnetic Position Encoder (DPE)
• High-voltage operation from 4.8V to 8.4V
• High-torque coreless motor
• Precision-cut full metal gears
• Full aluminum servo housing with element-proof design*
• ABEC5 ball bearings
• 25T output spline
• Overload protection technology and thermal protection circuitry
• Quiet, efficient, cool operation
• Low-voltage alarm**
• Programmable through the Tekin HotWire PC Interface

HotWire Programmable Adjustments

• Feel: Mild to Aggressive
• Speed Limit
• Torque: 0-100%
• Torque Delay
• Direction: Normal / Reverse
• Center Point and Travel
• Soft Starting Speed & Torque
• Max Temp Alarm, Low Voltage Alarm, and Over Voltage Alarm
• Bind Relief
• Fail Safe Speed and Position
• Custom Servo Name

Specifications

• Type: Digital
• Application: 1/10 and 1/8 Scale
• Torque: 354 oz-in (25.5kg-cm) @ 8.4V; 328 oz-in (23.6kg-cm) @ 7.4V; 284 oz-in (20.5kg-cm) @ 6.0V
• Speed: 0.08sec/60 deg @ 8.4V; 0.10sec/60 deg @ 7.4V; 0.11sec/60 deg @ 6.0V
• Dimensions: 1.57 in (40mm) length, 0.79 in (20mm) width, 1.57 in (40mm) height
• Weight: 2.57 oz (73g)
• Motor: Coreless
• Gear Type: Metal
• Bearing: Bearing
• Size Category: Standard

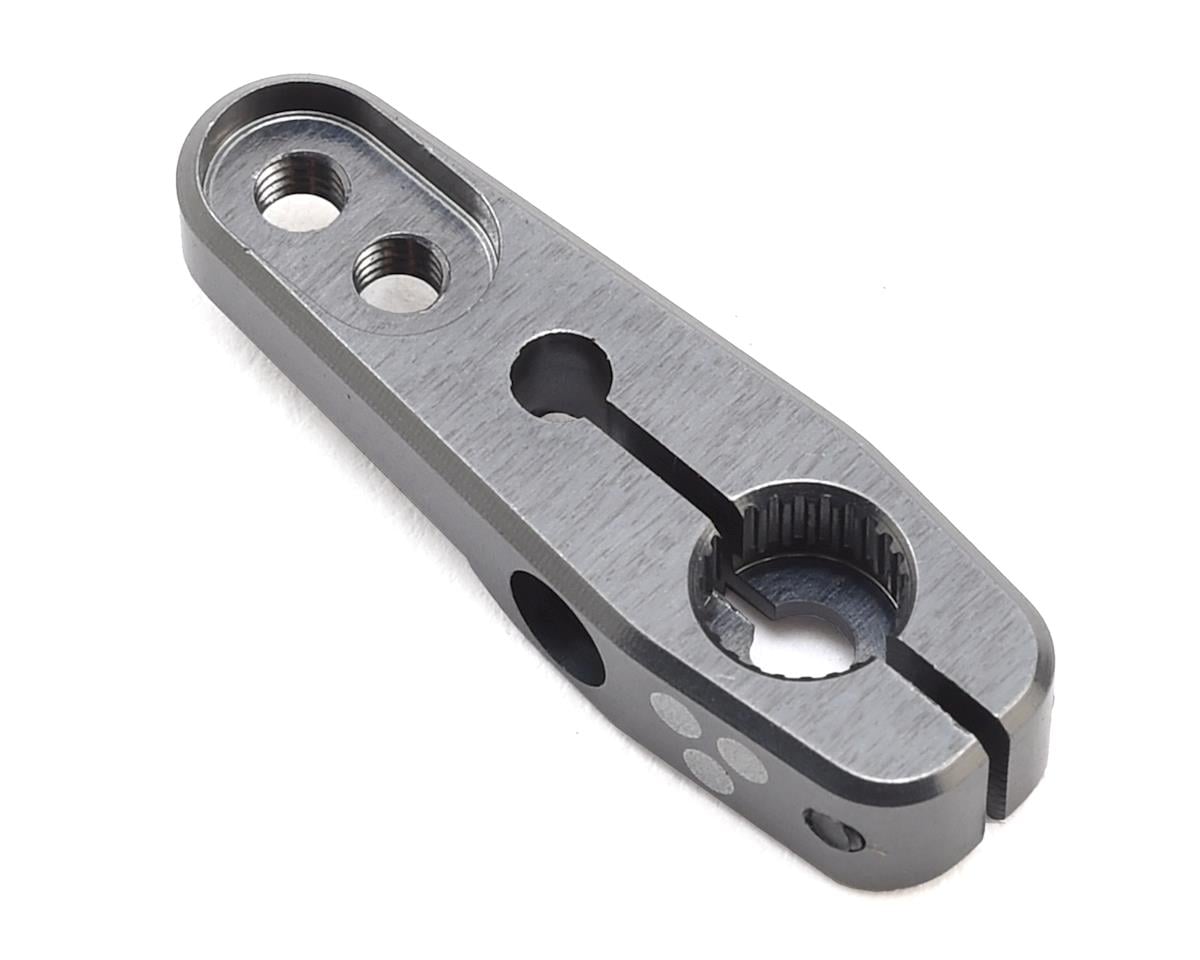

Included with the T-300 is a machined aluminum 20mm Crowbar 25T dual clamping servo arm.

*Tekin Element Proof products are designed to withstand water, snow, and mud within reasonable restrictions. They are not intended for operation while submerged in liquid.

**The low-voltage alarm requires a HotWire, sold separately.
