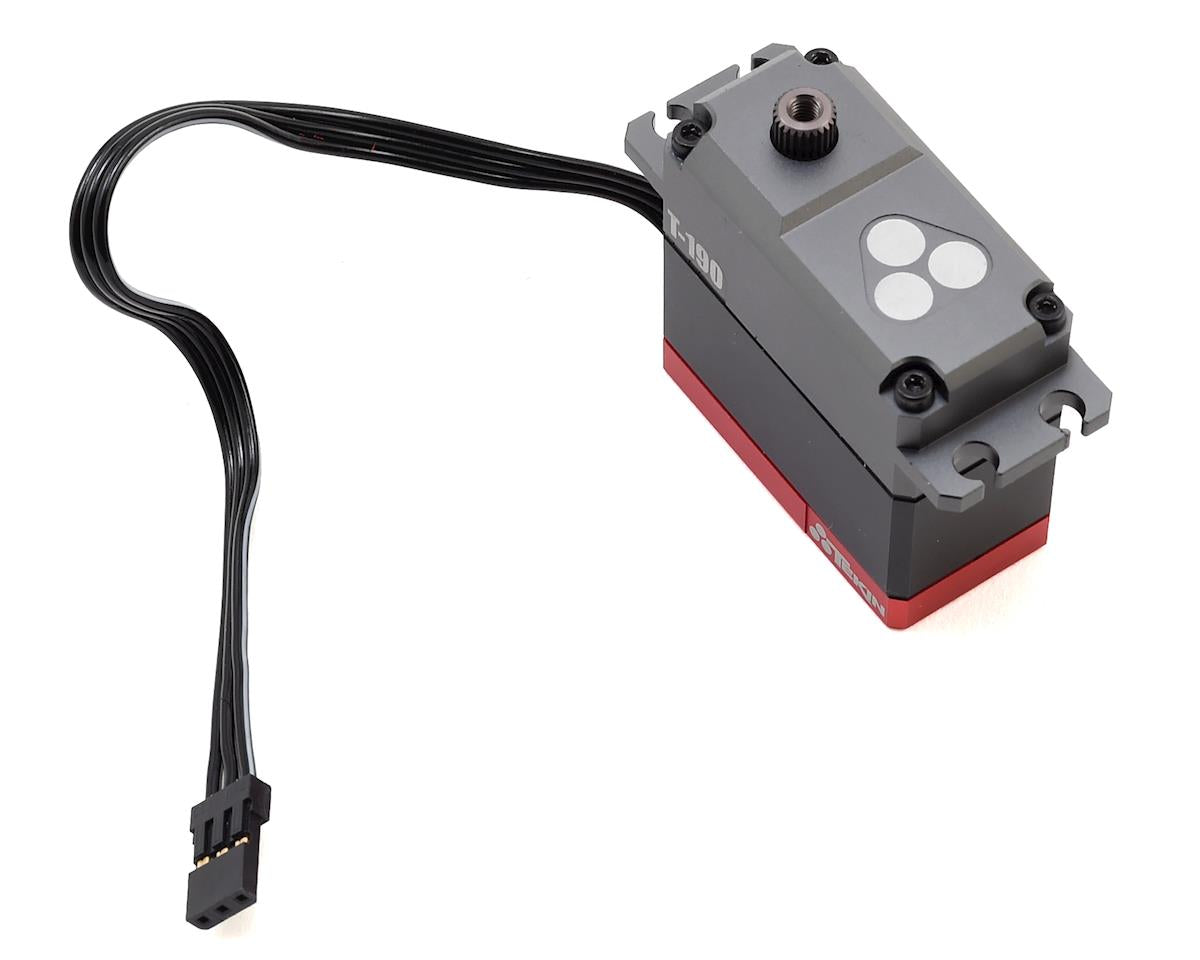

Tekin T-190 Digital Hi-Torque Programmable Servo (High Voltage)

The Tekin T-190 is a high-voltage digital servo designed for 1/12 and 1/10 scale on-road and off-road applications. It combines a full aluminum housing, precision-cut full metal gears, ABEC5 ball bearings, a coreless motor, and Digital Magnetic Position Encoder technology.

Features

• Digital Magnetic Position Encoder (DPE)

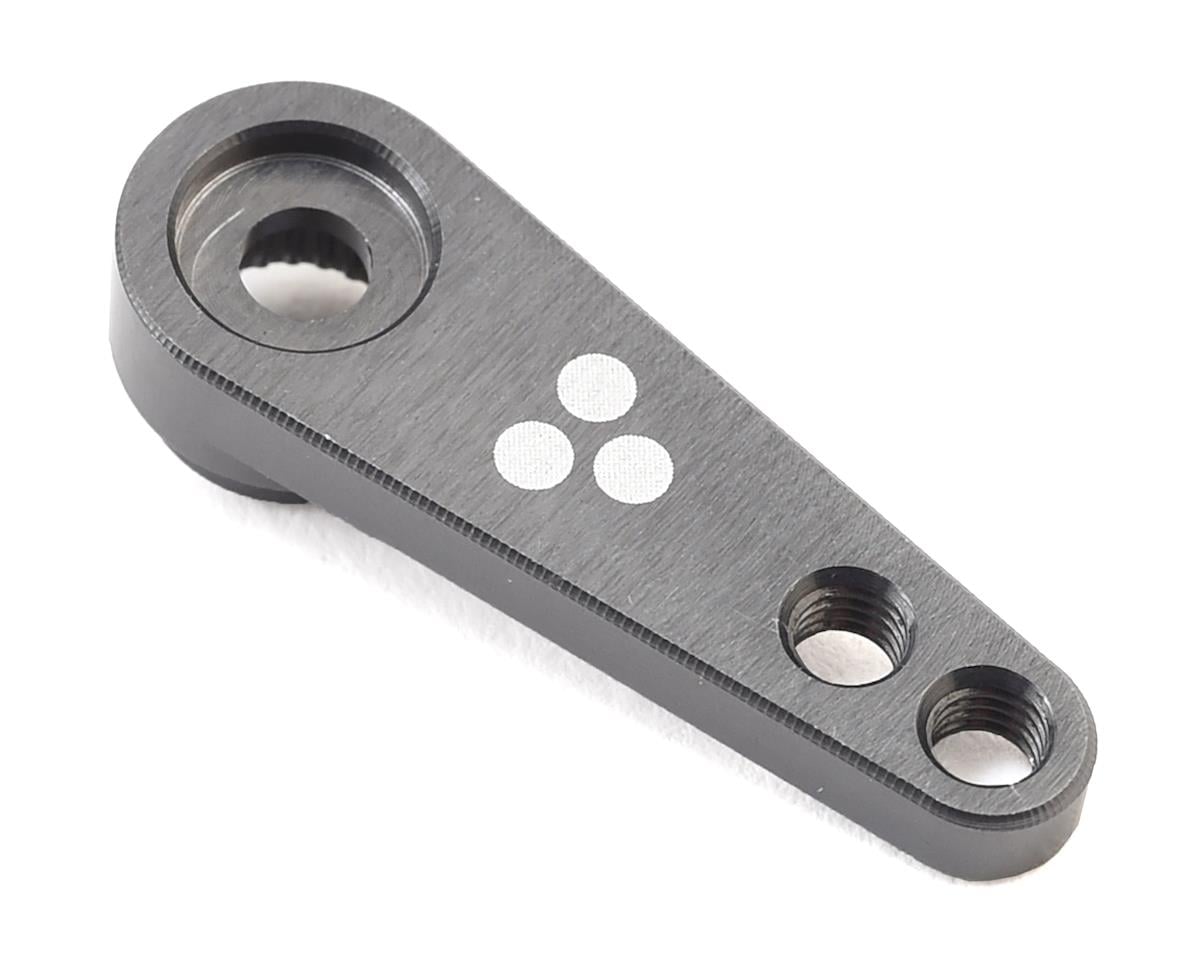

• Included machined aluminum Vector 25T servo arm
• Element Proof design for water, snow, and mud within reasonable restrictions; not intended for submerged operation
• High-voltage capable from 4.8V to 8.4V
• Overload protection technology and thermal protection circuitry
• 25T output spline
• Quiet, efficient, cool operation
• Programmable through the Tekin HotWire PC Interface

Programmable Adjustments

• Feel from mild to aggressive
• Speed limit and torque from 0-100%
• Torque delay, direction, center point, and travel
• Soft starting speed and torque
• Max temperature, low voltage, and over-voltage alarms
• Bind relief
• Fail-safe speed and position
• Custom servo name

Specifications

• Size Category: Standard
• Type: Digital
• Application: On-Road and Off-Road
• Torque: 241 oz-in (17.4kg-cm) @ 8.4V; 215 oz-in (15.5kg-cm) @ 7.4V; 180 oz-in (12.3kg-cm) @ 6.0V
• Speed: 0.05sec/60 deg @ 8.4V; 0.06sec/60 deg @ 7.4V; 0.07sec/60 deg @ 6.0V
• Dimensions: 1.57 in (40mm) length, 0.79 in (20mm) width, 1.57 in (40mm) height
• Weight: 2.53 oz (72g)
• Bearing: Bearing
• Motor Type: Coreless
• Gear Type: Metal
• Voltage: 4.8V to 8.4V

HotWire is sold separately.
