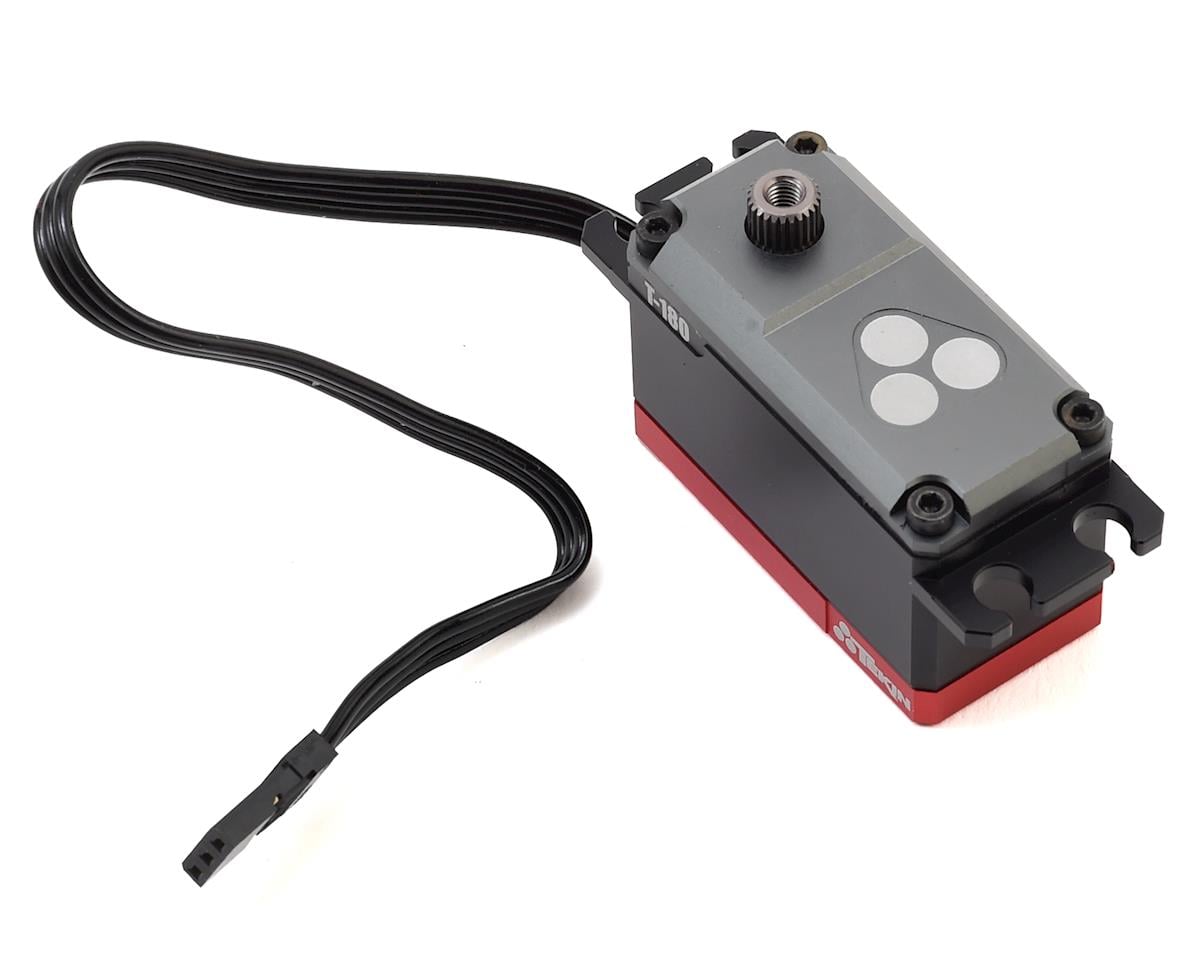

Tekin T-180 Low Profile Digital Hi-Torque Programmable Servo (High Voltage)

The Tekin T-180 Low Profile Digital Hi-Torque Servo combines a compact housing with high torque, programmable adjustments and precise digital magnetic position encoding. Designed for 1/12 and 1/10 scale applications, it features a full aluminum housing, precision-cut metal gears and a high-voltage operating range of 4.8V to 8.4V.

Features

• Digital Magnetic Position Encoder (DPE)
• Low profile design for 1/12 and 1/10 scale applications
• Full aluminum servo housing with element-proof design
• Precision-cut full metal gears and ABEC5 ball bearings
• High torque coreless motor
• 25T output spline
• Overload protection and thermal protection circuitry
• Quiet, efficient, cool operation
• HDAC high-density copper PCB
• Programmable through the Tekin HotWire PC Interface

HotWire Programmable Adjustments

• Feel, from mild to aggressive
• Speed limit and torque from 0-100%
• Torque delay
• Normal or reverse direction
• Center point and travel
• Soft starting speed and torque
• Maximum temperature, low voltage and over-voltage alarms
• Bind relief
• Fail-safe speed and position
• Custom servo name

Specifications

• Torque: 212 oz-in (15.3kg-cm) @ 8.4V; 194 oz-in (14.0kg-cm) @ 7.4V; 165 oz-in (11.9kg-cm) @ 6.0V
• Speed: 0.06sec/60 deg @ 8.4V; 0.07sec/60 deg @ 7.4V; 0.08sec/60 deg @ 6.0V
• Dimensions: 1.57 in (40mm) length, 0.79 in (20mm) width, 1.06 in (27mm) height
• Weight: 1.92 oz (54.6g)
• Motor: Coreless
• Gear type: Metal
• Voltage: 4.8V to 8.4V
• Bearing: Bearing

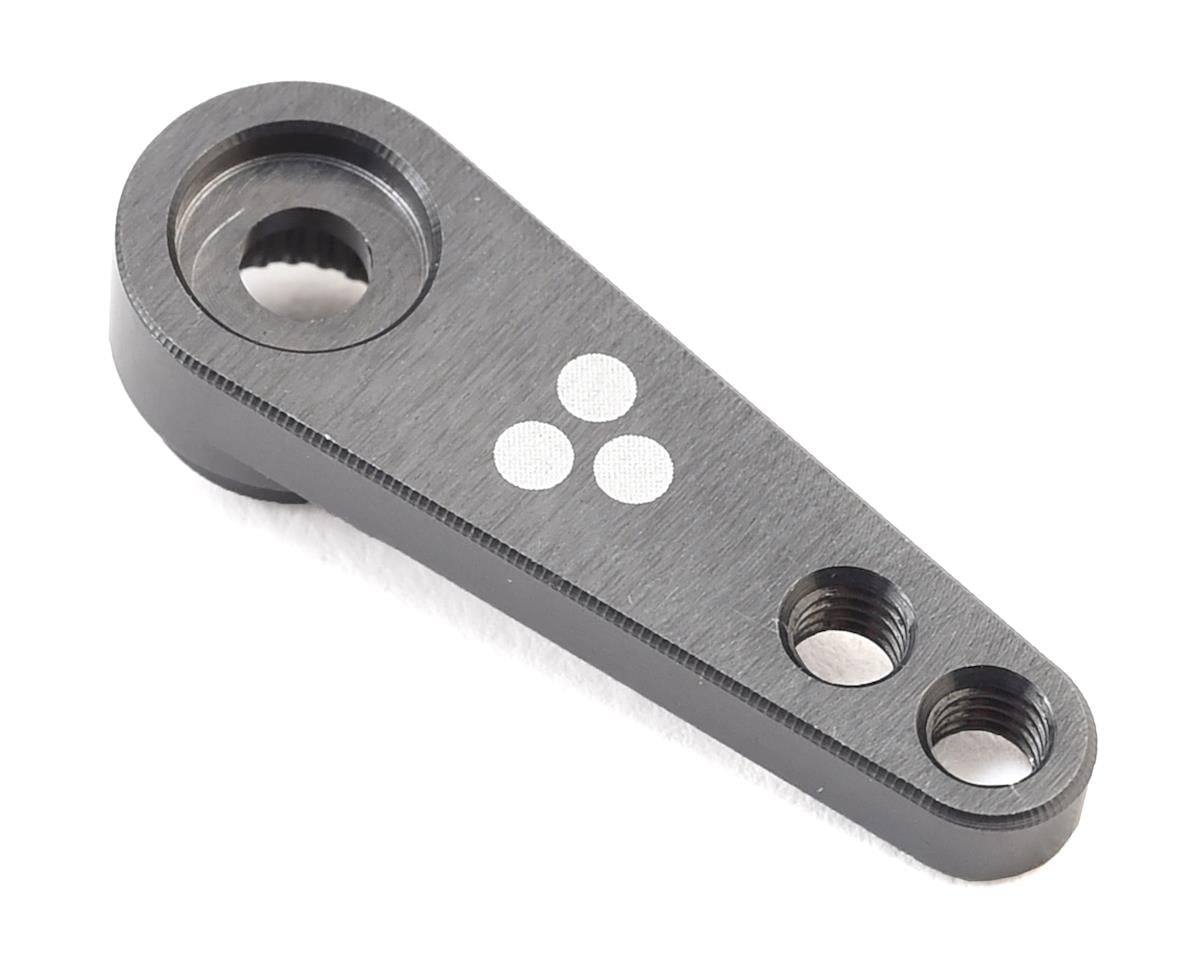

Includes a machined aluminum Vector 25T servo arm. Tekin Element Proof products are designed to withstand water, snow and mud within reasonable restrictions; operation while submerged is not recommended. HotWire is sold separately.
