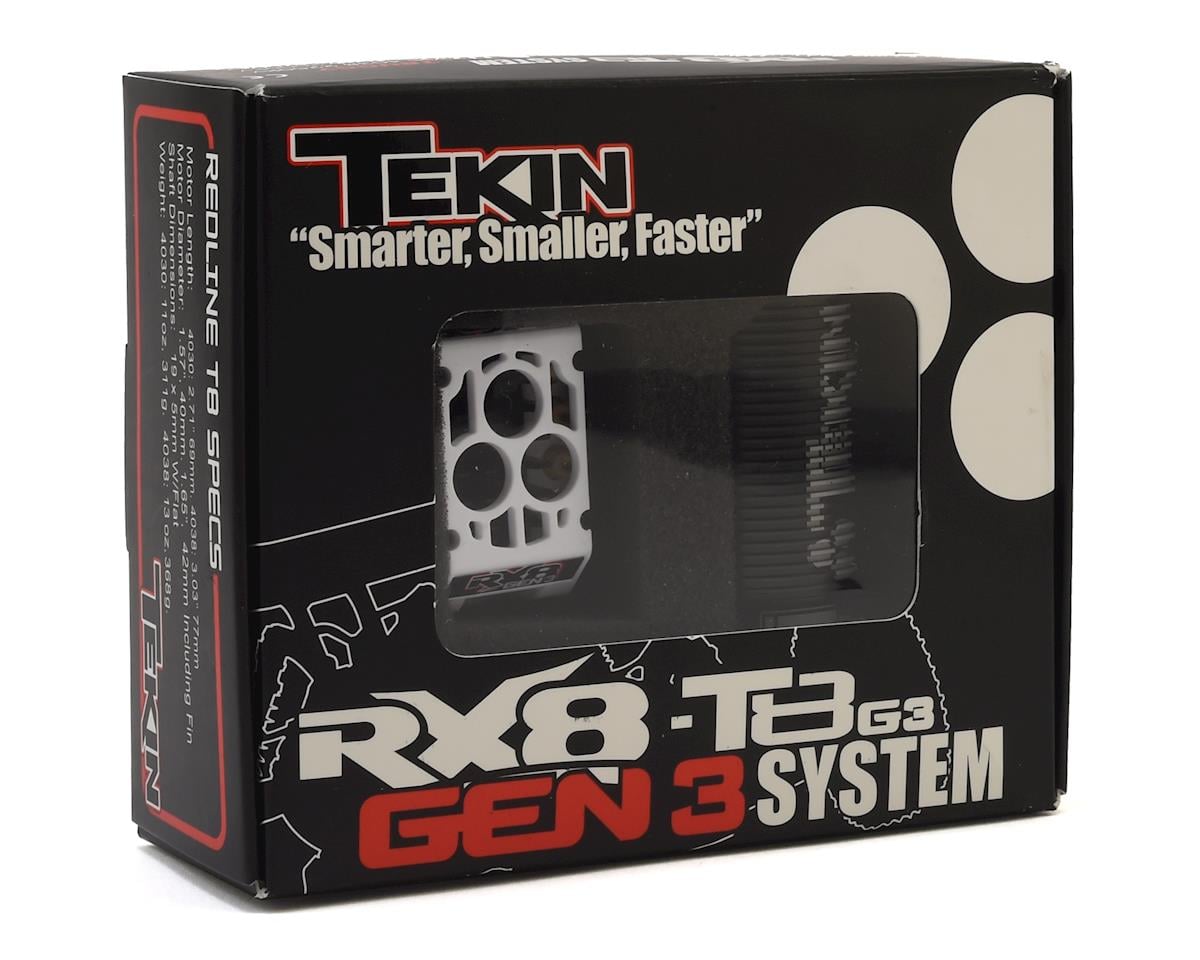

Tekin RX8 GEN3/Redline T8 GEN3 1/8 Buggy Brushless ESC/Motor Combo (1900kV)

The Tekin RX8 GEN3 1/8 scale competition brushless ESC and Redline T8 GEN3 1900kV buggy motor combo combines programmable control features with a rebuildable, 4-pole racing motor. The RX8 GEN3 supports sensored and sensorless operation through Tekin D2 Dual Drive Mode Technology.

RX8 GEN3 ESC Features

• Forward, brake and reverse control
• 2S-6S LiPo / 4-16S NiMH-NiCD input voltage
• 6.0v / 7.4v @ 8amps high-voltage programmable BEC
• 300amps per phase maximum current and 1000amps per phase burst current
• Seven on-board timing profiles
• HotWire 3.0 Bluetooth connectivity, EZ Access HotWire programming port and data logging capability
• D2 Dual Drive Mode Technology for sensored and sensorless motor operation
• Adjustable torque control, throttle frequency and brake frequency
• HD gold-plated solder posts and HDAC high-density copper PCBs
• On-board temperature indicator, self-test diagnostics, factory reset, Pit Tune Mode, DGF2 digital glitch filtering and QuickTune programming
• ROAR approved

Redline T8 GEN3 Motor Features

• 1900kV, rated for 4S
• CNC machined 6061 T6 billet aluminum ribbed heatsink can
• Matte anodized finish for corrosion resistance
• Sensored and sensorless operation
• Low-resistance HD solder tabs
• Rebuildable design with solderless sensor PCB replacement
• 4-pole neodymium sintered magnet
• Dual-plug sensor wire harness
• ABEC5 precision high-speed oversized bearings
• Designed to be paired with the RX8 GEN3 ESC

Specifications

• ESC dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
• ESC weight: 2.7oz / 76.5g
• Motor weight: 311g / 11oz
• Motor shaft: 5mm (.125") x 19mm
• Motor diameter: 40mm / 1.57" (42mm / 1.65" including fin)
• Motor length: 69mm / 2.71"
• Bearing dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
• Rotor size: 18.5mm
• Rebuildable: Yes
