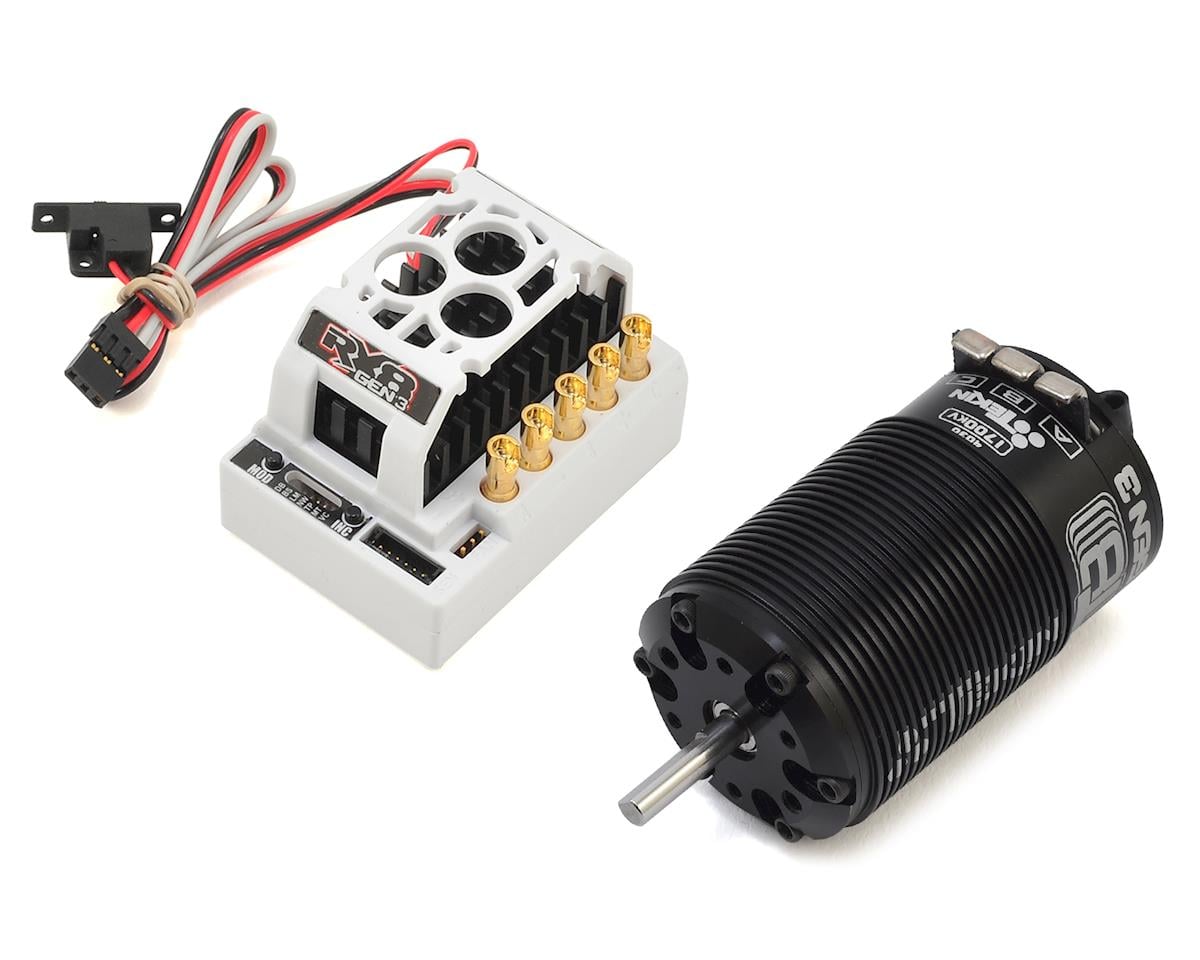

Tekin RX8 GEN3/Redline T8 GEN3 1/8 Buggy Brushless ESC/Motor Combo (1700kV)

The Tekin RX8 GEN3 1/8 scale competition brushless ESC and Redline T8 GEN3 4030 1700kV buggy motor are paired for racing applications. The RX8 GEN3 supports sensored and sensorless operation through Tekin D2 Dual Drive Mode Technology, while the T8 GEN3 motor features a stronger rotor, updated stack features and lower resistance.

RX8 GEN3 ESC Features

• Forward, brake and reverse control
• 2S-6S LiPo / 4-16S NiMH-NiCD input voltage
• Programmable 6.0v / 7.4v @ 8amps high-voltage BEC
• 300amps per phase maximum current and 1000amps per phase burst current
• Seven onboard timing profiles
• D2 Dual Drive Mode Technology for sensored and sensorless motor operation
• Data logging capability and onboard temperature indicator
• HotWire 3.0 Bluetooth connectivity, EZ Access HotWire programming port and QuickTune programming
• Adjustable torque control, throttle frequency and brake frequency
• HD gold-plated solder posts and HDAC high-density copper PCBs
• Sensor plug for precise commutation with all motors
• Self-test diagnostics, factory reset, Pit Tune mode and DGF2 digital glitch filtering
• Dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
• Weight: 2.7oz / 76.5g
• ROAR approved

Redline T8 GEN3 Motor Features

• 1700kV, rated for 5S
• CNC machined 6061 T6 billet aluminum ribbed heatsink can
• Matte anodized finish for maximum corrosion resistance
• Sensored and sensorless operation
• Low-resistance HD solder tabs
• Rebuildable design with solderless sensor PCB replacement
• 4-pole neodymium sintered magnet
• Dual-plug sensor wire harness
• ABEC5 precision high-speed oversized bearings
• Weight: 311g / 11oz
• Motor diameter: 40mm / 1.57" (42mm / 1.65" including fin)
• Motor length: 69mm / 2.71"
• Shaft dimensions: 5mm (.125") x 19mm
• Rotor size: 18.5mm

Recommended ESC Applications

1/10 4WD SCT, 1/8 4WD Buggy, 1/8 4WD Truggy, 1/8 4WD Monster Truck, 1/8 4WD Touring Car, 1/8 4WD GT, 1/8 Dirt Oval and 1/10 (and larger) Rock Crawler.
