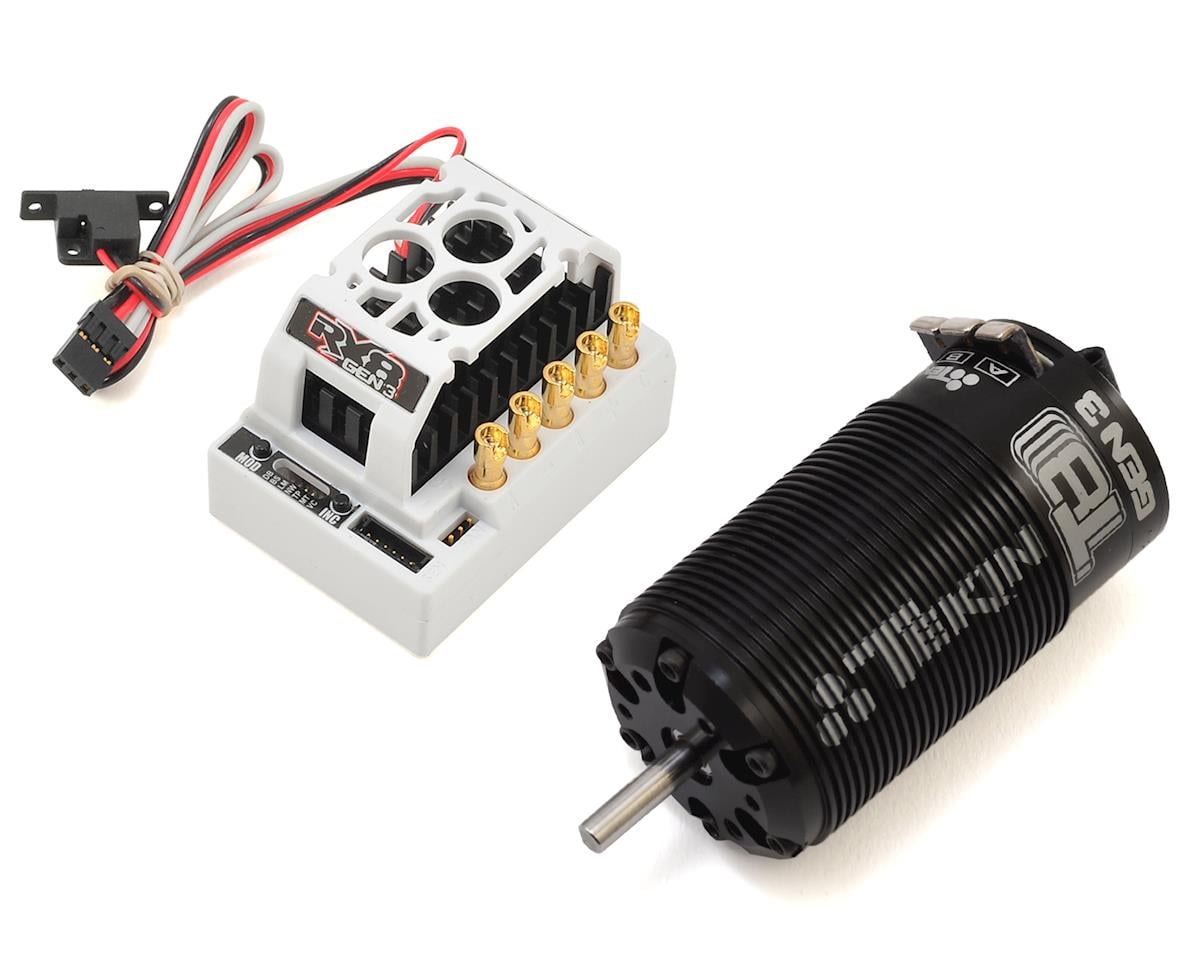

Tekin RX8 GEN3/Redline T8 GEN3 1/8 Buggy Brushless ESC/Motor Combo (1400kV)

The Tekin RX8 GEN3 and Redline T8 GEN3 combo combines a 1/8 scale brushless ESC with a 4030 1400kV buggy motor. The RX8 GEN3 supports sensored and sensorless operation through Tekin D2 Dual Drive Mode Technology, while the T8 GEN3 motor is rated for 6S use.

RX8 GEN3 ESC Features

• Forward, brake and reverse controls
• 2S-6S LiPo and 4-16S NiMH-NiCD input voltage
• 6.0v / 7.4v @ 8amps high-voltage programmable BEC
• 300amps per phase maximum current and 1000amps per phase burst current
• Seven on-board timing profile choices
• Compatible with brushless and brushed motors
• HotWire 3.0 Bluetooth connectivity and EZ Access HotWire programming port
• Datalogging capability
• Adjustable torque control, throttle frequency and brake frequency
• On-board temperature indicator
• Sensor plug for precise commutation with all motors
• Self-test diagnostics, factory reset, Pit Tune Mode, QuickTune programming and one-touch radio calibration
• HDAC high-density copper PCBs and HD gold-plated solder posts
• ROAR approved

Redline T8 GEN3 Motor Features

• 1400kV rating for 6S
• Sensored and sensorless operation
• CNC machined 6061 T6 billet aluminum ribbed heatsink can
• Matte anodized finish for maximum corrosion resistance
• Low-resistance HD solder tabs
• Rebuildable design with solderless sensor PCB replacement
• 4-pole neodymium sintered magnet
• Dual-plug sensor wire harness
• ABEC5 precision high-speed oversized bearings
• Designed to be paired with the RX8 GEN3 ESC

Specifications

• RX8 GEN3 dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
• RX8 GEN3 weight: 2.7oz / 76.5g
• Brushless motor limits: 2S - No Limit; 3S - 4000kV; 4S - 3500kV; 5S - 2200kV; 6S - 2200kV
• T8 GEN3 weight: 311g / 11oz
• Motor diameter: 40mm / 1.57" (42mm / 1.65" including fin)
• Motor length: 69mm / 2.71"
• Shaft dimensions: 5mm (.125") x 19mm
• Bearing dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
• Rotor size: 18.5mm
• Rebuildable: Yes
