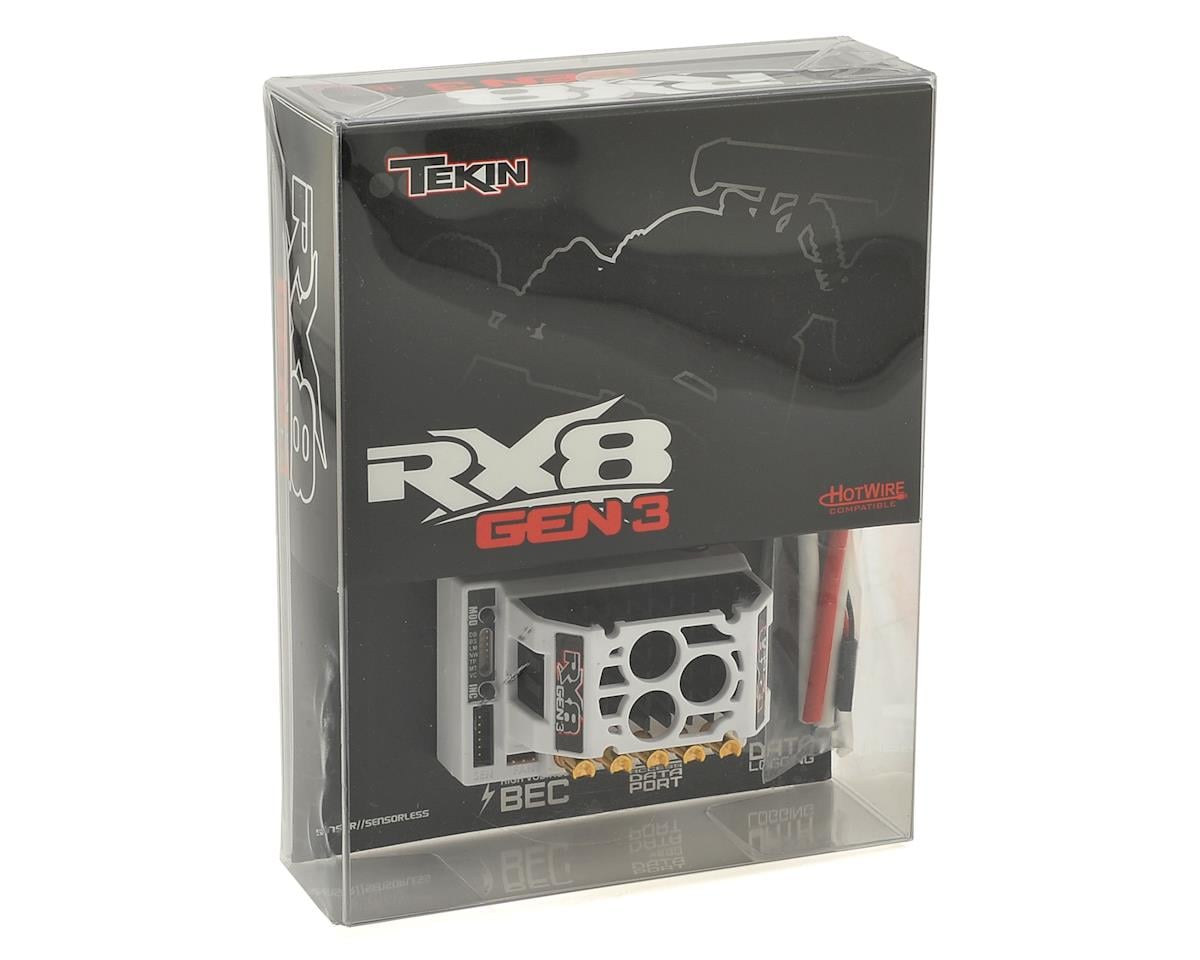

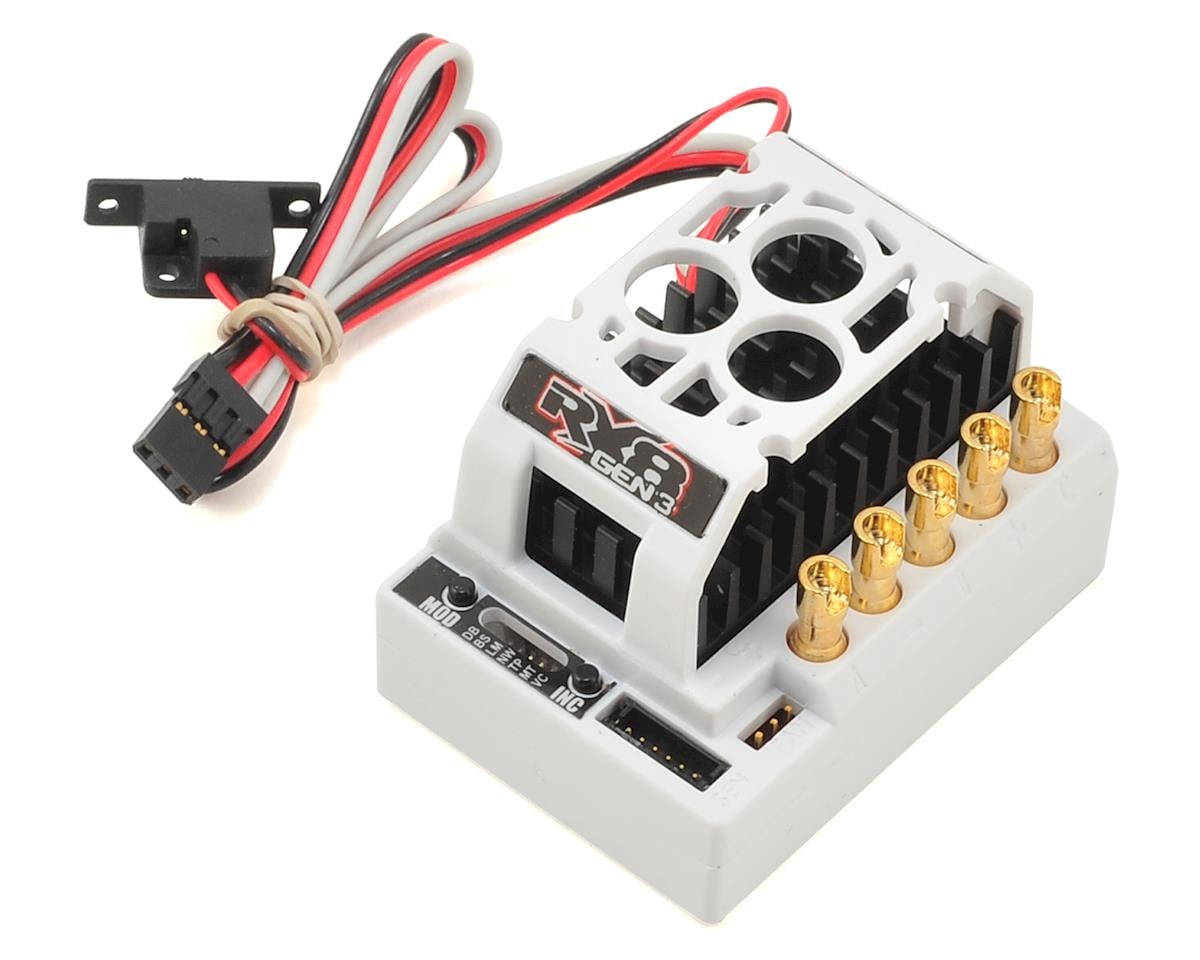

Tekin RX8 GEN3 1/8 Competition Brushless ESC

The Tekin RX8 GEN3 1/8 Competition Brushless ESC is designed for 1/8 scale racing and supports both sensored and sensorless motor operation through Tekin D2 Dual Drive Mode Technology. It features a programmable high-voltage BEC, data logging, timing profiles, LiPo voltage cutoffs, HotWire 3.0 Bluetooth connectivity, and a compact footprint for installation on a range of chassis.

Features

• Updated HD gold-plated solder posts
• Adjustable torque control
• Adjustable throttle and brake frequencies
• HD high-voltage programmable BEC
• Ultra-smooth and precise throttle and braking control
• Compatible with brushless and brushed motors
• Datalogging capability
• EZ Access HotWire programming port
• HotWire interface for advanced programming and updating
• D2 Dual Drive Mode Technology
• On-board temperature indicator
• HDAC high-density copper PCBs
• Sensor plug for precise commutation with all motors
• Self-test diagnostics and factory reset
• Pit Tune Mode
• DGF2 Digital Glitch Filtering V2
• QuickTune programming
• One-touch radio calibration

Specifications

• Controls: Forward/Brake/Reverse
• Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
• BEC: 6.0v / 7.4v @ 8amps
• Motor Limit, Brushless Mode: 2S - No Limit; 3S - 4000kV; 4S - 3500kV; 5S - 2200kV; 6S - 2200kV
• Motor Limit, Brushed Mode: No Limit
• Max Current: 300amps per phase*
• Burst Current: 1000amps per phase*
• Timing Profiles: 7 choices (on board)
• Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
• Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
• Dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
• Weight: 2.7oz / 76.5g

Recommended Applications

• 1/10 4WD SCT
• 1/8 4WD Buggy
• 1/8 4WD Truggy
• 1/8 4WD Monster Truck
• 1/8 4WD Touring Car
• 1/8 4WD GT
• 1/8 Dirt Oval
• 1/10 (and larger) Rock Crawler

*Per Manufacturer Specs.
