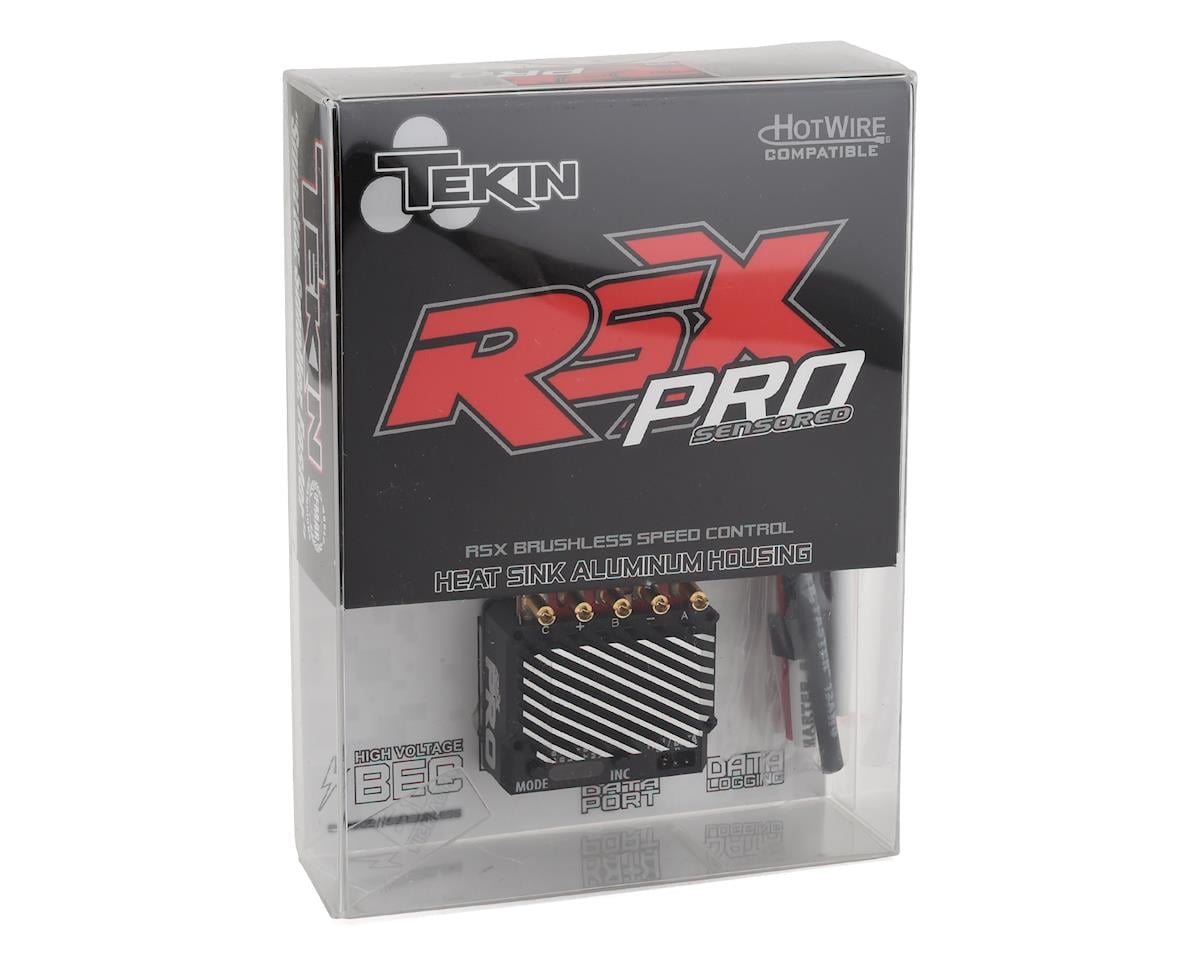

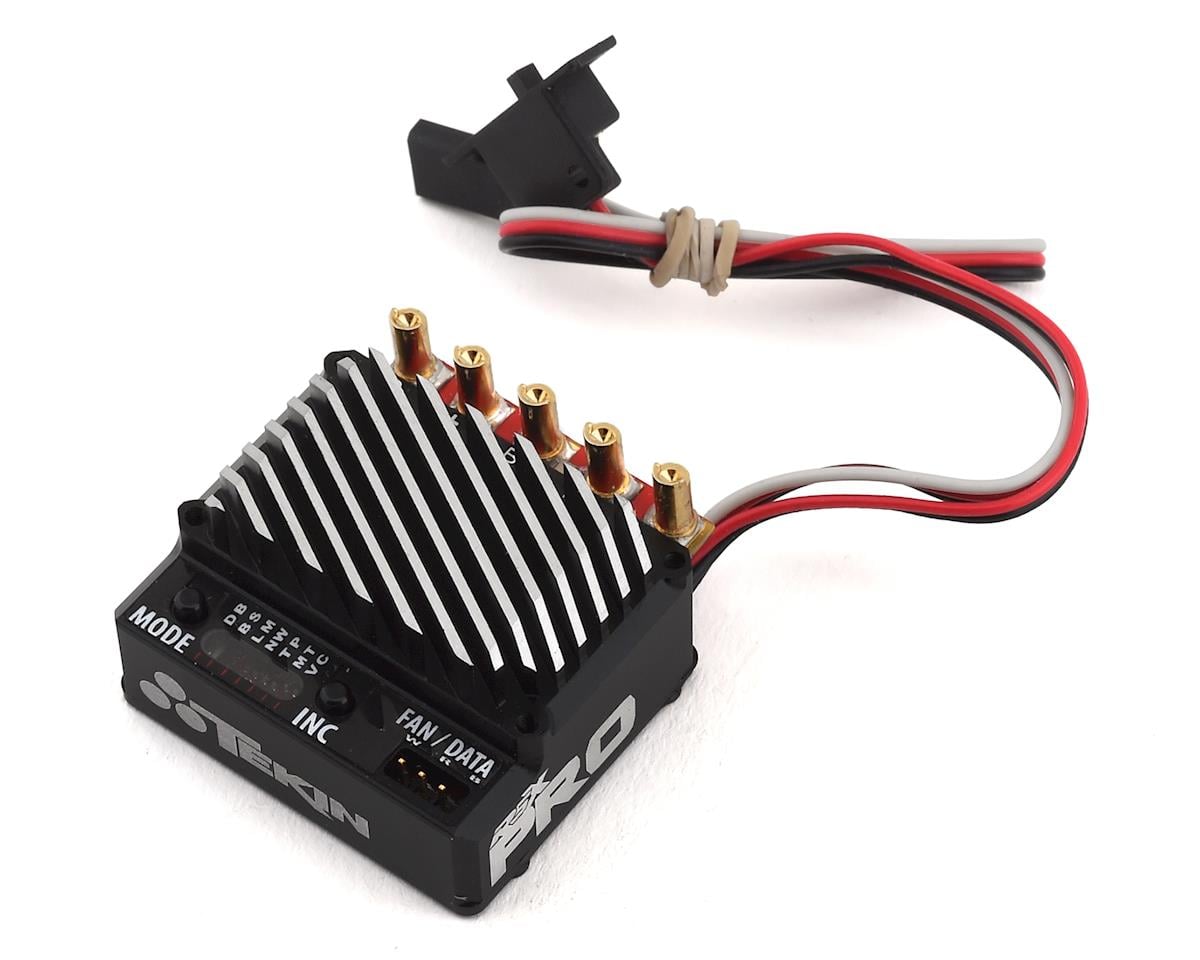

Tekin RSX Pro Sensored Brushless ESC

The Tekin RSX Pro Sensored Brushless ESC is designed for 1:10th scale modified competition, combining precise throttle and braking control with adjustable racing features, data logging capability, and a high voltage programmable BEC.

Features

• Billet 6061-T6 aluminum heat sink housing
• Redesigned FET package and HDAC high-density copper PCBs
• HD easy solder posts
• Detachable fan shroud system for cooling in extreme racing conditions
• QuickTune™ one-touch programming
• Adjustable torque control, throttle frequencies, and brake frequencies; requires HotWire™ sold separately
• HD high voltage programmable BEC; requires HotWire™ sold separately
• HotWire™ programming port; requires HotWire™ sold separately
• On-the-fly drag brake adjustment and optional 3rd channel drag brake adjustment
• Data logging capability; requires HotWire™ sold separately
• Sensor checker, on-board temperature indicator, and ESC self diagnostics with error codes
• Fully proportional forward/brake/reverse operation
• Brushless and brushed motor drive
• Sensored or sensorless operation
• LiPo safe with custom voltage cutoffs
• Sensor plug for precise commutation
• Ultra-smooth and precise throttle and braking control

Specifications

• Controls: Forward/Brake/Reverse
• Input Voltage: 2S-3S LiPo / 4-12S NiMH-NiCD
• Motor Limit, Brushless Mode: 2S - 2.5T 2-pole 36mm Can / 3S - 10.5T 2-pole 36mm Can / 3500kV
• Motor Limit, Brushed Mode: 2S - 6 Turn 36mm Can / 3S - 12 Turn 36mm Can
• Max Current: 210amps per phase*
• HV Adjustable BEC: 6.0v / 7.4v @ 5.5amps
• Dimensions: 1.21 x 1.43 x .82" / 31.2 x 37.2 x 21mm
• Weight: 1.4oz / 40g
