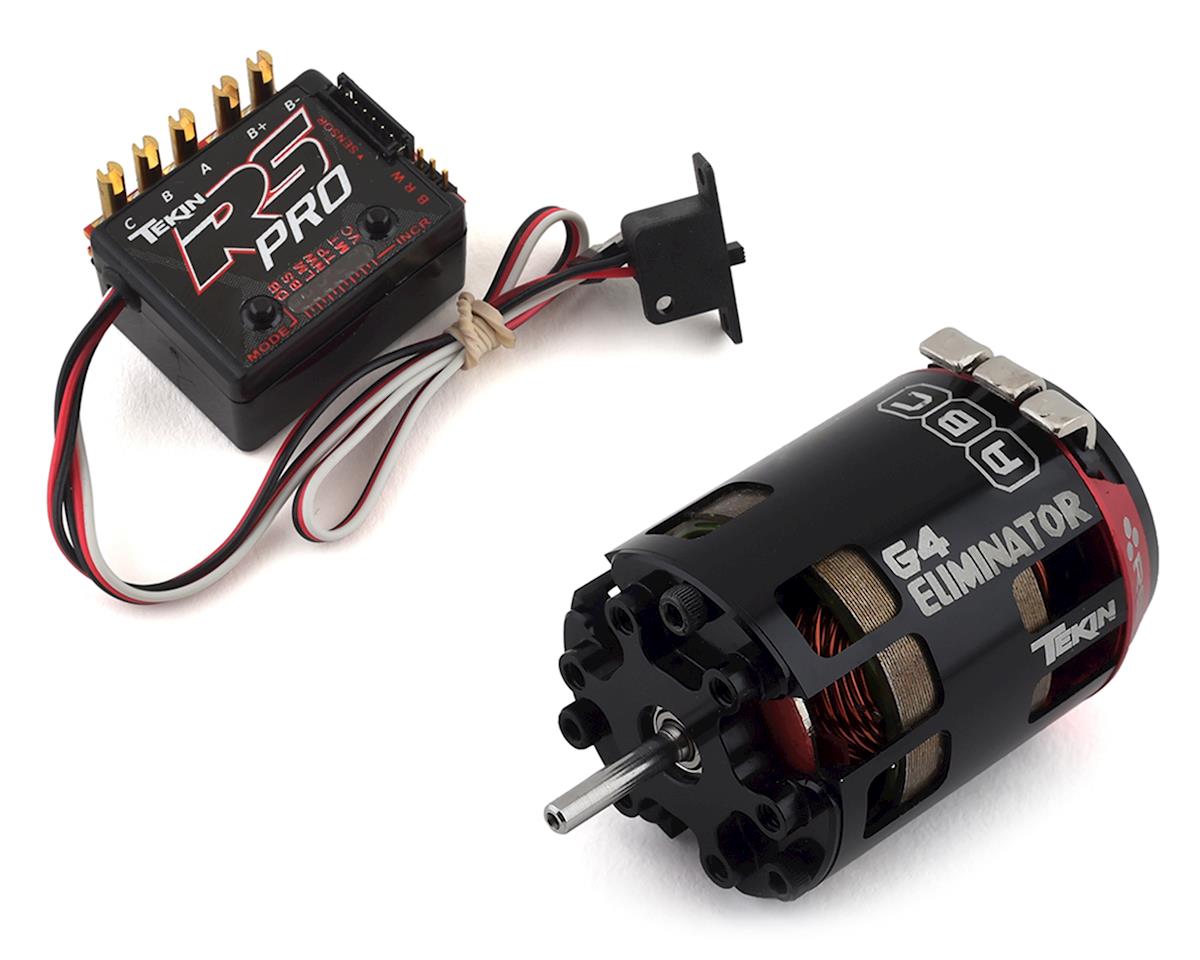

Tekin RS Pro Black Sensored Brushless ESC/Gen4 Eliminator Motor Combo (4.5T)

The Tekin RS Pro Black Sensored Brushless ESC and Gen4 Eliminator Motor Combo pairs an ultra-low-resistance ESC with a 4.5T drag racing motor. The system is designed for 1S-2S spec classes and drag racing, with tunable electronics and a rebuildable motor.

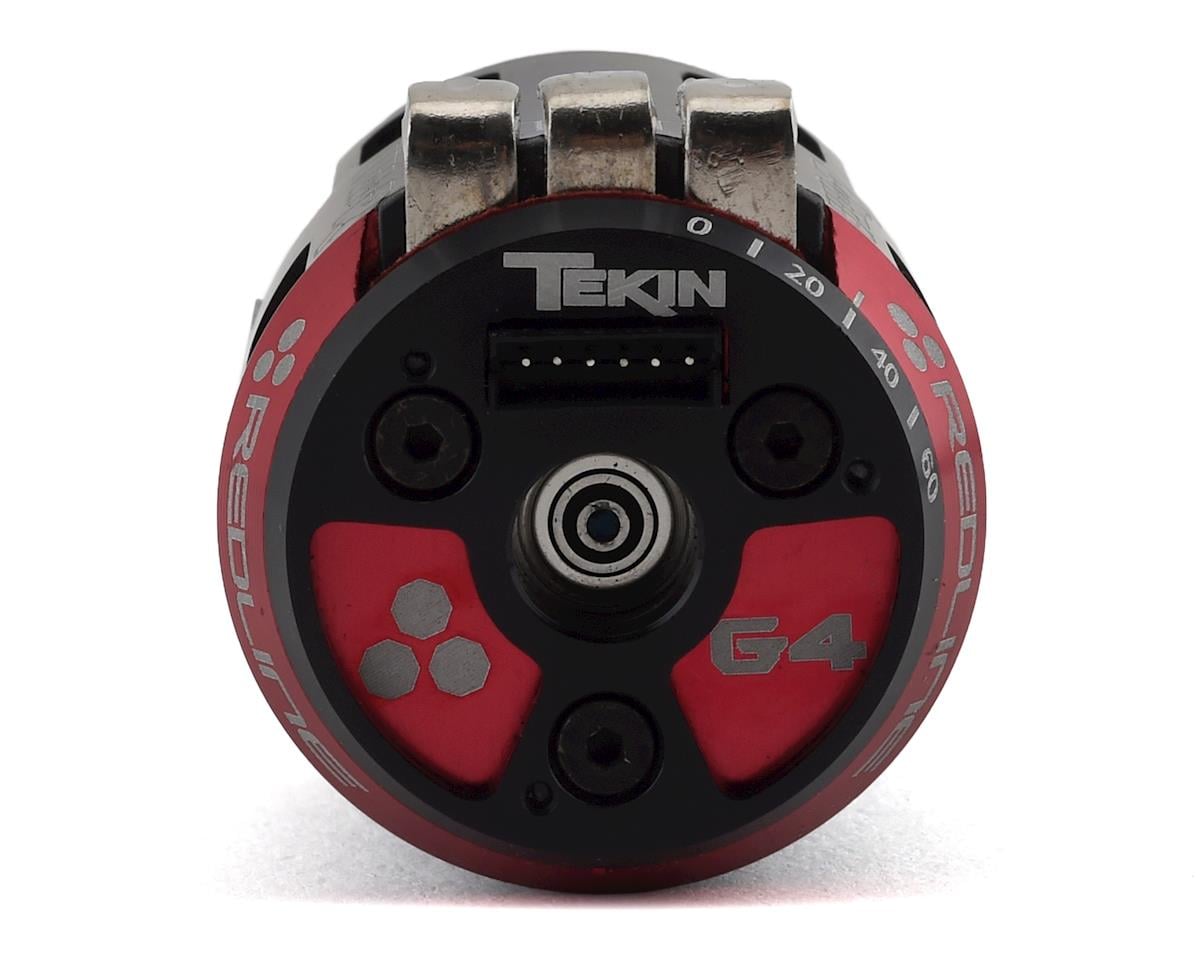

Gen4 Eliminator 4.5T Motor

• Purpose-built drag racing motor with an oversized Ultra Torque rotor
• Precision-stamped and pressed stator
• Hand-wound with high purity copper wire
• Machined from 6061-T6 aluminum
• Rebuildable design with optional rotors available
• Input voltage: 1-2S LiPo
• Weight: 5.1oz / 145g
• Shaft dimensions: 3.18mm (1/8") x 15.3mm
• Motor diameter: 35.85mm / 1.40"
• Motor length: 50.25mm / 1.978"
• Maximum operating temperature: 180°F / 82°C
• Rotor size: 13mm TORQUE RED
• Bearing dimensions: Front: 4x13x5mm; Rear: 1/8x3/8x5/32"

RS Pro Black Edition ESC

• Ultra Low Resistance design for drag racing
• QuickTune™ one-touch programming
• Adjustable throttle and brake frequencies
• High-voltage programmable BEC
• HotWire™ programming port
• Data logging capability
• On-board sensor checker and temperature indicator
• ESC self-diagnostics with error codes
• Fully proportional forward/brake/reverse operation
• Sensored or sensorless operation
• LiPo safe with custom voltage cutoffs
• Sensor plug for precise commutation
• Lightweight chassis design with HDAC high-density copper PCBs
• Input voltage: 1-3S LiPo / 4-9S NiMH-NiCD
• Weight: 1.23oz / 35g
• Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm
• BEC: 6.0 / 7.4V @ 5.5amps
• Amperage: 480Amps per phase*
• ON resistance: .000096ohm*

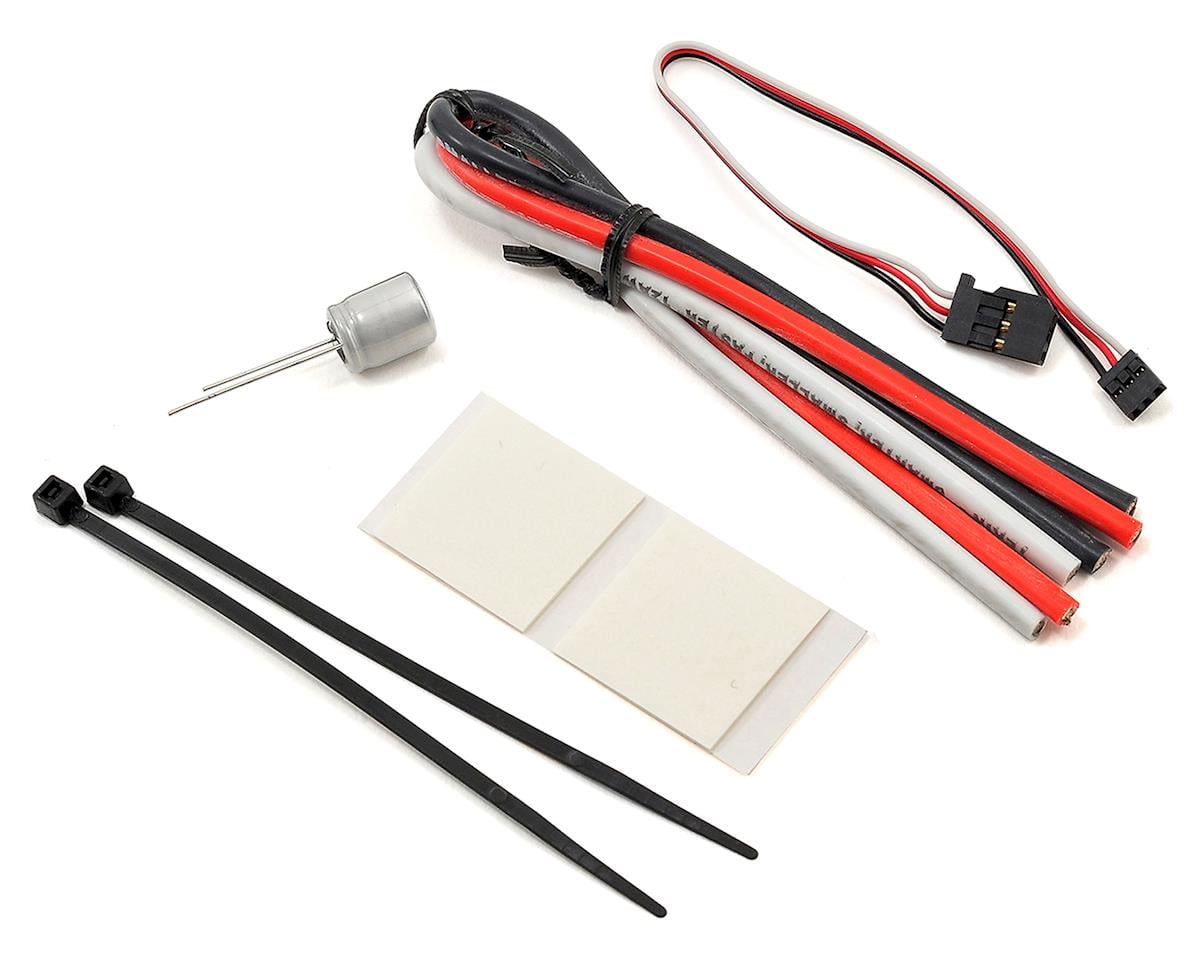

ULR FlexWire is included with every Black Edition ESC. HotWire™ is required for programming and sold separately.
