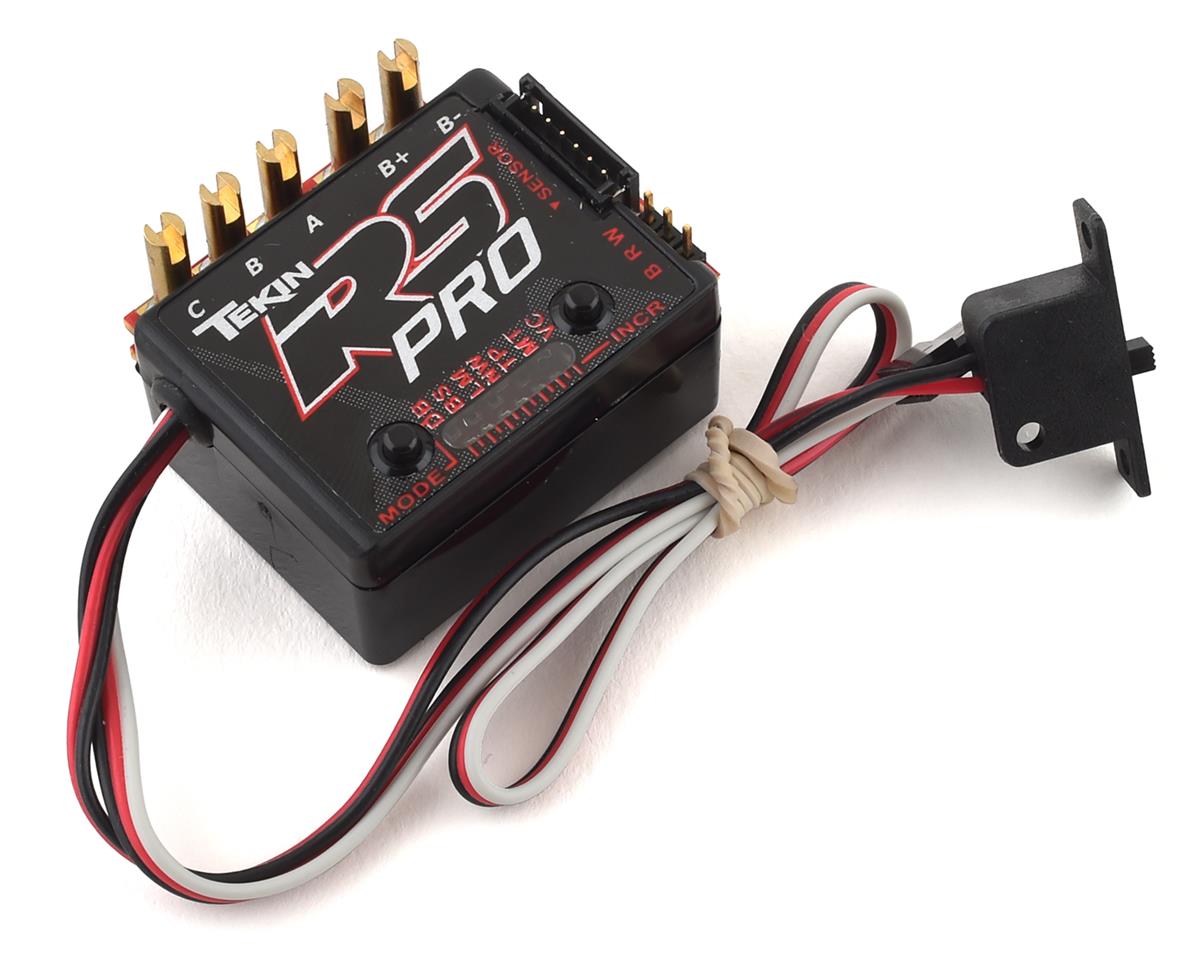

Tekin RS Pro Black Edition BL Sensored/Sensorless ESC

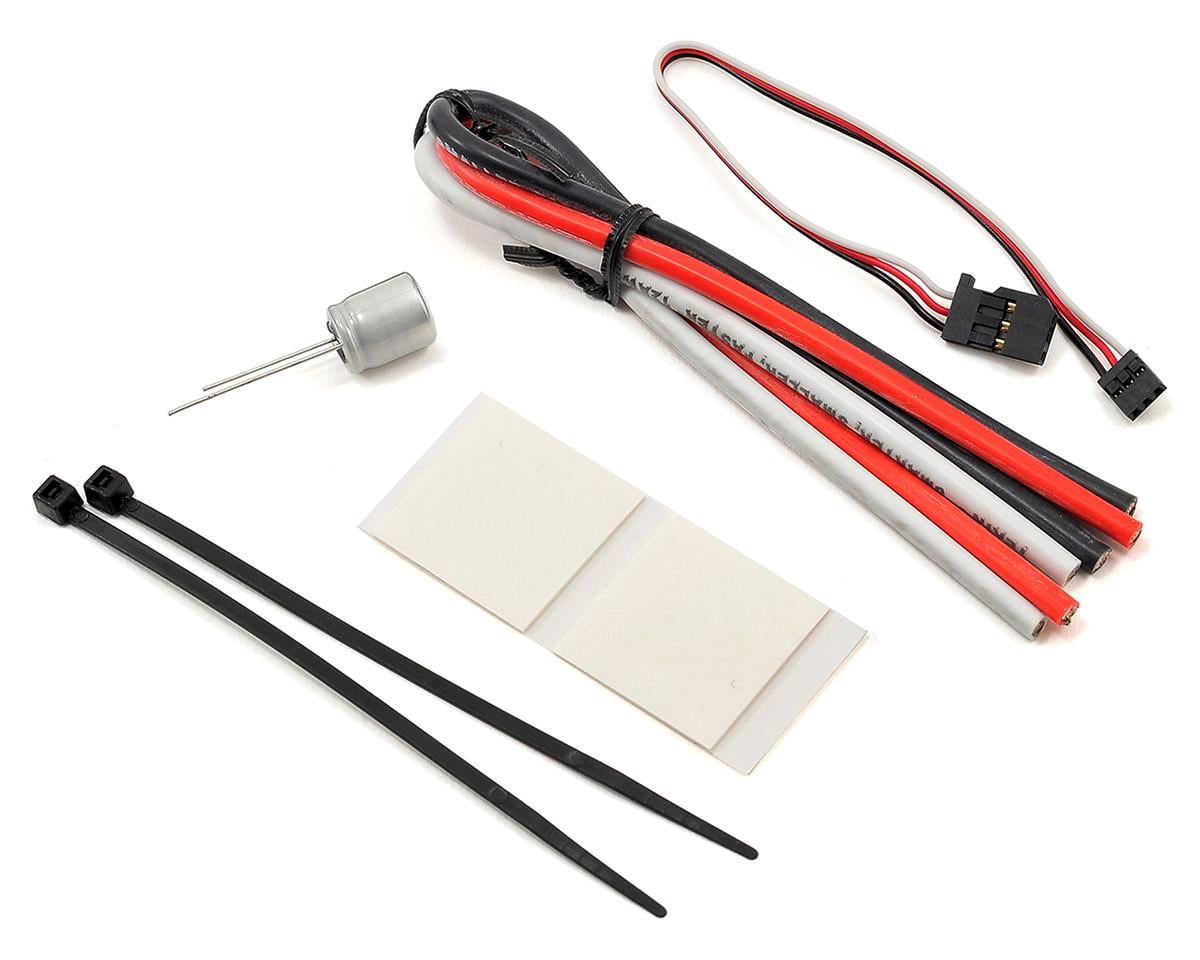

The Tekin RS Pro Black Edition BL Sensored/Sensorless ESC uses a dual power board design with Ultra Low Resistance circuitry for smooth control and reliable power delivery. It is designed for 1S-2S Spec Classes and Drag Racing, with ULR FlexWire included.

Features

• ULR: Ultra Low Resistance Design
• Double Stack FET Boards
• Specifically designed for Spec and Stock Racing
• Built-in Booster
• 3rd Channel Input for on-the-fly drag brake adjustments
• QuickTune™ one-touch programming
• Adjustable torque control, throttle frequency and brake frequency
• High voltage programmable BEC
• HotWire™ programming port
• Data logging capability
• On-board sensor checker and temperature indicator
• ESC self-diagnostics with error codes
• Fully proportional forward, brake and reverse
• Brushless and brushed motor drive
• Sensored or sensorless operation
• LiPo safe with custom voltage cutoffs
• Lightweight chassis design with HDAC: High Density Copper PCBs
• Ultra-smooth and precise throttle and braking control

Specifications

• Controls: Forward/Brake/Reverse
• Input Voltage: RS PRO: 1S-3S LiPo / 4-9S NiMH-NiCD*
• Motor Limit, Brushless Mode: 1S - 2.5T 2-pole 36mm Can; 2S Drag Racing - 2.5T 2-pole 36mm Can; 2S Track Racing - 8.5T 2-pole 36mm Can
• Motor Limit, Brushed Mode: 1S - 6 Turn 36mm Can; 2S - 6 Turn 36mm Can
• Max Current: 560amps per phase**
• ON Resistance: .000096ohm**
• BEC: 6.0v / 7.4v @ 5.5amps
• Dimensions: 1.0 x 1.3 x .68" / 24.5 x 33 x 17.25mm
• Weight: 1.23oz / 35g

This ESC is not intended for use with the 6.5T SPEC-R motor or modified track racing applications. For 1:10 scale 2WD/4WD Buggy, Stadium Truck and Modified Touring Car setups, Tekin recommends the RSX Modified ESC.
