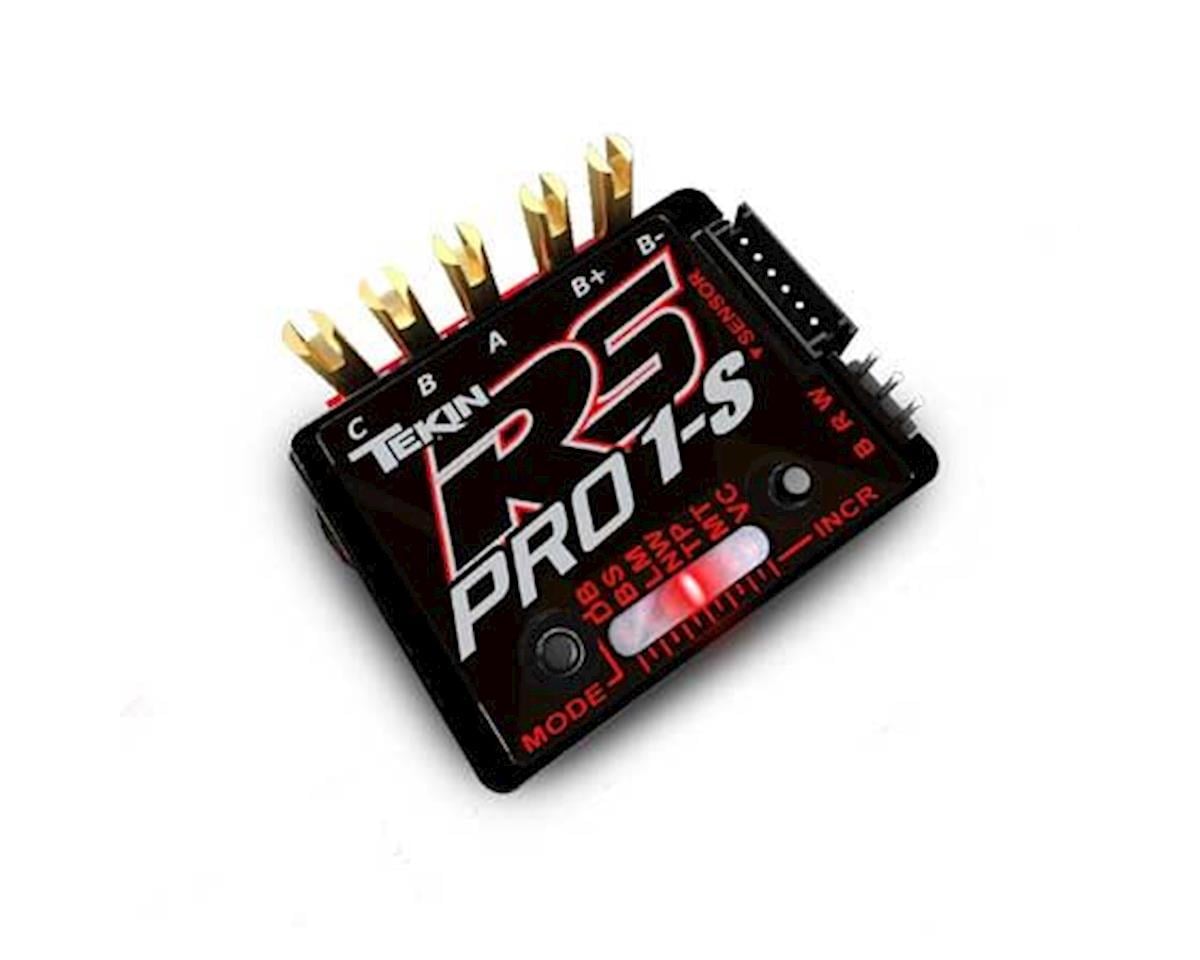

Tekin RS Pro Black Edition BL 1S 1/12 Sensored/Sensorless Brushless ESC

The Tekin RS Pro Black Edition 1S brushless ESC is designed for 1S 1/12 scale spec classes, combining Ultra Low Resistance circuitry with sensored or sensorless operation. It provides proportional forward, brake and reverse control, adjustable throttle and brake frequencies, programmable BEC output, and onboard diagnostic features.

Features

• Ultra Low Resistance design for spec and stock racing
• QuickTune™ one-touch programming
• Adjustable throttle and brake frequencies
• High-voltage programmable BEC
• HotWire™ programming port
• Data logging capability
• Onboard sensor checker and temperature indicator
• ESC self-diagnostics with error codes
• Brushless and brushed motor drive
• Sensored or sensorless operation
• LiPo safe with custom voltage cutoffs
• Sensor plug for precise commutation
• Lightweight chassis design
• HDAC high-density copper PCBs
• Ultra-smooth and precise throttle and braking control
• ULR FlexWire included

Specifications

• Controls: Forward/Brake/Reverse
• Input Voltage: RS Pro 1-S: 1S LiPo ONLY / 4S NiMH-NiCD
• Motor Limit, Brushless Mode 2S: 36mm Can - 2-Pole
• Motor Limit, Brushless Mode 3S: 36mm Can - 2-Pole
• Motor Limit, Brushed 2S: 36mm Can - 540 & 550
• Motor Limit, Brushed 3S: 36mm Can - 540 & 550
• Amperage: 480Amps per phase*
• ON Resistance: .000096ohm*
• BEC: 6.0 / 7.4V @ 5.5amps
• Weight: 1.23oz / 35g
• Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm

*Requires HotWire™ sold separately.
