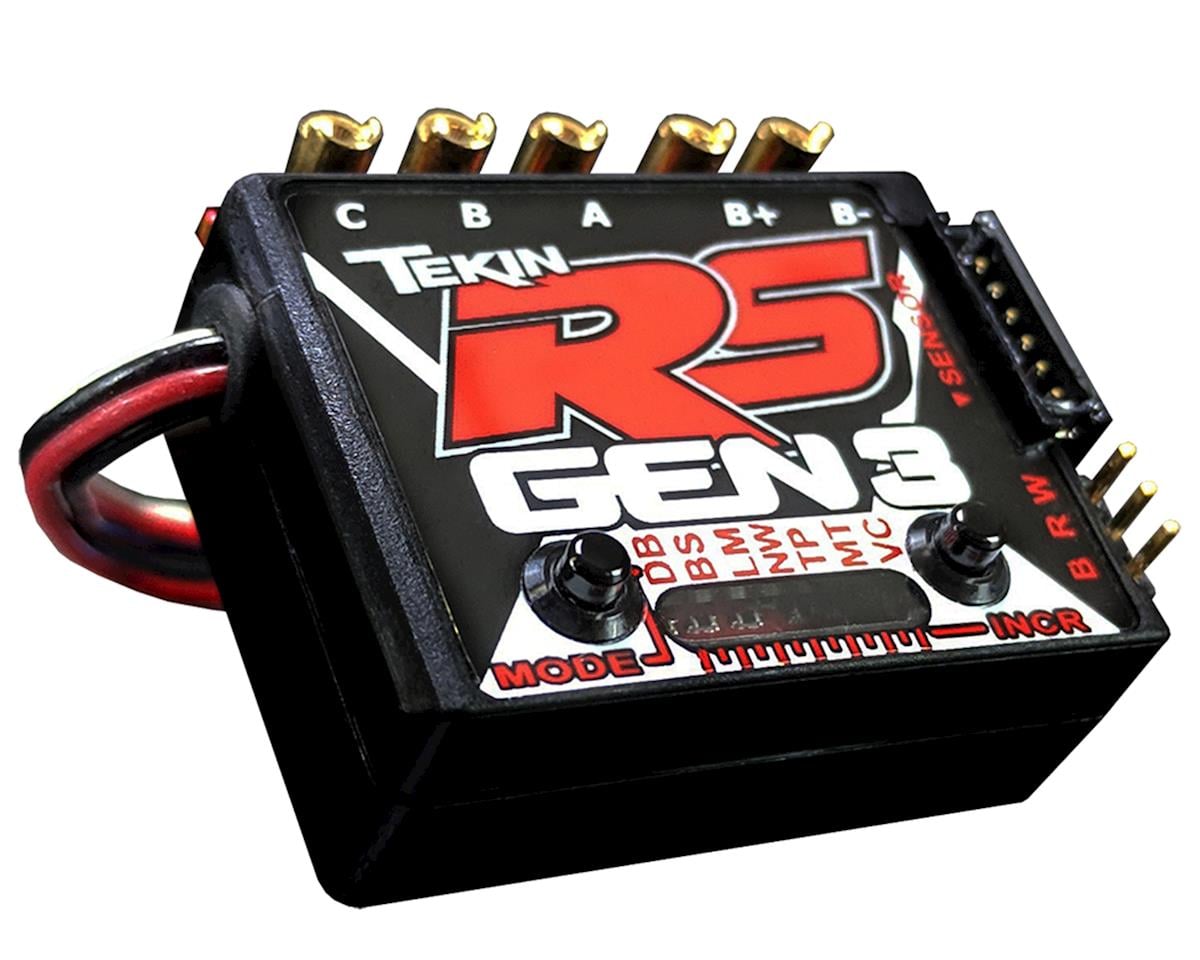

Tekin RS Gen3 Sensored Brushless ESC

The Tekin RS Gen3 Sensored Brushless ESC provides programmable control for brushed and brushless power systems, with sensored or sensorless operation, data logging, onboard diagnostics, and adjustable throttle and braking features.

Features

• QuickTune™ One Touch Programming
• New HD Solder Post Design
• 3rd Channel Input for On-the-Fly Drag Brake Adjustments
• Adjustable Torque Control
• Adjustable Throttle and Brake Frequencies
• High Voltage Programmable BEC
• HotWire™ Programming Port
• Data Logging Capability
• Sensor Checker On-Board Temperature Indicator
• ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• Brushless and Brushed Motor Drive
• Sensored or Sensorless Operation
• LiPo Safe with Custom Voltage Cutoffs
• Sensor Plug for Precise Commutation
• Lightweight Chassis Design
• HDAC: High Density Copper PCB's
• Ultra-smooth and Precise Throttle and Braking Control

Note: HotWire™ is sold separately.

Specifications

• Controls: Forward/Brake/Reverse
• Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD
• Motor Limit, Brushless Mode: 2S - 8.5T 2-pole 36mm Can, 3S - 10.5T 2-pole 36mm Can
• Motor Limit, Brushed Mode: 2S - 10T 36mm Can, 3S - 20T 36mm Can
• Max Current: 140amps per phase*
• BEC: 6.0v / 7.4v @ 5.5amps
• Dimensions: 1.0 x 1.3 x .51" / 24.5 x 34 x 12.9mm
• Weight: .83oz / 23.5g
