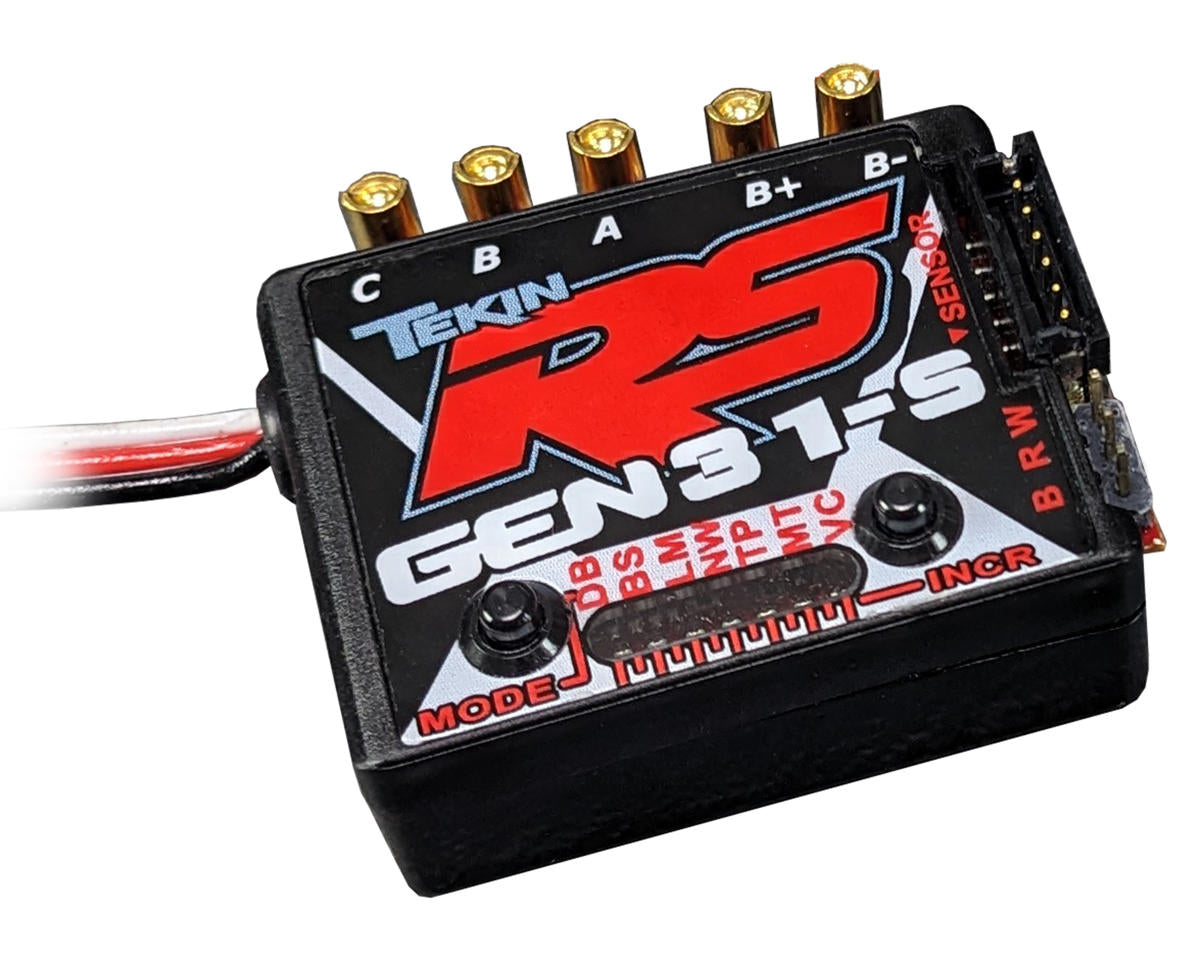

Tekin RS Gen3 BL 1S 1/12 Sensored Brushless/Brushed ESC

The Tekin RS Gen3 BL 1S 1/12 Sensored Brushless/Brushed ESC is designed for 1/12 applications and supports both sensored brushless and brushed motors. It features QuickTune™ programming, adjustable torque control, HotWire™ compatibility, data logging, diagnostics, and a programmable high-voltage BEC.

Features

• QuickTune™ one-touch programming
• HD solder post design for easy connections
• Adjustable torque control
• Third channel input for drag brake adjustments
• HotWire™ compatibility for custom tuning
• Data logging and diagnostics capabilities
• Sensor plug for precise operation
• High voltage programmable BEC
• LiPo safe with customizable voltage cutoffs
• Brushless and brushed motor support

Specifications

• Suggested Application: 1/12
• Motor Type: Brushless Sensored/Brushed
• Input Voltage: 1S LiPo/4-Cell NiMH
• Continuous Current: -
• Burst Current: 140A per phase
• Dimensions (LxWxH): 1.0x1.3x0.51in (26x34x12.9mm)
• Weight: 0.83oz (23.5g)
• Motor Limits: Brushless 10.5T 2-pole 36mm can/Brushed 12T 36mm can
• BEC Voltage: 6.0-7.4V
• BEC Continuous Current: 5.5A
• BEC Peak Current: -
• Motor Connector: Solder Post
• Battery Connector: Solder Post
• Motor Wire: -
• Battery Wire: -
• Throttle Wire: Servo Wire
• Programming: QuickTune™ One Touch Programming/USB/Bluetooth

Includes

• (1) RS Gen3 BL 1S 1/12 Sensored Brushless/Brushed ESC (Black Edition)
