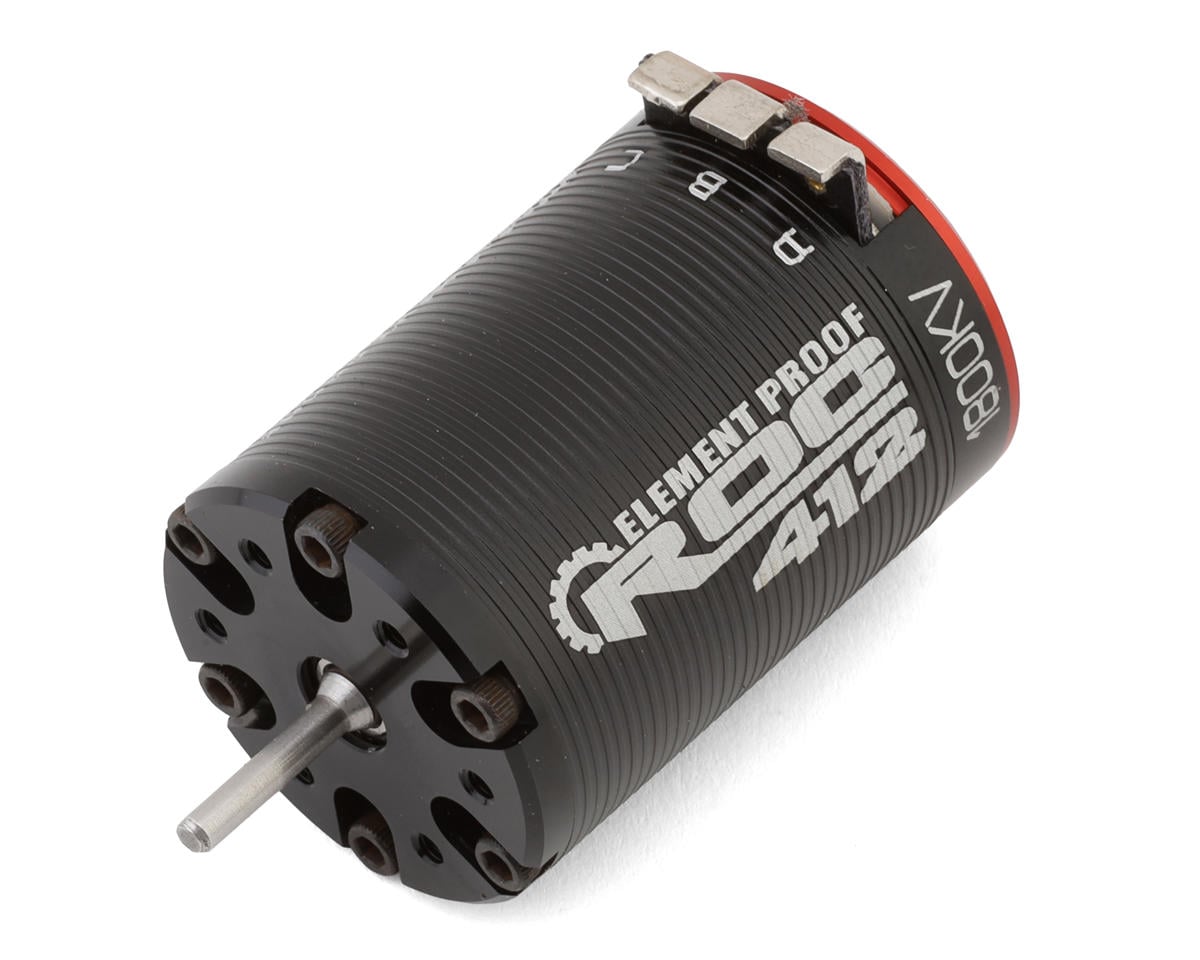

Tekin ROC412 Element Proof 4-Pole Sensored Brushless Rock Crawler Motor (1800kV)

The Tekin ROC412 Element Proof 4-Pole Sensored Brushless Rock Crawler Motor delivers 1800kV performance for heavier trail, rock racing and crawling rigs. Its Element Proof design is built to withstand water splashes, mud and snow when used with proper maintenance.

Features

• 4-pole, 12-slot high-torque motor design
• 18.5mm rotor for increased torque and braking power
• CNC-machined 6061-T6 billet aluminum heatsink can
• Rebuildable design with high-purity copper windings
• Precision engineered for maximum energy conversion

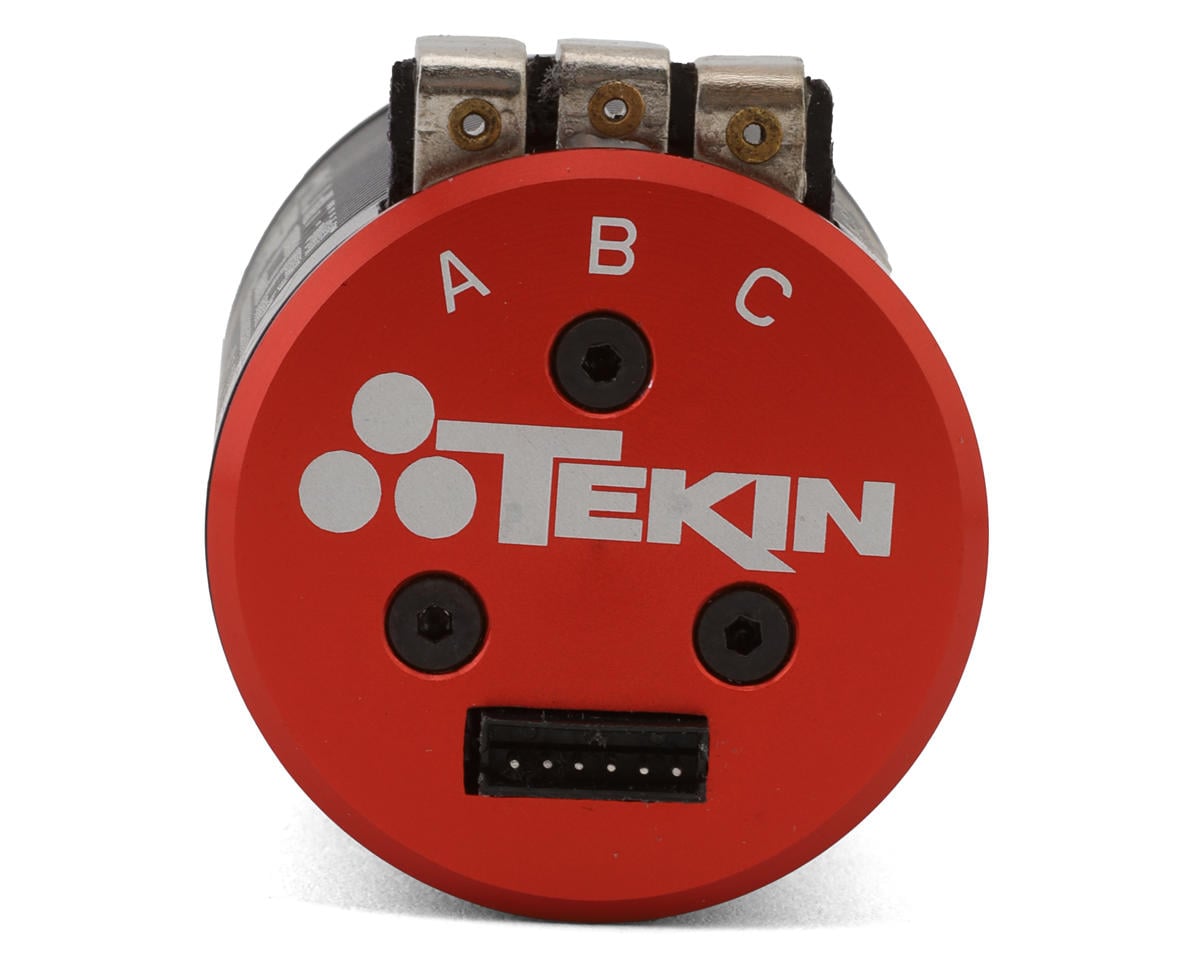

• Dual-plug sensor wire harness for use with sensored and sensorless systems
• High-RPM ABEC5 oversized bearings
• Neodymium sintered magnets

Specifications

• Input voltage: 3S - 1800kV; 4S - 1800kV; 5S - 1800kV
• Weight: 180g / 6.3oz
• Shaft dimensions: 3.2mm (1/8") x 15.3mm
• Motor diameter: 35.8mm / 1.41"
• Motor length: 52.5mm / 2.10"
• Bearing dimensions: Front: 5 x 14 x 5mm; Rear: 5 x 11 x 5mm
• Rotor size: 18.5mm
• Rebuildable: Yes

Element Proof Care

The ROC412 EP is designed to withstand water splashes and is not intended for operation while submerged in liquid. Dielectric grease must be used on the sensor and fan port connections to help protect them from shorting. After-run maintenance is important whenever the motor encounters water. Warranty does not cover neglect, lack of maintenance, bearings, rust or damage caused by submersion.
