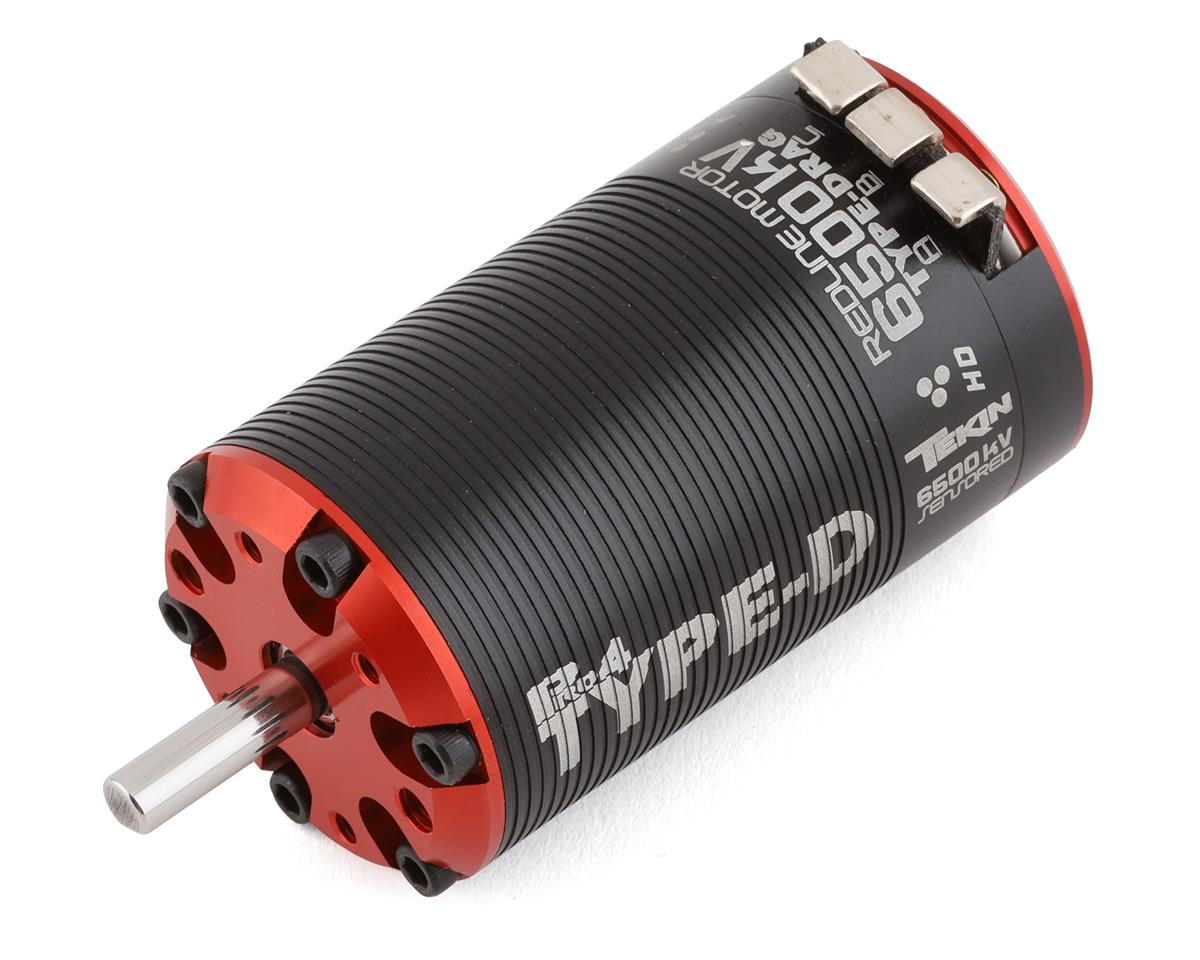

Tekin Pro4 Type-D Sensored 4-Pole Brushless No Prep Drag Motor (6500kV)

The Tekin Pro4 Type-D is a sensored 4-pole, 12-slot brushless motor built specifically for 1:10 no-prep drag racing. Its oversized Ultra Torque HD rotor delivers high power and torque across the RPM range, while the rebuildable design supports long-term serviceability.

Features

• 4-pole, 12-slot high-torque motor design
• 1:10 drag racing-specific HD 550 size design
• CNC-machined 6061-T6 billet aluminum heat sink can
• Neodymium sintered magnets
• High-purity copper windings

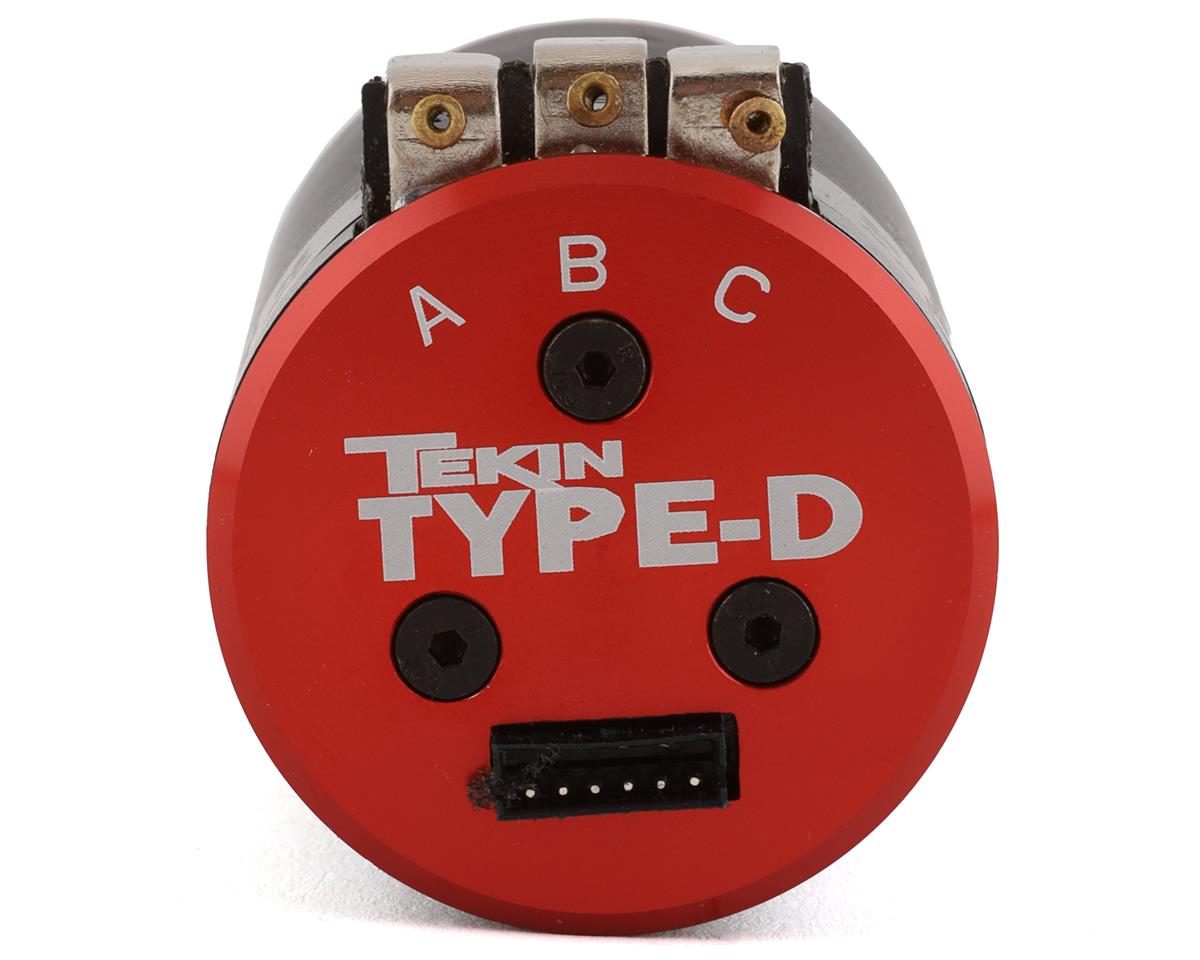

• Low-resistance, high-power solder tabs

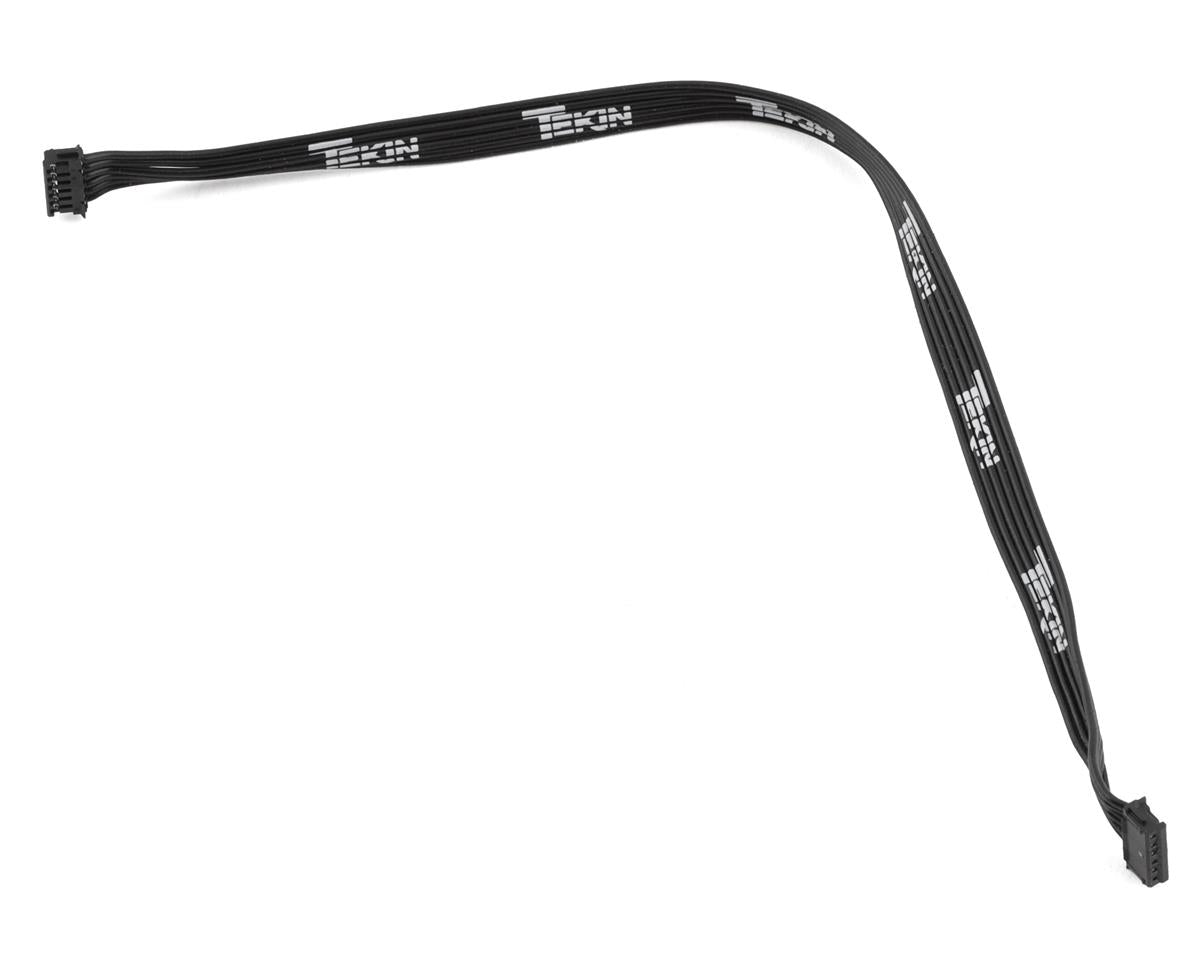

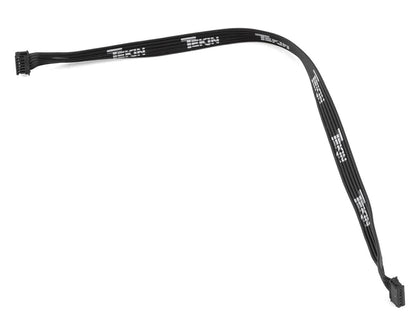

• Dual-plug sensor wire harness for sensored and sensorless systems
• Anodized end-bell plates
• High-RPM ABEC-5 precision bearings
• Oversized front bearing
• Rebuildable design

Specifications

• Voltage Limit: 2S LiPo
• KV: 6500
• Weight: 7.8oz (221g)
• Shaft Dimensions: 5mm (.196") x 15.3mm
• Motor Diameter: 1.40" (35.85mm)
• Motor Length: 2.50" (62.5mm)
• Max Operating Temperature: 180°F (82°C)
• Max RPM: 65,000
• Bearing Dimensions: Front: 5 x 14 x 5mm; Rear: 5 x 11 x 5mm
• Rotor Size: 18.5mm
• Rebuildable: Yes
• Mounting Pattern: 3mm @ 1" (25.4mm) and 4mm @ 1" (25.4mm)
