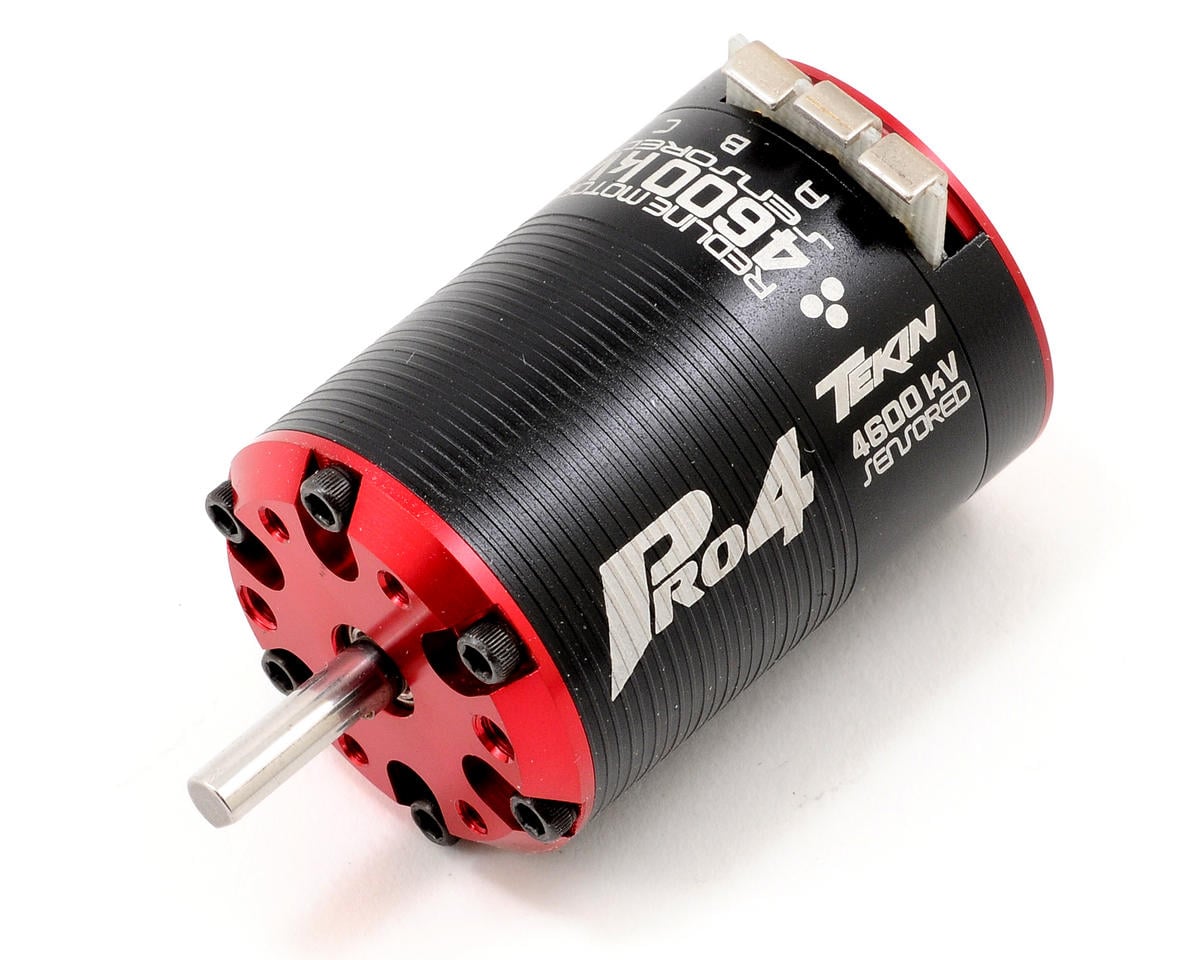

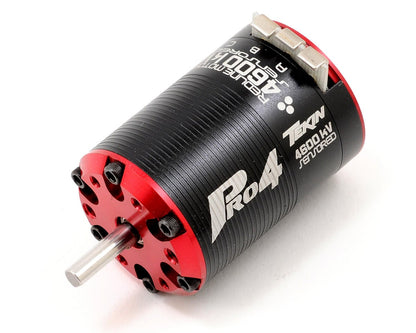

Tekin Pro4 4-Pole Brushless Motor w/5mm Shaft (4,600kV)

The Tekin Pro4 4-Pole Brushless Motor features a 4,600kV rating, 5mm shaft, and a 4-pole, 12-slot high-torque design for 4x4 short course applications. Its rebuildable construction includes a CNC machined 6061 T6 billet aluminum heatsink can, neodymium sintered magnets, high-purity copper windings, and oversized ABEC5 bearings.

Features

• 4-pole, 12-slot high-torque motor design
• CNC machined 6061 T6 billet aluminum heatsink can
• Neodymium sintered magnets
• Rebuildable design
• High-purity copper windings
• Precision engineered for maximum energy conversion
• Dual-plug sensor wire harness for use with sensored and sensorless systems
• High RPM ABEC5 oversized bearings

Specifications

• Motor Length: 2.1" (52.9mm)
• Diameter: 1.4" (35.8mm)
• Shaft: .60x.196" (15.3x5mm)
• Weight: 6.75oz (193g)
• Turns: 1Y
• Voltage: 2S
• kV: 4600
• Rotor: 18.5mm
