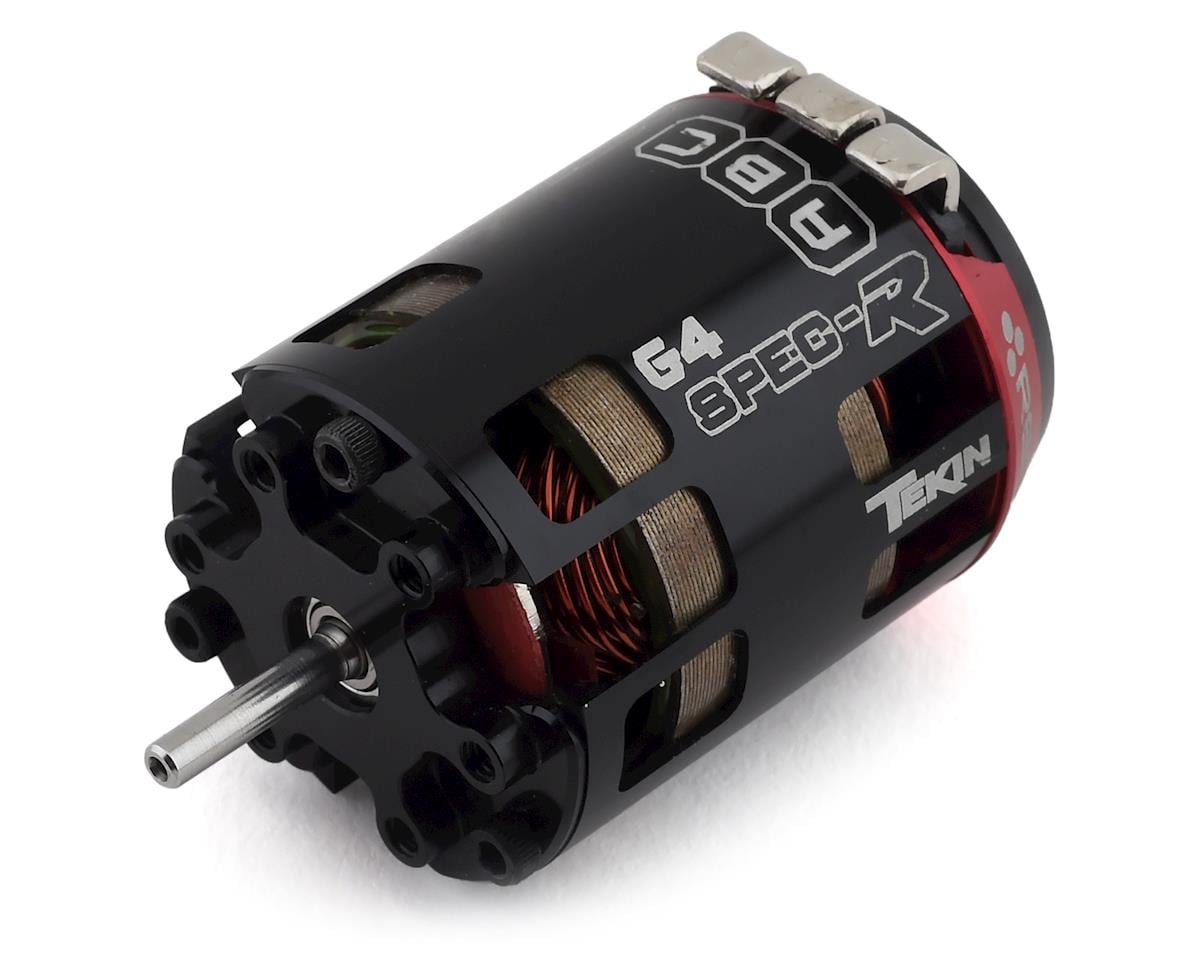

Tekin Gen4 Spec-R Sensored Brushless Motor (10.5T)

The Tekin Gen4 Spec-R Sensored Brushless Motor delivers smooth power and control across the full RPM range for on-road and off-road racing. Its redesigned stator is precision stamped and pressed to increase efficiency and reduce resistance, while high-purity copper windings maximize conductivity.

Features

• 10.5T Spec-R sensored brushless motor
• 60 Degrees Adjustable Timing Advance
• CNC machined 6061-T6 billet aluminum heat sink can
• Neodymium sintered magnet
• Low resistance, high power solder tabs
• Sensored system ready
• Anodized end-bell plates
• High RPM precision bearings with oversized front bearing
• Rebuildable design with solder-less sensor PCB replacement
• ROAR Approved

Specifications

• Weight: 5.1oz / 145g
• Shaft Dimensions: 3.18mm (1/8") x 15.3mm
• Motor Diameter: 35.85mm / 1.40"
• Motor Length: 50.25mm / 1.978"
• Max Operating Temperature: 180°F / 82°C
• Front Bearing: 4x13x5mm
• Rear Bearing: 1/8x3/8x5/32"
• Rotor Size: 12.3mm BLACK - 25.5T; 12.5mm BLUE - 21.5T / 17.5T / 13.5T / 10.5T
