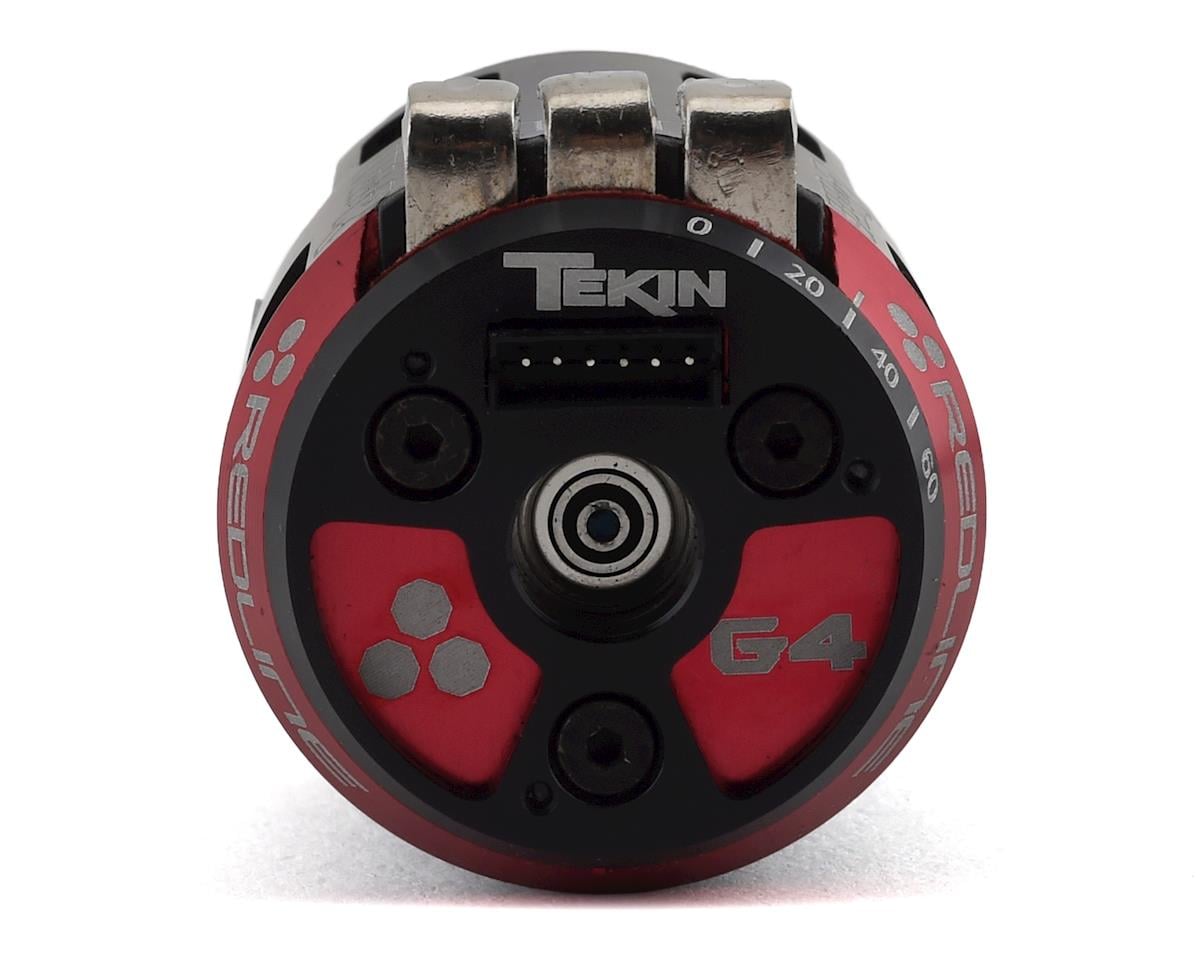

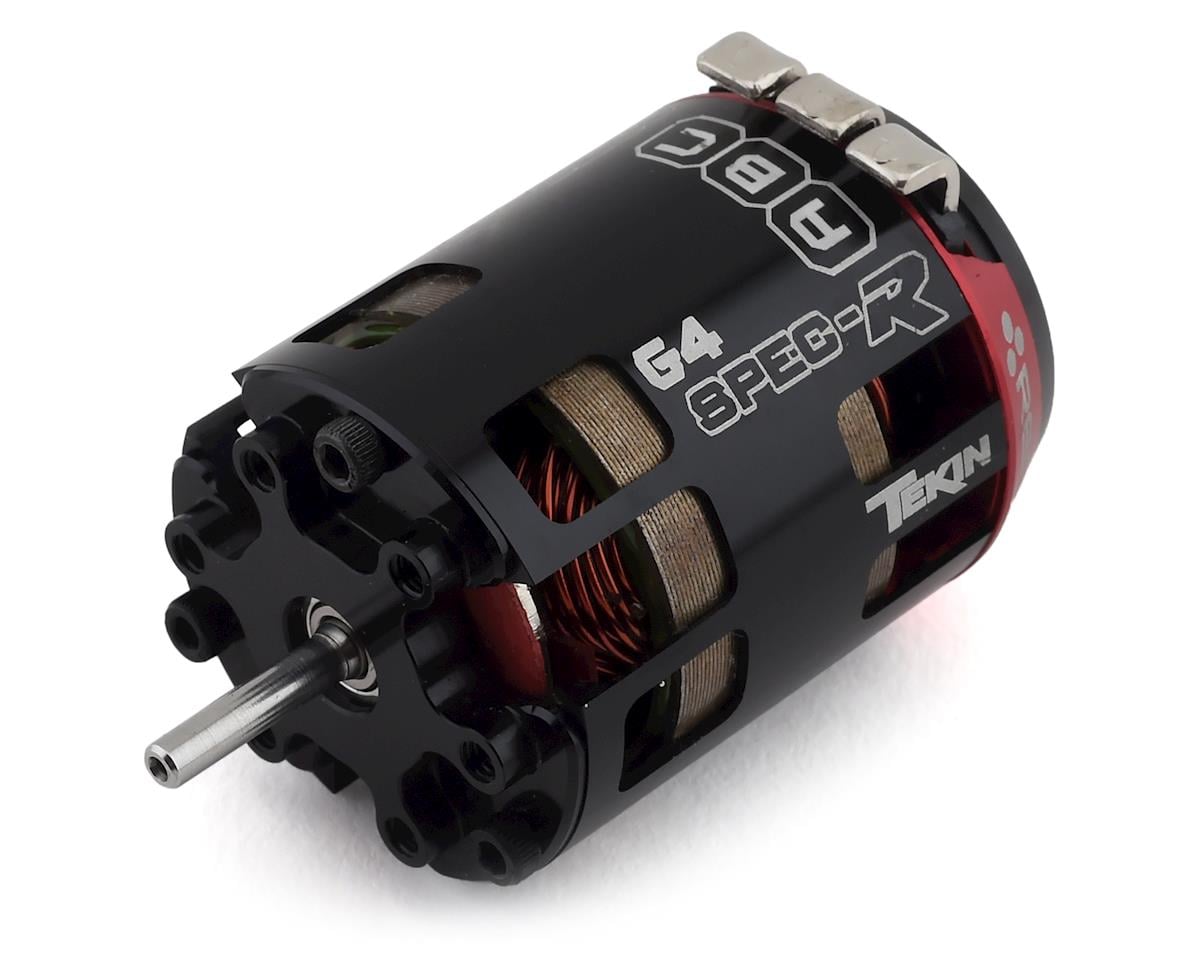

Tekin Gen4 Spec-R Sensored 1/12 Modified Brushless Motor (6.5T)

The Tekin Gen4 Spec-R Sensored 1/12 Modified Brushless Motor features a 6.5T configuration for spec racing applications. Its sensored design, adjustable timing, rebuildable construction, and precision-machined components support smooth control across the RPM range.

Features

• 60 degrees of adjustable timing advance
• SPEC racing-specific design
• CNC-machined 6061-T6 billet aluminum heat sink can
• Neodymium sintered magnet
• High-purity copper windings
• Low-resistance, high-power solder tabs
• Sensored system ready
• Anodized end-bell plates
• High-RPM precision bearings with oversized front bearing
• Rebuildable design
• Solderless sensor PCB replacement
• ROAR approved

Specifications

• Input voltage: 1-2S LiPO
• Weight: 5.1oz / 145g
• Shaft dimensions: 3.18mm (1/8") x 15.3mm
• Motor diameter: 35.85mm / 1.40"
• Motor length: 50.25mm / 1.978"
• Maximum operating temperature: 180°F / 82°C
• Bearing dimensions: Front: 4x13x5mm; Rear: 1/8x3/8x5/32"
• Rotor size: 12.3mm BLACK - 25.5T; 12.5mm BLUE - 21.5T / 17.5T / 13.5T / 10.5T
• Rebuildable: Yes
