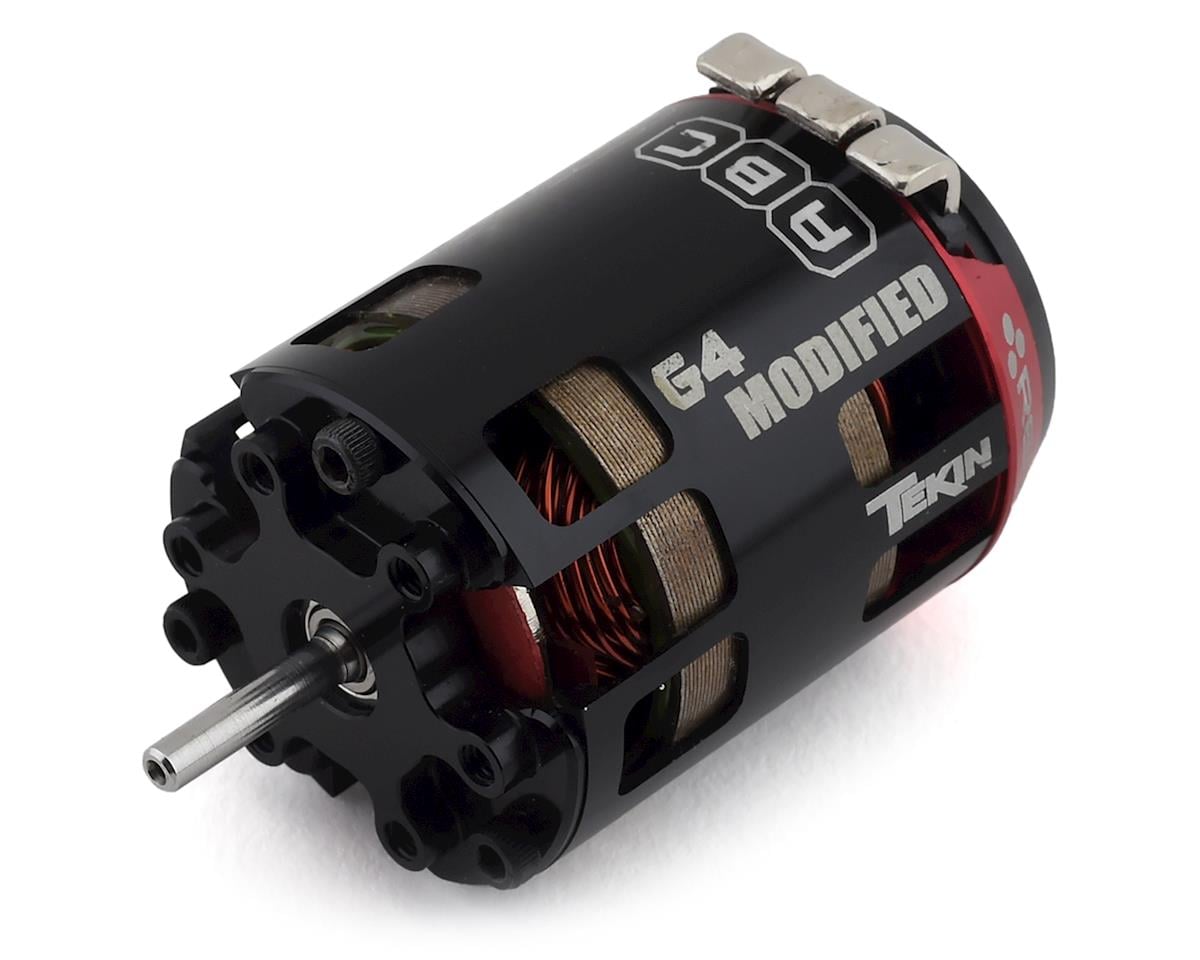

Tekin Gen4 Modified Sensored Brushless Motor (6.5T)

The Tekin Gen4 Modified Sensored Brushless Motor in 6.5T is designed for racing applications, with smooth power and control across the full RPM range. Its redesigned stator is precision stamped and pressed to increase efficiency and reduce resistance.

Features

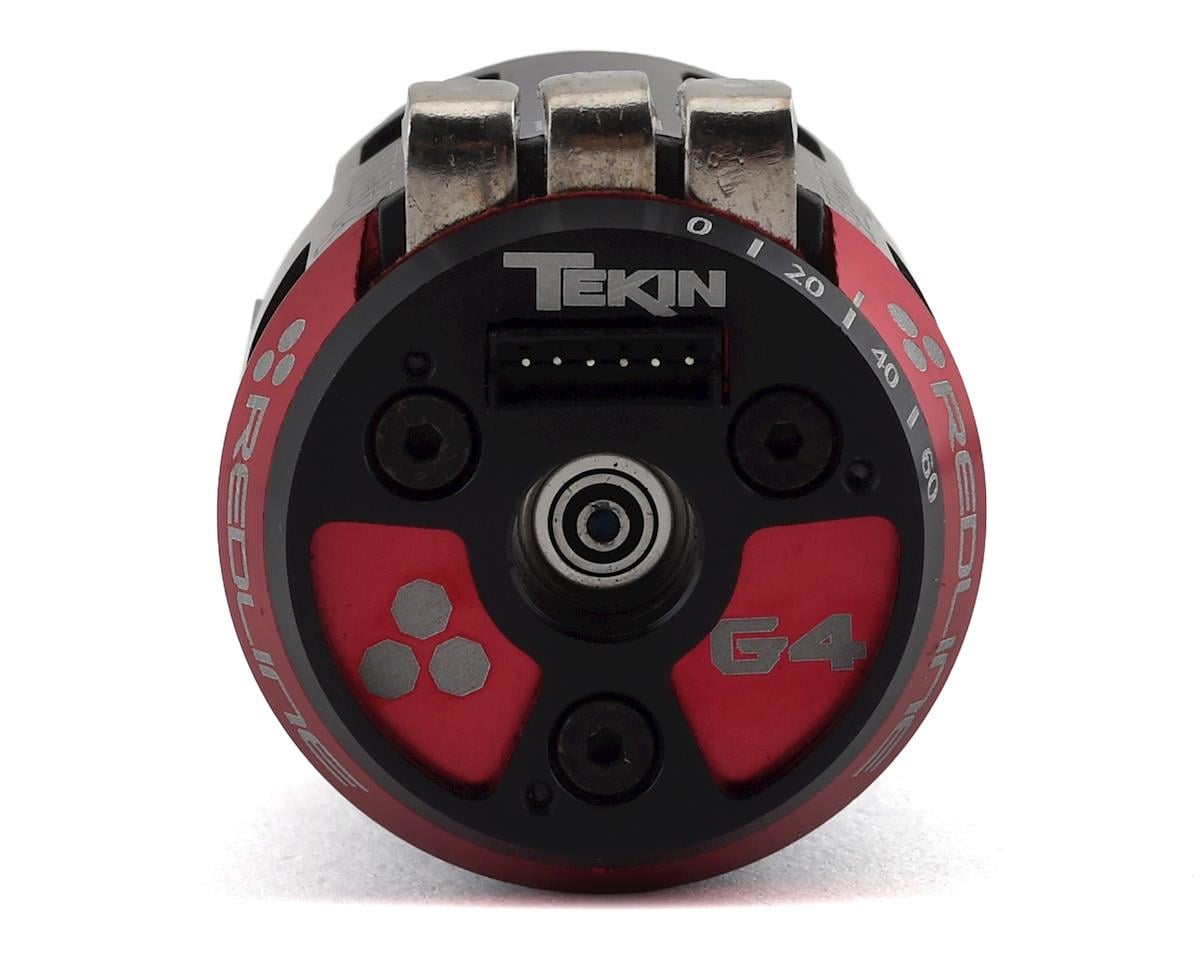

• 60 Degrees Adjustable Timing Advance
• Modified racing-specific design
• CNC machined 6061-T6 billet aluminum heat sink can
• Neodymium sintered magnet
• High-purity copper windings
• Low-resistance, high-power solder tabs
• Sensored system ready
• Anodized end-bell plates
• High-RPM precision bearings
• Oversized front bearing
• Rebuildable design
• Solder-less sensor PCB replacement
• Legal in major race governing bodies
• ROAR approved

Specifications

• Input Voltage: 1-2S LiPO
• Weight: 5.1oz / 145g
• Shaft Dimensions: 3.18mm (1/8") x 15.3mm
• Motor Diameter: 35.85mm / 1.40"
• Motor Length: 50.25mm / 1.978"
• Max Operating Temperature: 180°F / 82°C
• Bearing Dimensions: Front: 4x13x5mm; Rear: 1/8x3/8x5/32"
• Rotor Size: 12.5mm GREEN
• Rebuildable: Yes
