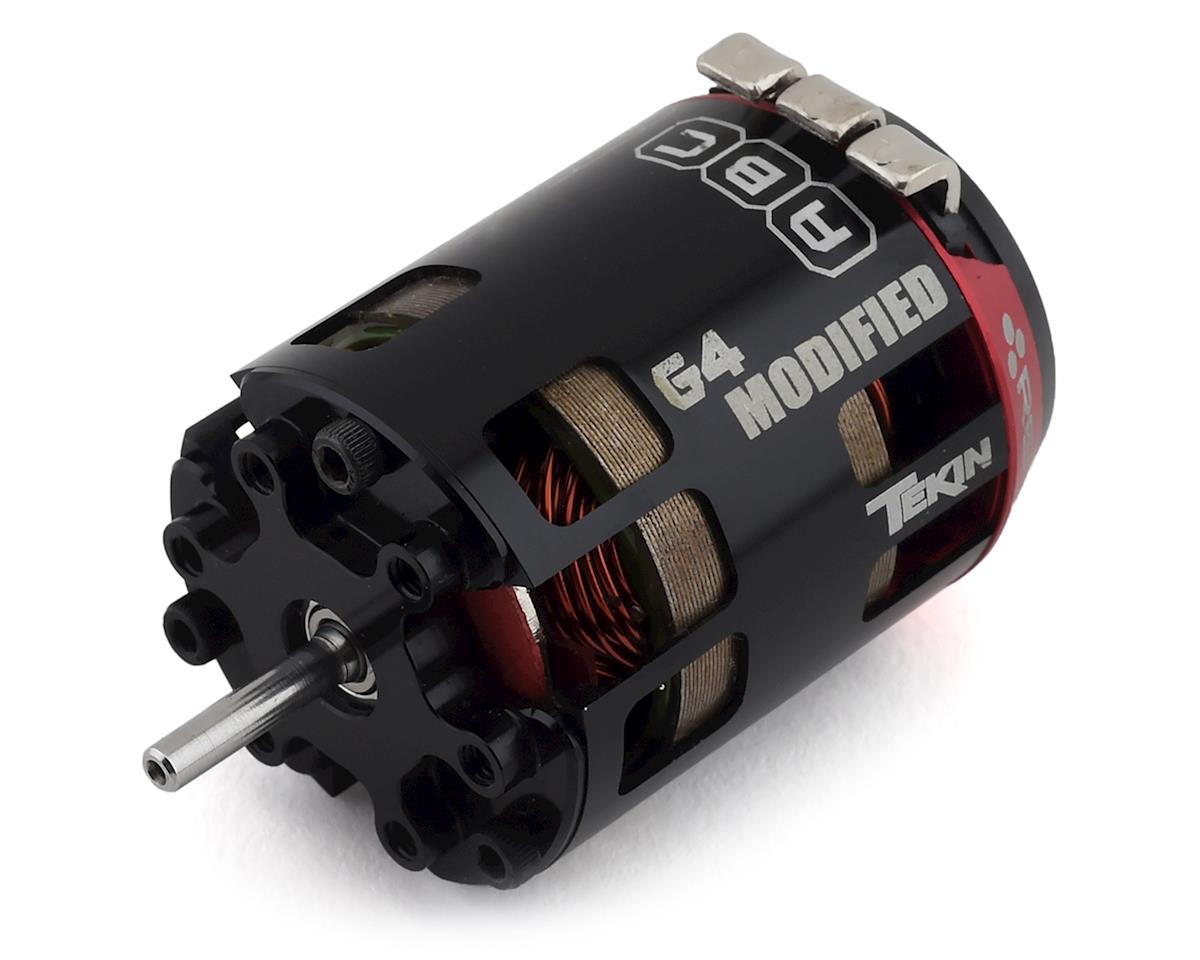

Tekin Gen4 Modified Sensored Brushless Motor (5.5T)

The Tekin Gen4 Modified Sensored Brushless Motor in 5.5T is a rebuildable racing motor with a sensored system, adjustable timing, and a redesigned stator intended to increase efficiency and reduce resistance.

Features

• 60 Degrees Adjustable Timing Advance
• Modified racing-specific design
• CNC machined 6061-T6 billet aluminum heat sink can
• Neodymium sintered magnet
• Precision engineered for maximum energy conversion
• High purity copper windings
• Low resistance, high power solder tabs
• Sensored system ready
• Anodized end-bell plates
• High RPM precision bearings with oversized front bearing
• Rebuildable design
• Solder-less sensor PCB replacement
• Legal in major race governing bodies
• ROAR approved

Specifications

• Motor: 5.5T
• Input Voltage: 1-2S LiPO
• Weight: 5.1oz / 145g
• Shaft Dimensions: 3.18mm (1/8") x 15.3mm
• Motor Diameter: 35.85mm / 1.40"
• Motor Length: 50.25mm / 1.978"
• Max Operating Temperature: 180°F / 82°C
• Bearing Dimensions: Front: 4x13x5mm; Rear: 1/8x3/8x5/32"
• Rotor Size: 12.5mm GREEN
• Rebuildable: Yes
