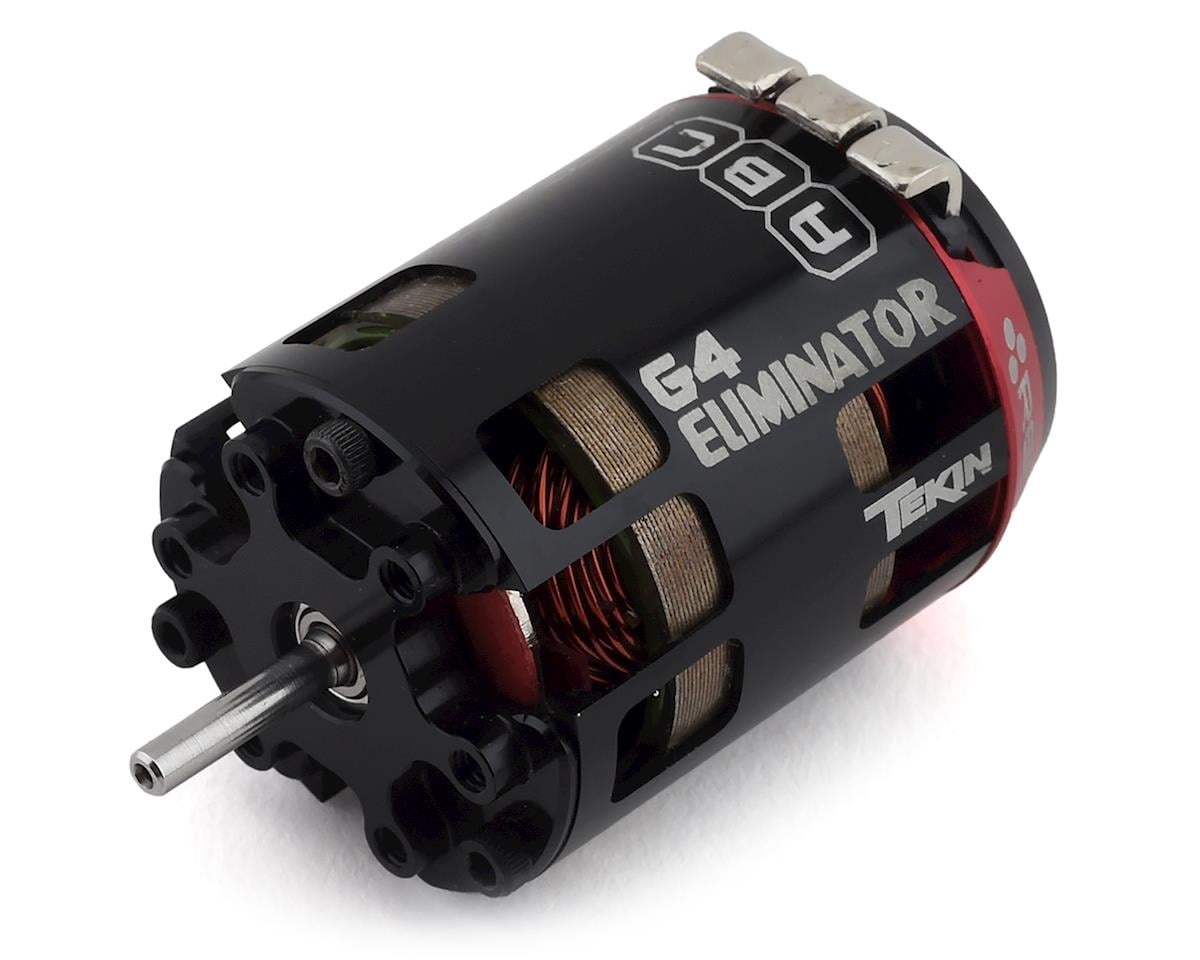

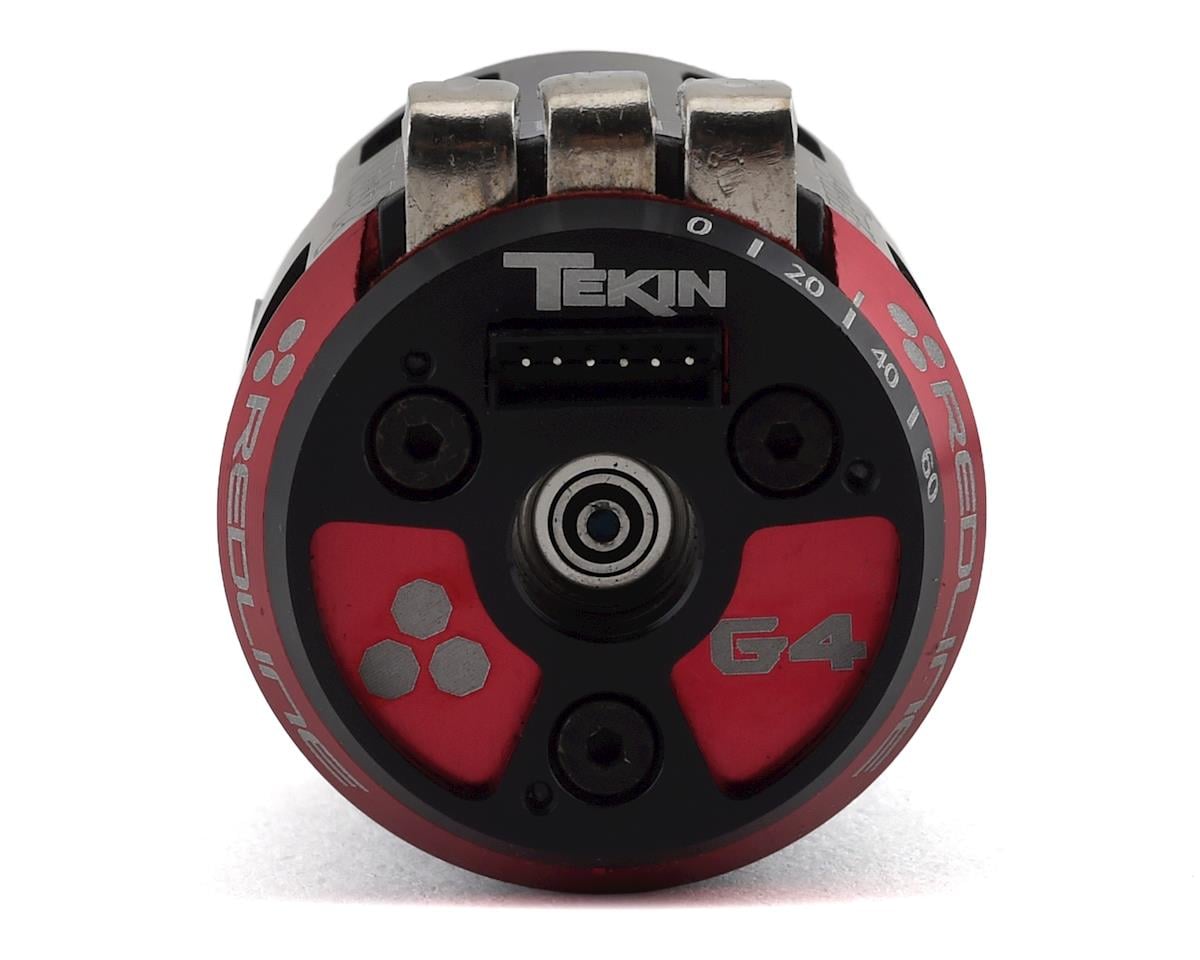

Tekin Gen4 Eliminator Drag Racing Modified Brushless Motor (5.0T)

The Tekin Gen4 Eliminator Drag Racing Modified Brushless Motor in 5.0T is purpose-built for drag racing. It features an oversized Ultra Torque rotor, precision-stamped and pressed stator, hand-wound high-purity copper wire, and machined 6061-T6 aluminum construction.

The Eliminator is fully tunable with optional rotors and is designed to be completely rebuildable. Its design focuses on reduced weight and resistance for drag racing applications.

Specifications

• Input Voltage: 1-2S LiPO
• Weight: 5.1oz / 145g
• Shaft Dimensions: 3.18mm (1/8") x 15.3mm
• Motor Diameter: 35.85mm / 1.40"
• Motor Length: 50.25mm / 1.978"
• Max Operating Temperature: 180°F / 82°C
• Bearing Dimensions: Front: 4x13x5mm; Rear: 1/8x3/8x5/32"
• Rotor Size: 13mm TORQUE RED
• Rebuildable: Yes
