Team Exalt HB162P Ultra Low Profile Brushless Servo (Programmable)

The Team Exalt HB162P Ultra Low Profile Brushless Servo (Programmable) features a compact design for 1/10-1/12 applications, digital circuitry, dual ball bearings, metal gears, and programmable performance. It provides fast operating speeds and high dynamic torque at both 6.0V and 8.4V.

Features

• Ultra low profile design
• High torque output
• Fast transit speed
• Digital circuitry
• Dual ball bearings
• Wide operating voltage range
• Fully programmable performance
• Smooth centering accuracy

Specifications

• Application: 1/10-1/12
• Input Voltage: 4.8-8.4V
• Operating Speed @ 6.0V: 0.085sec/60°
• Dynamic Torque @ 6.0V: 292oz-in (21.0kg-cm)
• Operating Speed @ 8.4V: 0.068sec/60°
• Dynamic Torque @ 8.4V: 375oz-in (27.0kg-cm)
• Pulse/Frequency: -
• Motor Type: Brushed - Coreless
• Output Shaft Spline: -
• Gear Material: Metal
• Dimensions: 1.61x0.80x1.03in (40.8x20.2x26.1mm)
• Weight: 2.19oz (62g)

Includes

• (1) HB162P Ultra Low Profile Brushless Servo (Programmable)

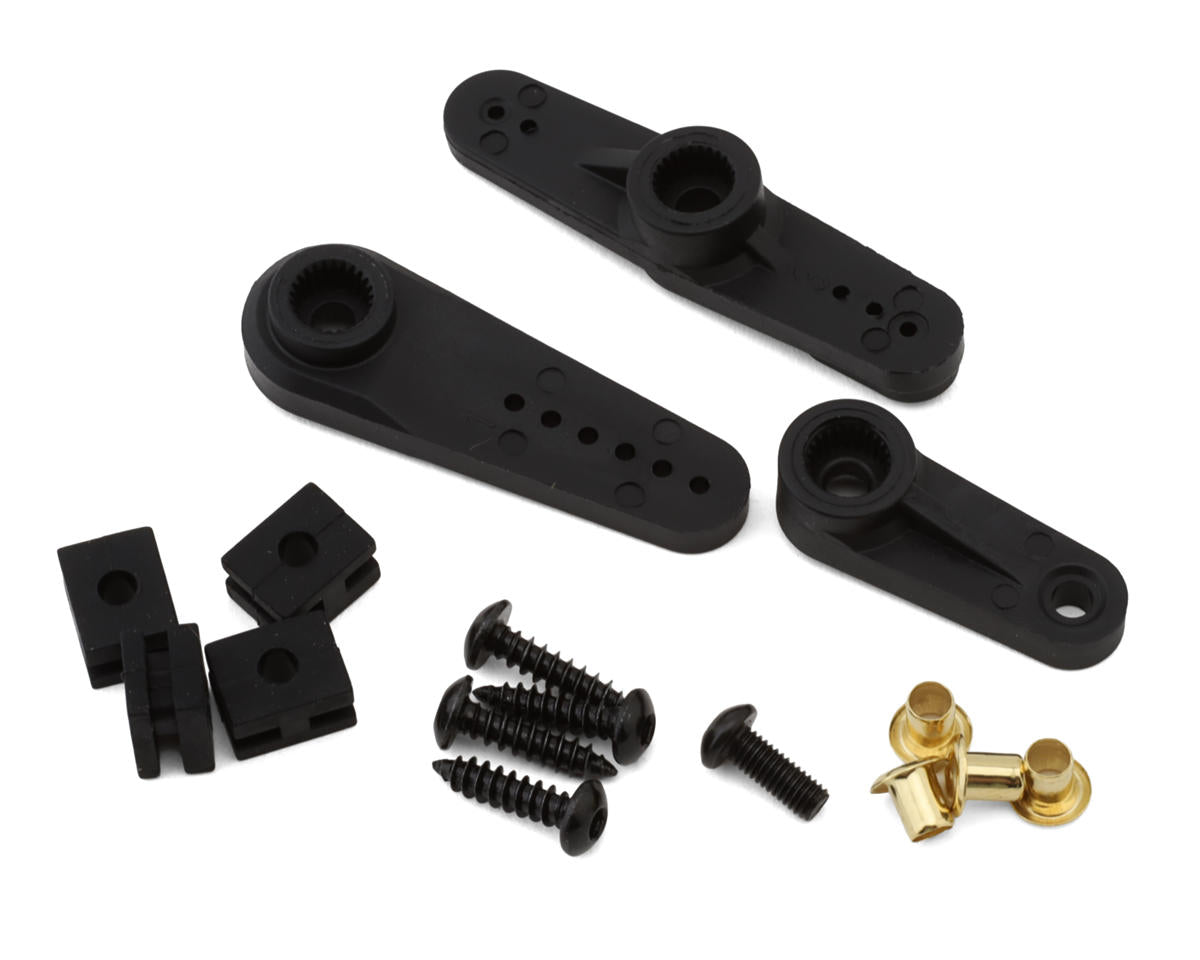

• (1) Servo Horns & Hardware Set
