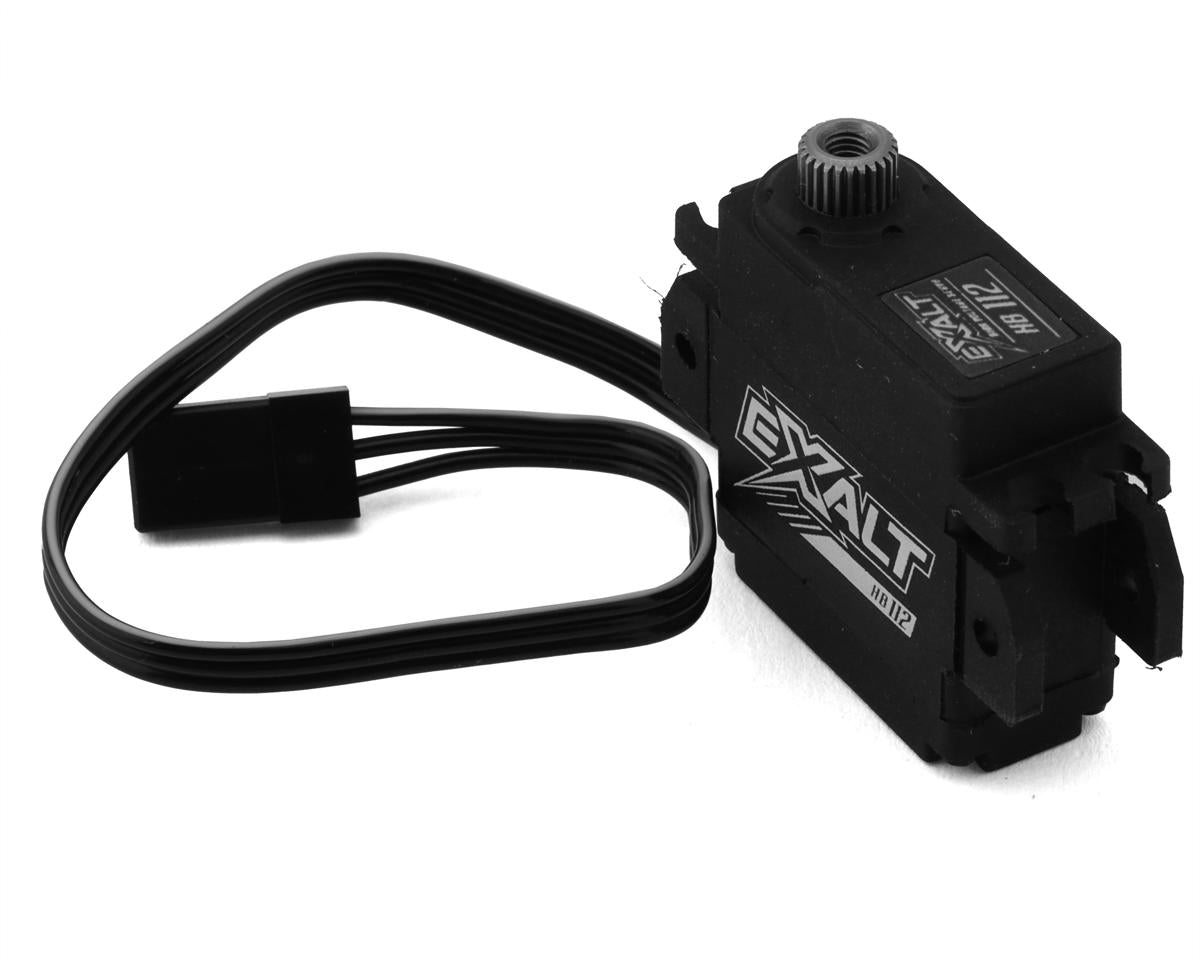

Team Exalt HB112 1/12 Metal Gear Brushless Mini Servo (High Voltage)

The Team Exalt HB112 is a high-voltage 1/12 metal gear mini servo with a lightweight composite case, machined titanium and metal gears, and a coreless motor. It operates from 4.8V-8.4V and is designed for smooth, responsive steering in 1/12 scale cars.

Features

• High-voltage capable up to 8.4V
• High torque and speed coreless motor
• Machined metal and titanium gears
• Lightweight composite case
• 25T operating spline

Specifications

• Speed: @6.0V: 0.085sec/60°, @7.4V: 0.073sec/60°, @8.4V: 0.065sec/60°
• Torque: @6.0V: 87.49oz-in (6.3kg-cm), @7.4V: 104.15oz-in (7.5kg-cm), @8.4V: 118.04oz-in (8.5kg-cm)
• Motor: Coreless
• Operating Voltage: 4.8V-8.4V
• Dimensions (LxWxH): 27x12x28mm
• Weight: 16.5g (0.582oz)
• Operating Spline: 25T

Includes

• (1) Exalt HB112 High Torque 1/12 Coreless Servo

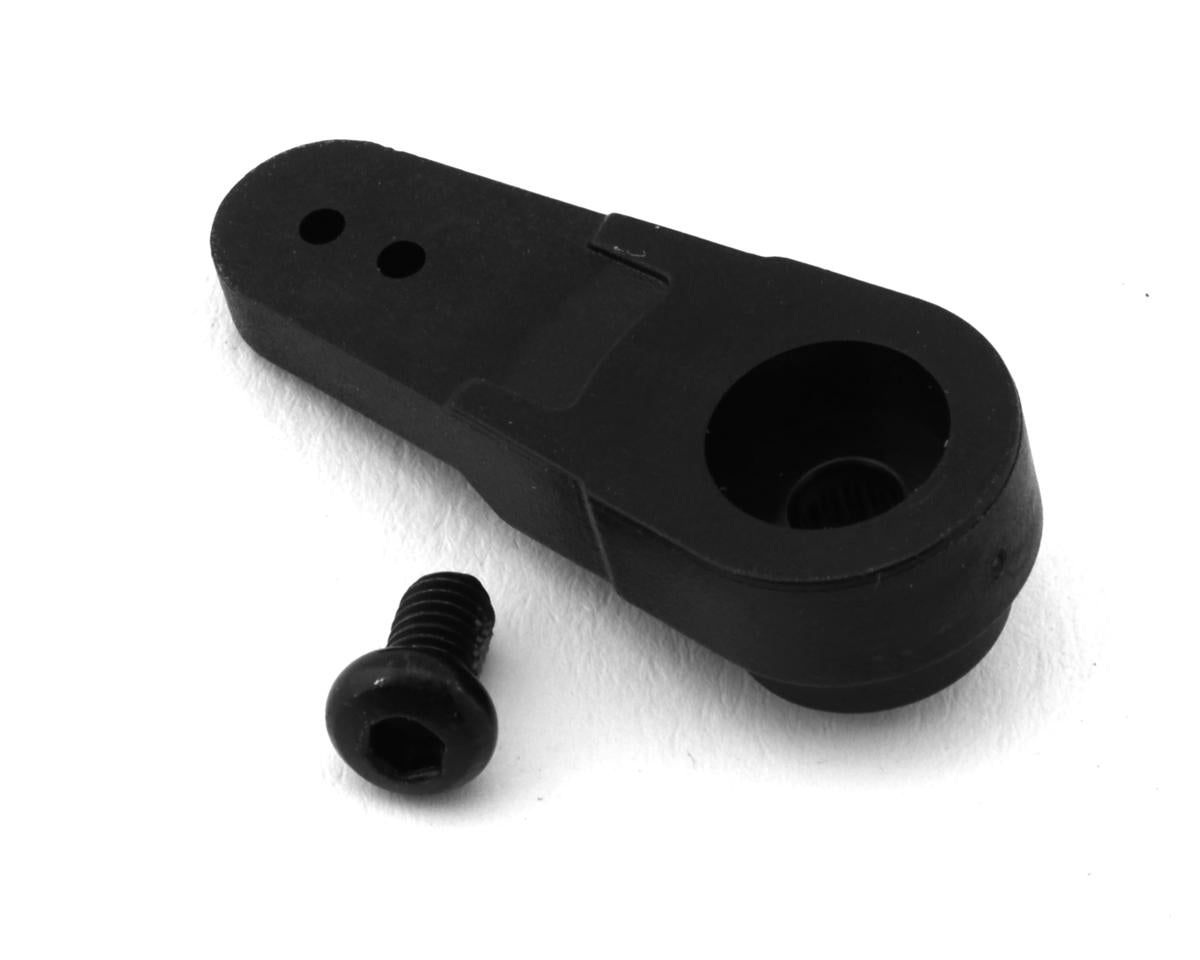

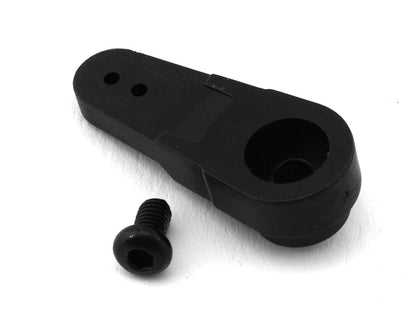

• Composite Servo Horns and Mounting Hardware
