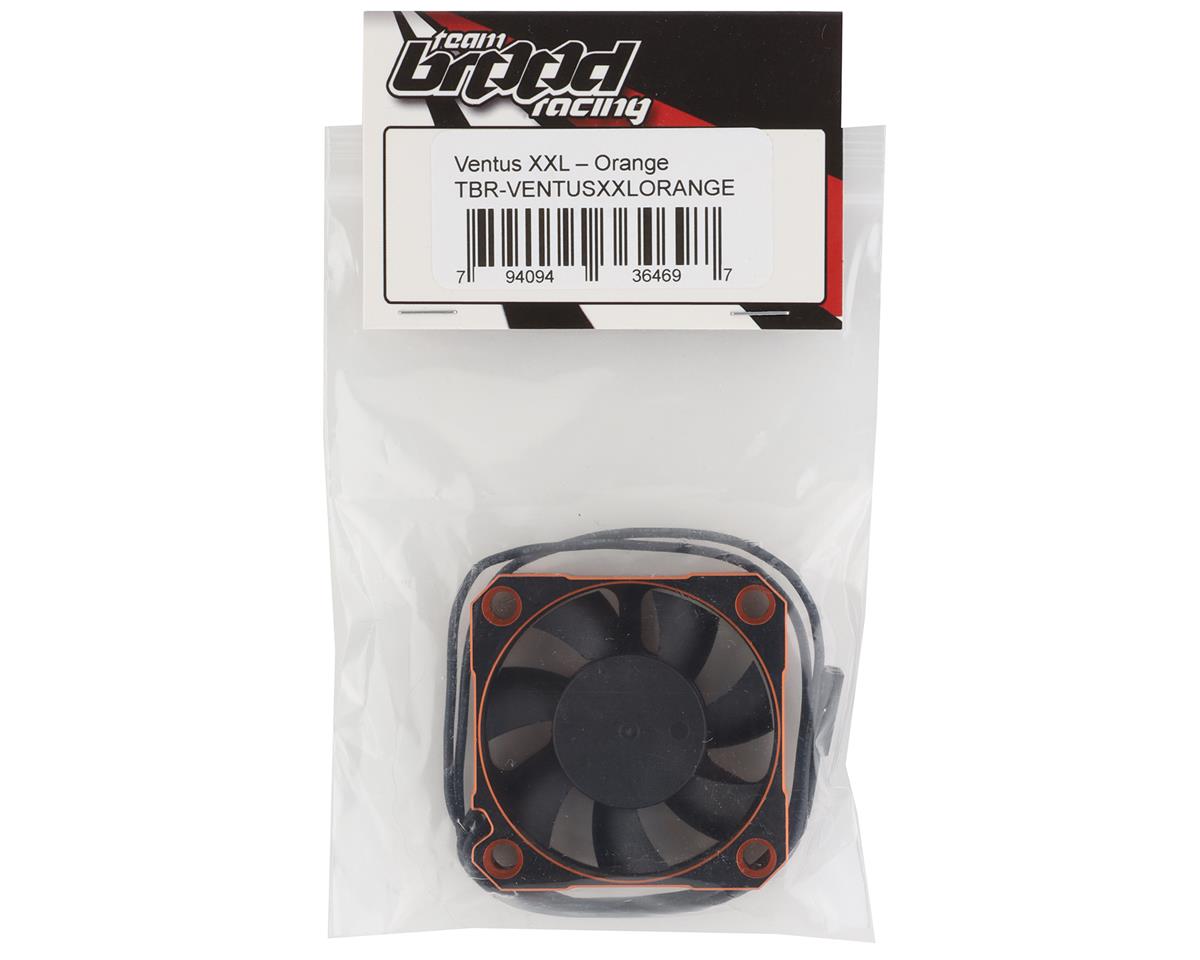

Team Brood Ventus XXL Aluminum 50mm Cooling Fan (Orange)

The Team Brood Ventus XXL Aluminum 50mm Cooling Fan features an anodized orange aluminum casing with silver chamfered edges. Its casing helps protect the fan blades, dissipate heat, and provides flat sides for securing the fan to a chassis with double-sided tape.

Designed for 1/8, 1/7, 1/6, and 1/5 scale applications, the fan includes dual ball bearings and a pre-wired JWT 2-pin connector for connection to a receiver or another power source. For optimal performance, install the fan at least 5mm away from the motor to help prevent magnet interference and allow sufficient airflow.

Features

• 50mm aluminum cooling fan
• Aluminum casing helps protect the fan blades
• Compatible with 2S HV LiPo systems (8.75V max)
• Anodized orange finish with silver chamfered edges
• Suitable for 1/8 and large-scale applications
• JWT 2-pin connector
• 30 Day Warranty against defects

Specifications

• Dimensions: 50x50x15mm
• Mounting Pattern: 40x40mm
• Weight: 40 grams
• Material: Aluminum & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 10,000 @ 8.4 Volts
• Current: 0.70A
• Connector: JWT 2-Pin Fan
• Fan Applications: 1/8 Scale, 1/7 Scale, 1/6 Scale & 1/5 Scale
