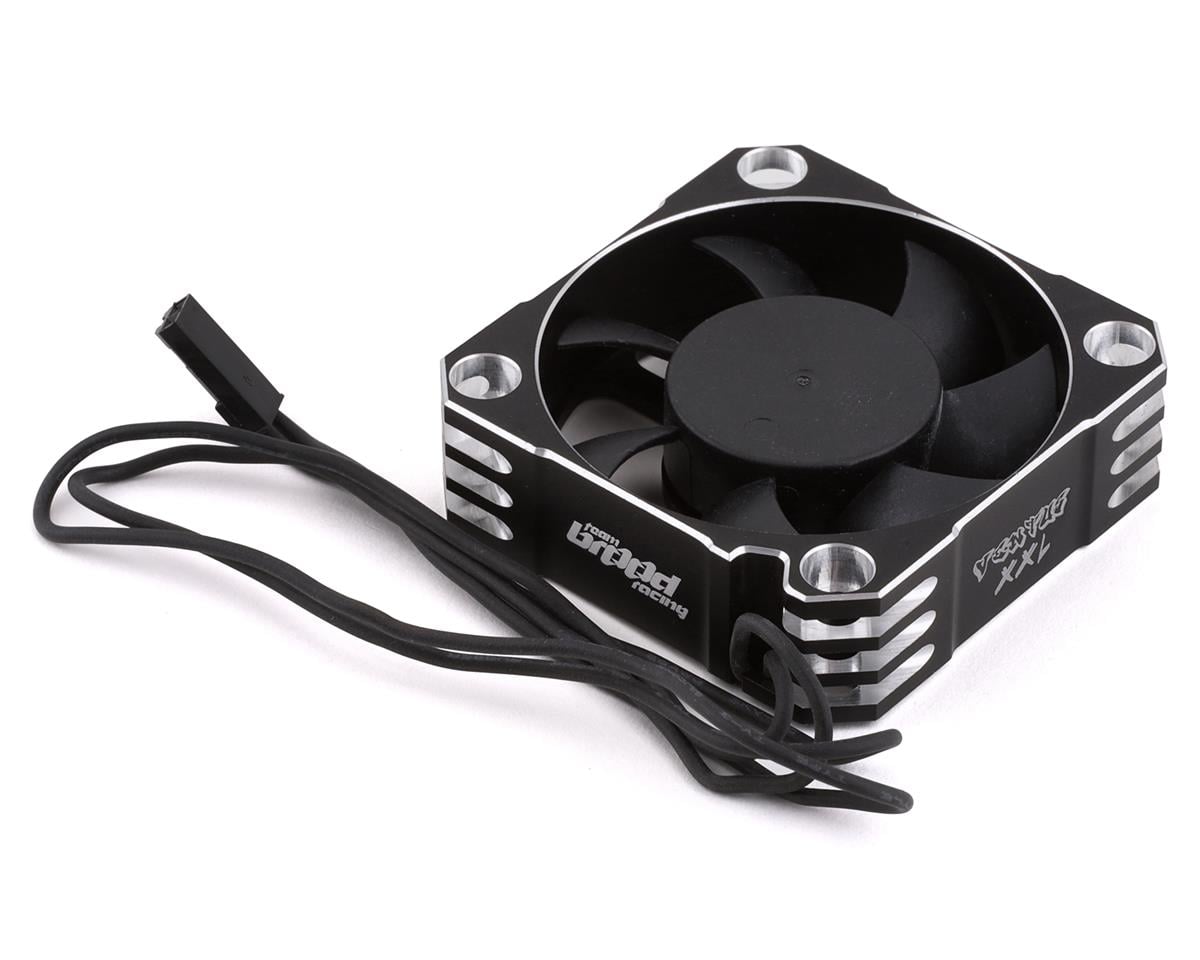

Team Brood Ventus XXL Aluminum 50mm Cooling Fan (Black)

The Team Brood Ventus XXL Aluminum 50mm Cooling Fan features an aluminum casing, dual ball bearings, and operation up to 10,000 RPM. It is compatible with 2S HV LiPo systems up to 8.75V and includes a pre-wired JWT 2-Pin connector for connection to a receiver or another power source.

Features

• 50mm aluminum cooling fan
• Aluminum casing helps protect the fan blades
• Anodized black finish with silver chamfered edges
• 2 pin connector for installation
• Suitable for 1/8, 1/7, 1/6, and 1/5 scale applications
• 30 Day Warranty against defects

Specifications

• Dimensions: 50x50x15mm
• Mounting Pattern: 40x40mm
• Weight: 40 grams
• Material: Aluminum & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 10,000 @ 8.4 Volts
• Current: 0.70A
• Connector: JWT 2-Pin Fan

For optimal performance, install the fan at least 5mm away from the motor to prevent magnet interference and allow sufficient airflow. The flat sides of the aluminum case can be secured to the chassis with double side tape.
