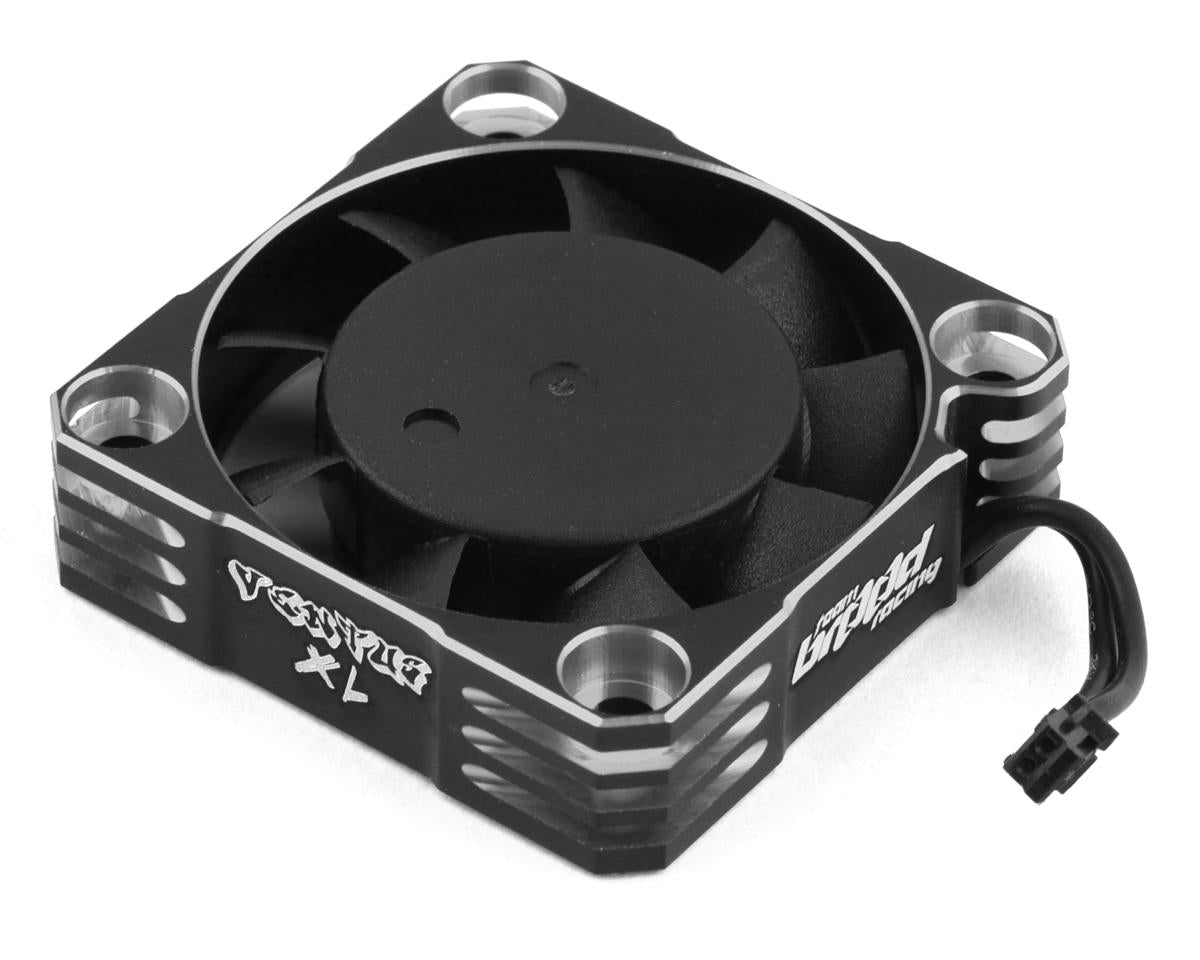

Team Brood Ventus XL Aluminum 40mm ESC Fan w/Micro Plug (Silver)

The Team Brood Ventus XL Aluminum 40mm ESC Fan provides active cooling for 1/10, 1/8, and large scale applications. Its aluminum casing helps protect the fan blades and dissipate heat, while dual ball bearings support operation at speeds up to 28,000RPM.

Features

• 40mm aluminum ESC cooling fan
• Aluminum casing helps protect the fan blades
• Compatible with 2S HV LiPo systems up to 8.75V
• Anodized blue finish with silver chamfered edges
• Dual ball bearings
• Pre-wired JWT 2-Pin Micro Plug
• 30 Day Warranty against defects

Specifications

• Dimensions: 40x40x10.75mm
• Mounting Pattern: 32x32mm
• Weight: 21.5 grams
• Material: Aluminum & Plastic
• Operating Voltage: 5V - 8.75V
• Fan Speed: 28,000RPM @ 8.4 Volts
• Current: 0.55A
• Connector: JWT 2-Pin Micro Plug
• Fan Applications: 1/10 and 1/8 Scale

For optimal performance, install the fan at least 5mm away from the motor to help prevent magnet interference and allow sufficient airflow.
