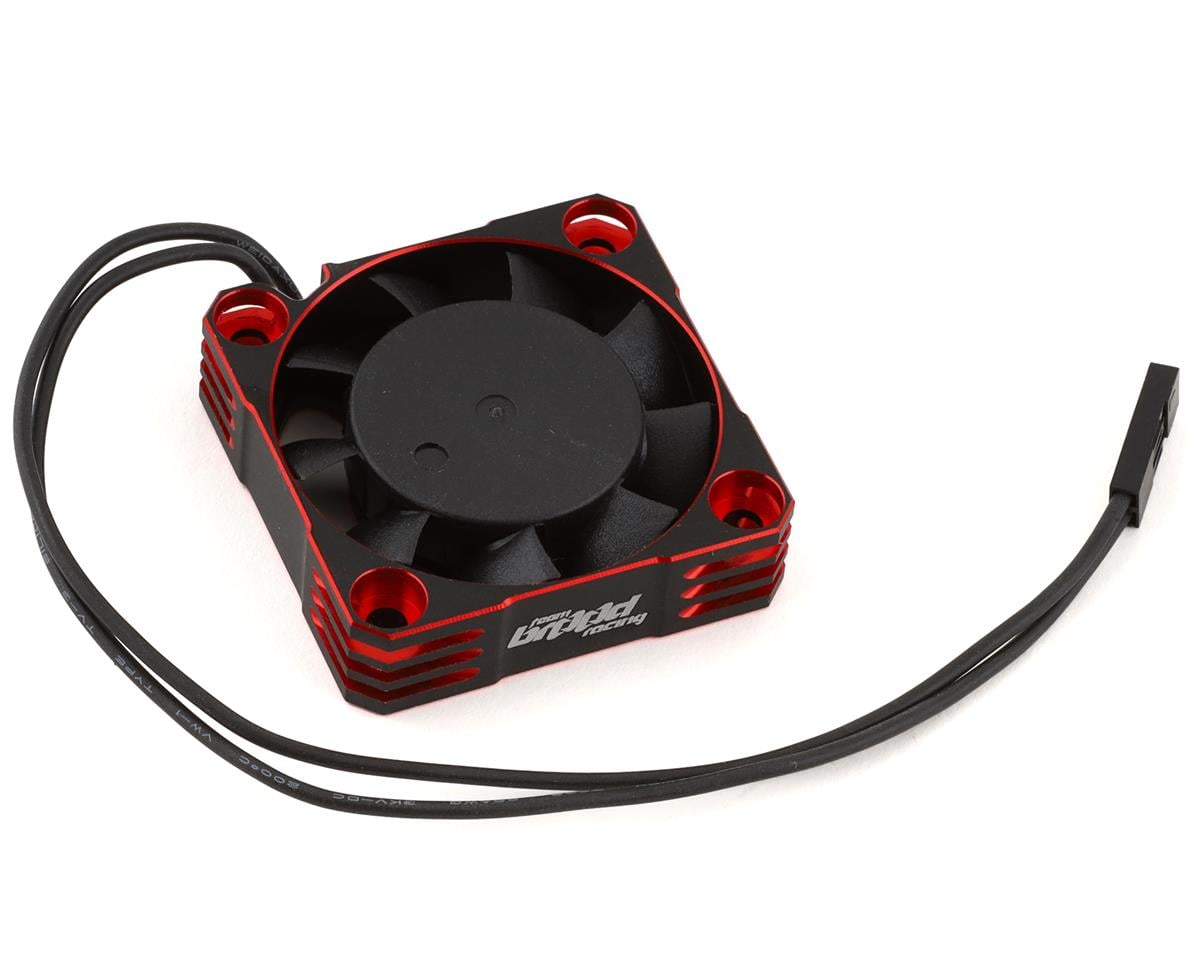

Team Brood Ventus XL 40mm HV Aluminum Cooling Fan (Red)

The Team Brood Ventus XL 40mm HV Aluminum Cooling Fan features an aluminum casing designed to help protect the fan blades and dissipate heat from the fan motor. It operates at speeds up to 28,000 RPM and is compatible with 2S HV LiPo systems up to 8.75V.

The fan includes dual ball bearings, a pre-wired JWT 2-Pin connector, and flat aluminum case sides for securing with double-sided tape. Its anodized red finish includes silver chamfered edges.

Features

• 40mm aluminum cooling fan
• Aluminum casing helps protect the fan blades
• Compatible with 2S HV LiPo systems (8.75V max)
• Dual ball bearing
• JWT 2-Pin connector for installation
• Applications: 1/10 and 1/8 Scale
• 30 Day Warranty against defects

Specifications

• Dimensions: 40x40x10.75mm
• Mounting Pattern: 32x32mm
• Weight: 21.5 grams
• Material: Aluminum & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 28,000 @ 8.4 Volts
• Current: 0.55A
• Connector: JWT 2-Pin Fan

Installation note: For optimal performance, install the fan at least 5mm away from the motor to prevent magnet interference and allow sufficient airflow.
