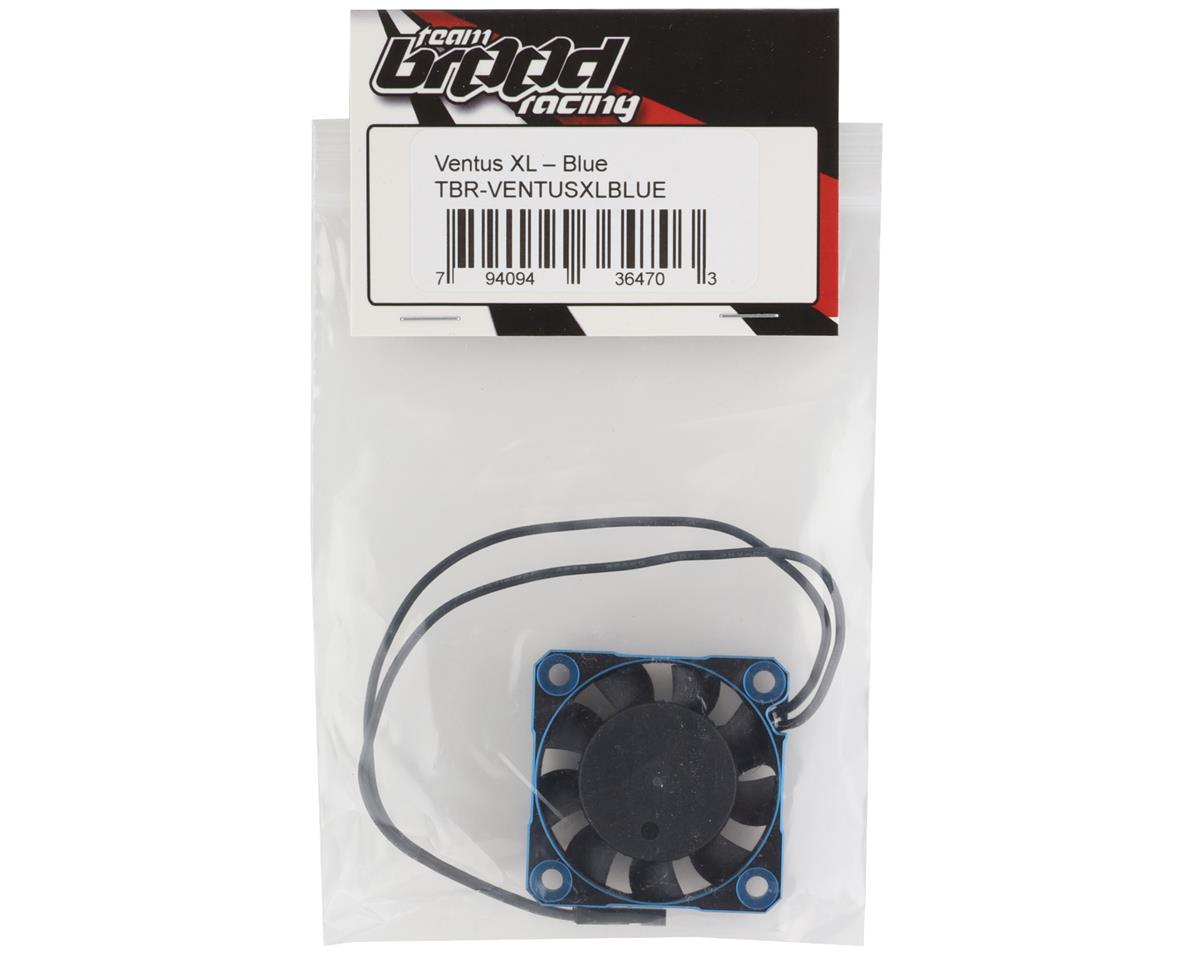

Team Brood Ventus XL 40mm HV Aluminum Cooling Fan (Blue)

The Team Brood Ventus XL 40mm HV Aluminum Cooling Fan features an aluminum casing designed to help protect the fan blades and dissipate heat during operation. It runs at speeds up to 28,000 RPM and is compatible with 2S HV LiPo systems up to 8.75V.

Dual ball bearings and a pre-wired JWT 2-Pin Fan connector support straightforward installation through a receiver or another power source. The case has flat sides for mounting to a chassis with double-sided tape, while the anodized blue finish includes silver chamfered edges.

For optimal performance, install the fan at least 5mm away from the motor to help prevent magnet interference and allow sufficient airflow.

Features

• 40mm aluminum cooling fan
• Aluminum casing helps protect the fan blades
• Compatible with 2S HV LiPo systems (8.75V max)
• Anodized blue with silver chamfered edges
• 2 pin connector for installation
• 30 Day Warranty against defects

Specifications

• Dimensions: 40x40x10.75mm
• Mounting Pattern: 32x32mm
• Weight: 21.5 grams
• Material: Aluminum & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 28,000 @ 8.4 Volts
• Current: 0.55A
• Connector: JWT 2-Pin Fan
• Fan Applications: 1/10 and 1/8 Scale
