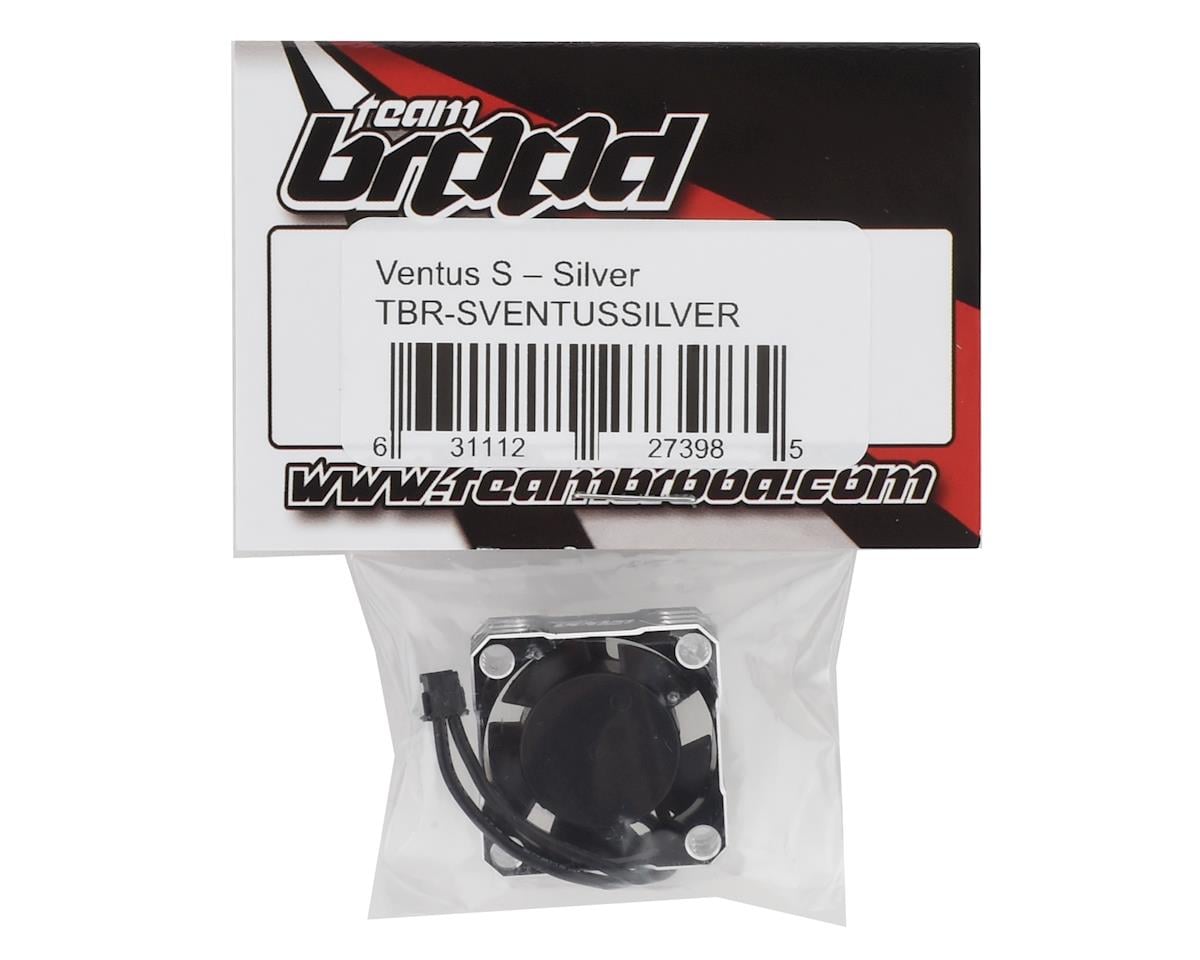

Team Brood Ventus S Aluminum 25mm Cooling Fan (Silver)

The Team Brood Ventus S Aluminum 25mm Cooling Fan features a machined aluminum casing designed to help protect the fan blades and dissipate heat. Its 25mm format is lighter than a typical 30mm fan, making it suited to weight-conscious RC applications.

The fan is compatible with 2S HV LiPo systems up to 8.75V and uses dual ball bearings for operation at up to 32,000 RPM. A pre-wired JST 2-Pin connector allows connection to a receiver or another power source, while double-sided tape can be used for mounting.

Features

• 25mm aluminum cooling fan
• Aluminum casing helps dissipate heat and protect the fan blades
• Compatible with 2S HV LiPo systems (8.75V max)
• Anodized black with silver chamfered edges
• Suitable for 1/12, 1/10 and 1/8 applications
• JST 2-Pin connector
• 30 Day Warranty against defects

Specifications

• Dimensions: 25x25x10mm
• Material: Aluminum & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.4V
• Max RPM: 32,000
• Current: 0.52A @7.4V
• Connector: JST 2-Pin
• Fan Applications: 1/10 Scale, 1/12 Scale, 1/8 Scale

For optimal performance, install the fan at least 5mm away from the motor to help prevent magnet interference and allow sufficient airflow.
