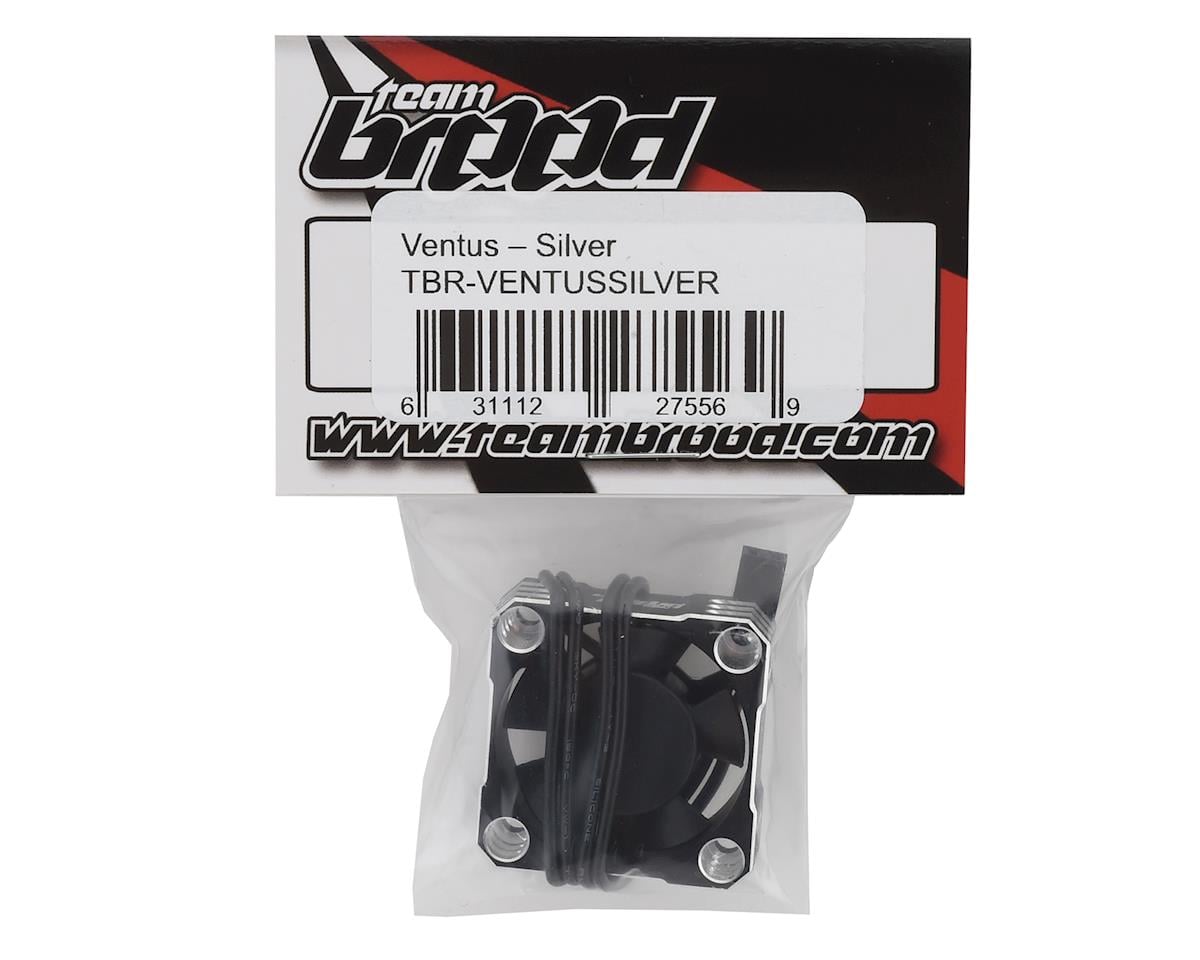

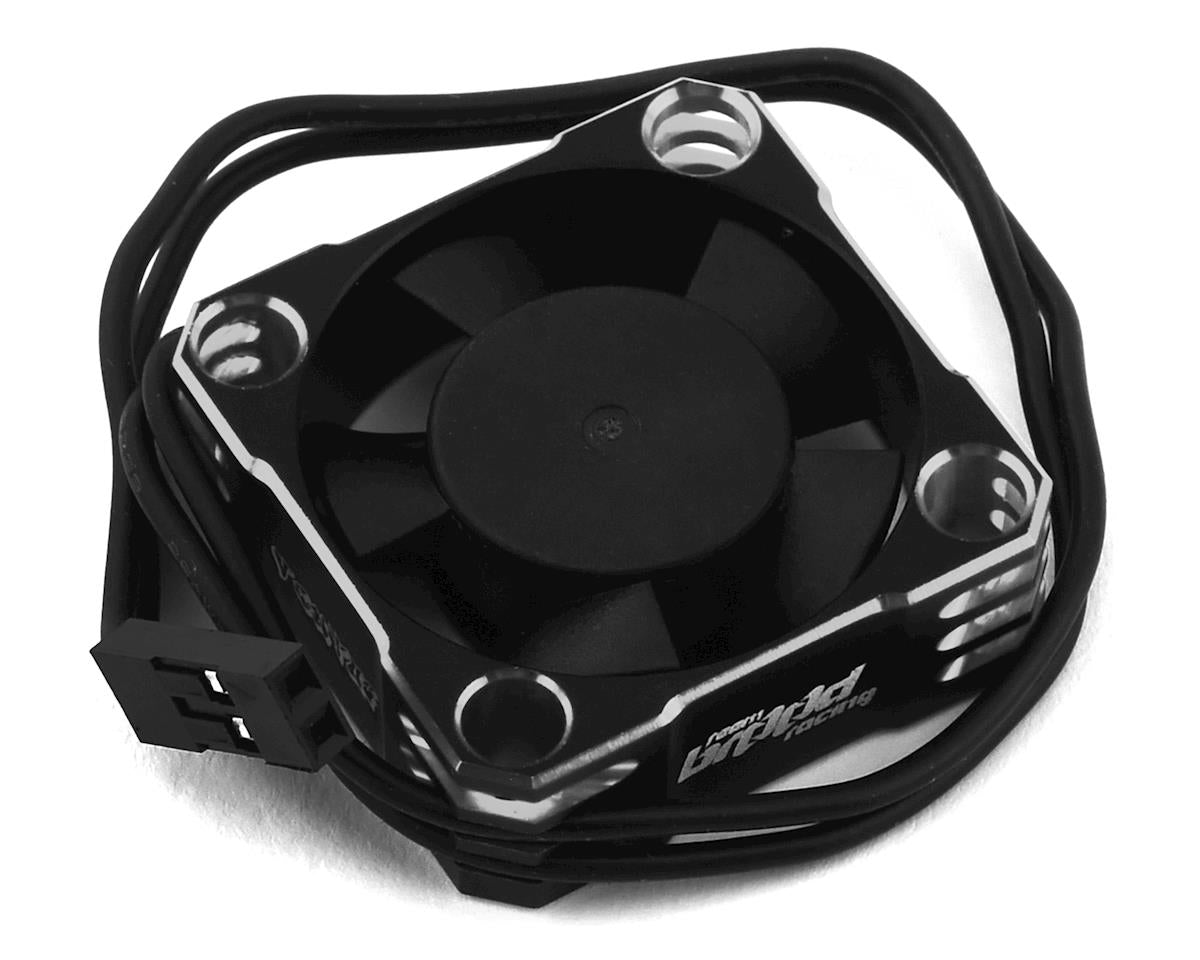

Team Brood Ventus Aluminum HV High Speed Cooling Fan (Silver)

The Team Brood Ventus Aluminum HV High Speed Cooling Fan features a machined aluminum casing designed to protect the fan blades and help dissipate heat. It operates at speeds up to 28,000 RPM and is compatible with 2S HV LiPo systems up to 8.75V.

Features

• 30mm aluminum cooling fan
• Aluminum casing helps dissipate heat and protect the fan blades
• Dual ball bearings
• Compatible with 2S HV LiPo systems (8.75V max)
• Anodized black with silver chamfered edges
• 2 pin connector for installation
• 30 Day Warranty against defects
• Suitable for 1/12, 1/10 and 1/8 scale applications

Specifications

• Dimensions: 31x31x10.5mm
• Mounting Pattern: 24mm x 24mm
• Weight: 14 grams
• Material: Aluminium & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 28,000 @ 8.4 Volts
• Current: 0.45A
• Connector: JWT 2-Pin
• Fan Applications: 1/10 Scale, 1/8 Scale or 1/12 Scale

The fan can be mounted with double side tape. For optimal performance, install it at least 5mm away from the motor to help prevent magnet interference and allow sufficient airflow. The optional Brood Machined Aluminum Fan Mount is recommended and is not included (BRO-TBR-CNCFANCMOUNT).
