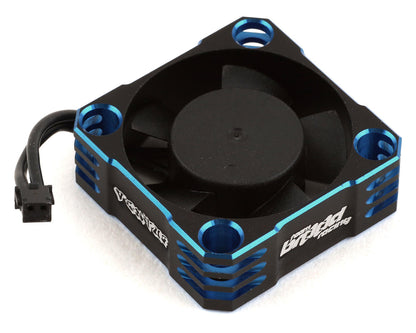

Team Brood Ventus Aluminum 30mm ESC Fan w/Micro Plug (Blue)

The Team Brood Ventus Aluminum 30mm ESC Fan with Micro Plug (Blue) uses an aluminum housing, dual ball bearing, and a JWT 2-Pin connector for electronics cooling. It operates from 5V to 8.75V and reaches 28,000RPM at 8.4 Volts.

Specifications

• Dimensions (LxWxH): 31x31x10.5mm
• Mounting Pattern (LxW): 24x24mm
• Weight: 14 grams
• Material: Aluminum & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V – 8.75V
• Fan Speed: 28,000RPM @ 8.4 Volts
• Current: 0.45A
• Connector: JWT 2-Pin

Installation Note

For optimal performance, install the fan at least 5mm away from the motor to help prevent magnet interference and allow sufficient airflow.

Includes

• (1) Ventus Aluminum 30mm ESC Fan with Micro Plug (Blue)
