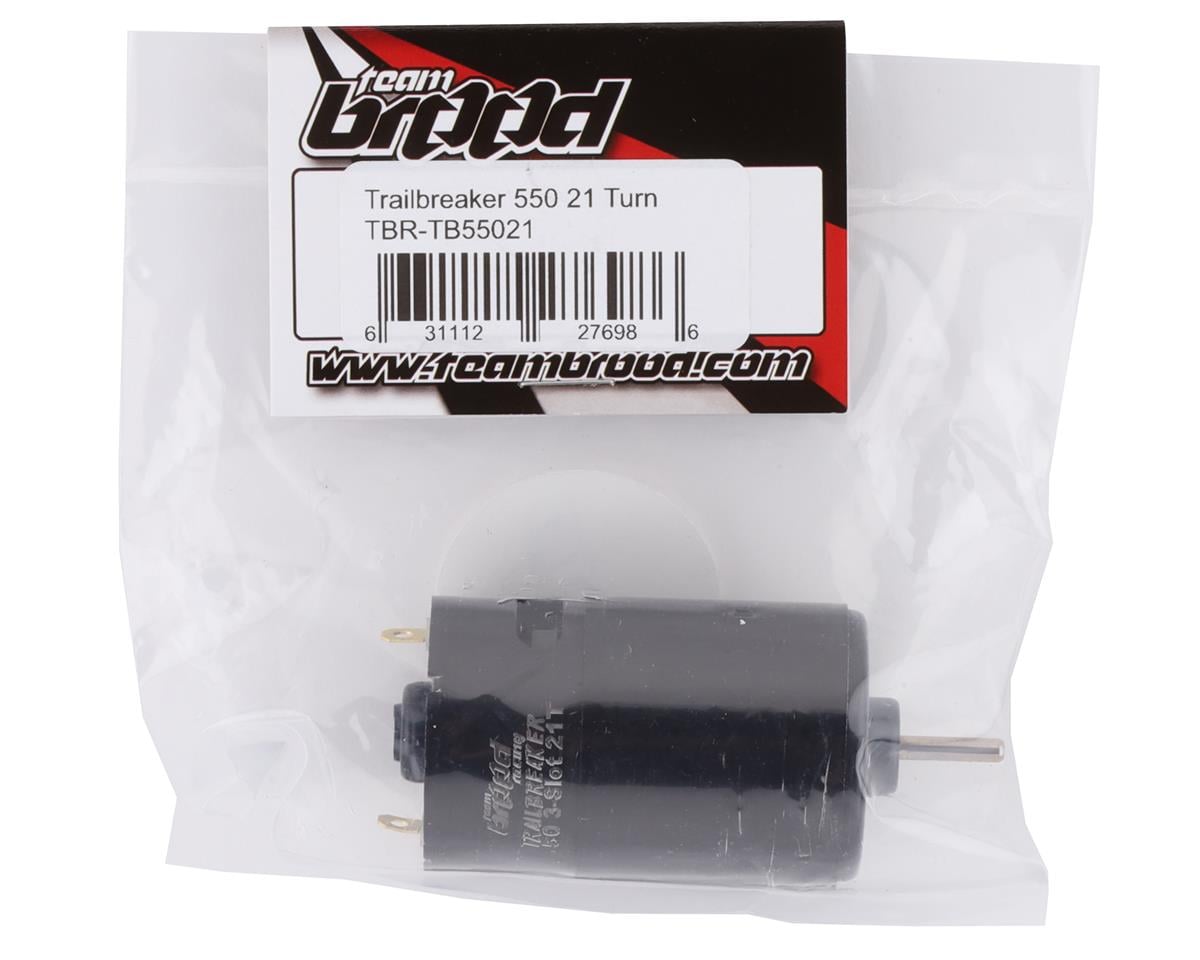

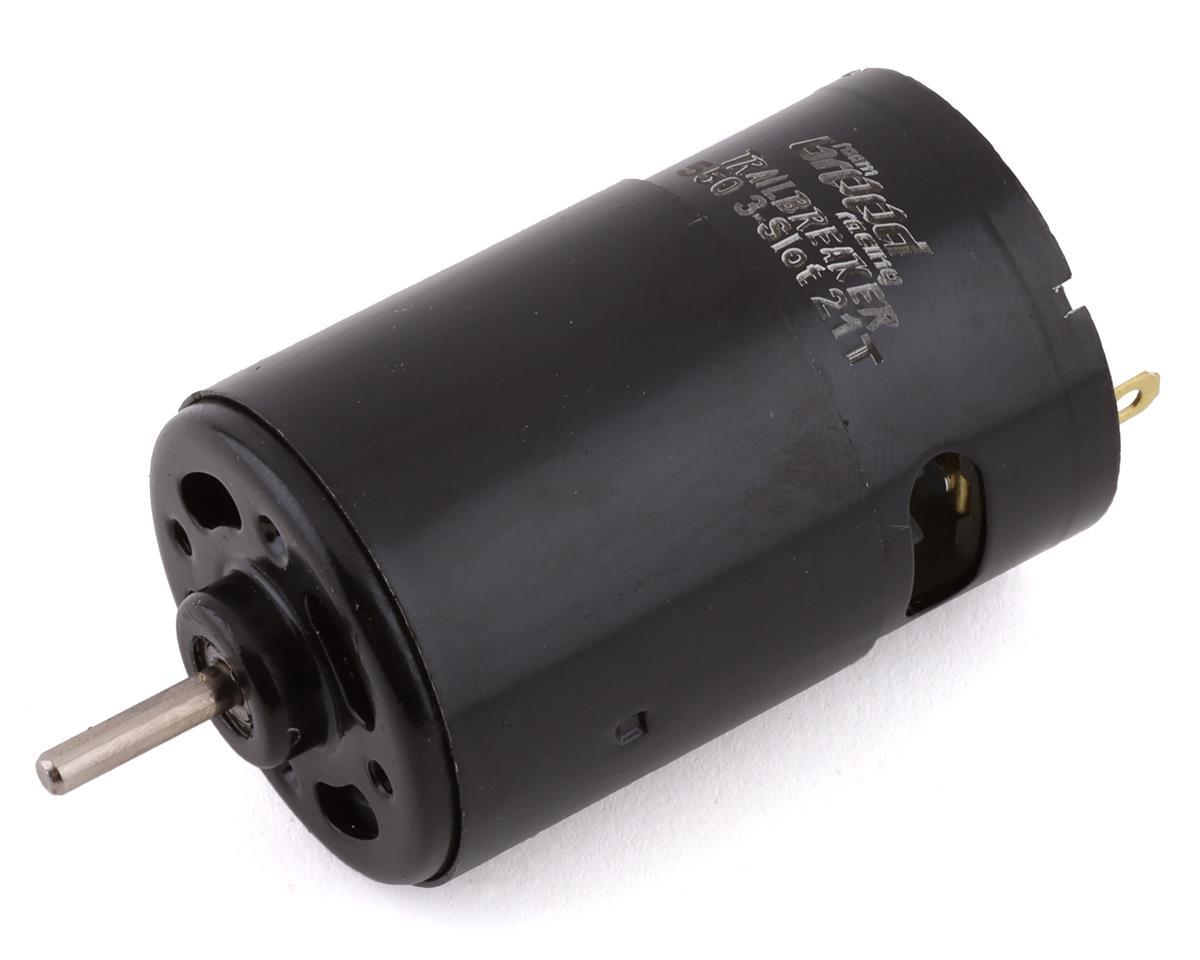

Team Brood Trailbreaker 550 Sealed Can 3 Slot Dual Magnet Brushed Motor (21T)

The Team Brood Trailbreaker 550 21T brushed motor features a 3-slot machine-wound armature, dual YG45 magnets, and a sealed can design. Zero timing supports normal or reverse installation, while the torque ring is designed to increase torque, braking, and efficiency.

Features

• 3-slot machine-wound armature
• Dual YG45 magnets
• 1.1mm thick can
• Torque ring
• Zero timing
• Dual ball bearings

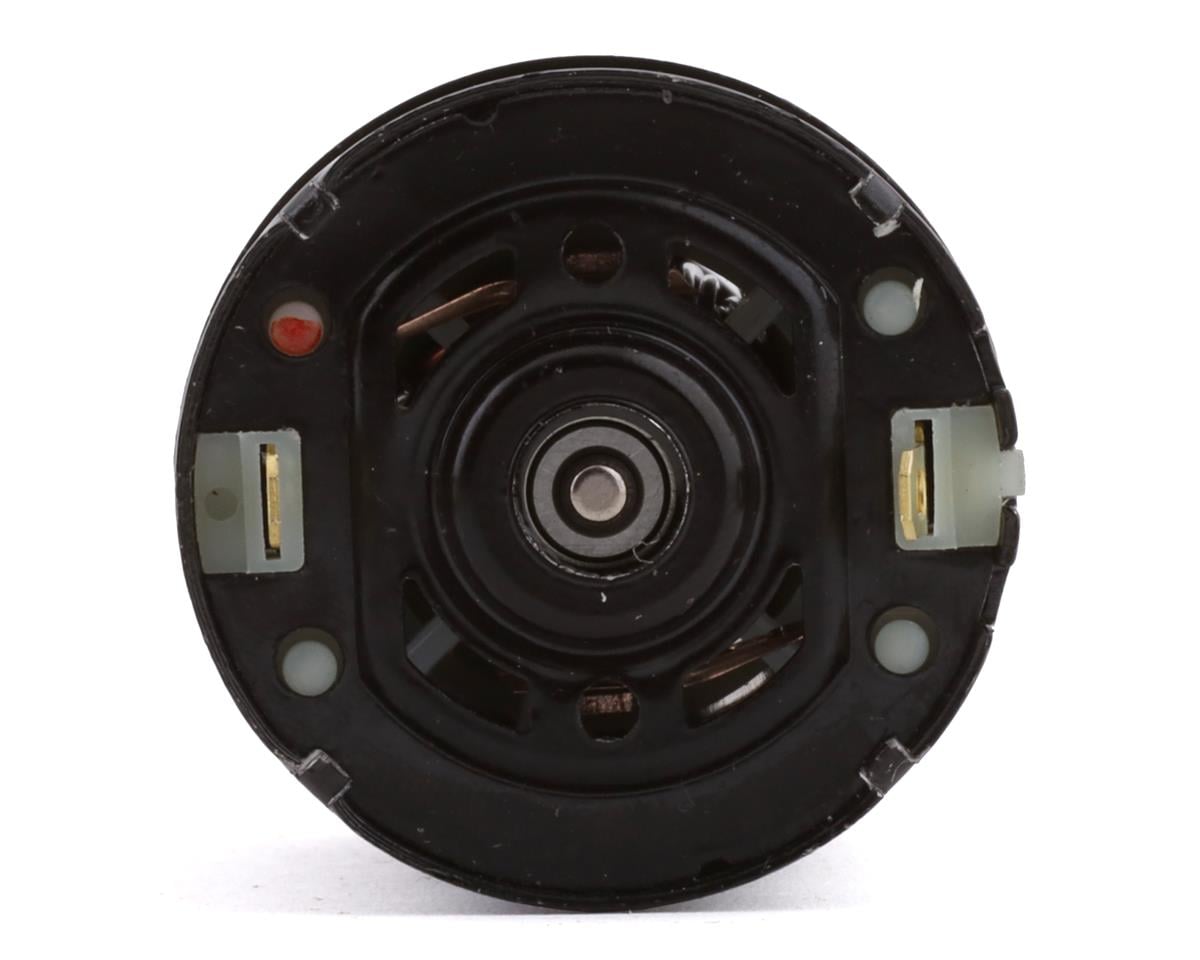

• Sealed endbell
• Long-wear brushes
• Internal cooling fan
• 1/8th shaft diameter for standard RC pinions
• Standard 540/550 M3 mounting holes on 25mm spacing

Specifications

• Turns: 21T
• Poles: 2
• Voltage input: 3.7v-14.8v
• Break-in: 600 seconds at 5 volts
• Armature construction: Machine Wound
• Lamination size: .014"
• Stack design: Straight
• Slots: 3
• Wire type: Copper Round
• Balance type: Drill
• Weight: 220 Grams +/- 5
• Length: 62.15mm
• Diameter: 35.05mm w/o Torque Ring; 37.00mm w/ Torque Ring
• Shaft size: 3mm (1/8th)
• Mounting pattern: Standard 540 M3x25mm

Build

• Laser engraved identification
• Fully broken-in
• Tested after break-in
• 30 Day Limited Warranty
