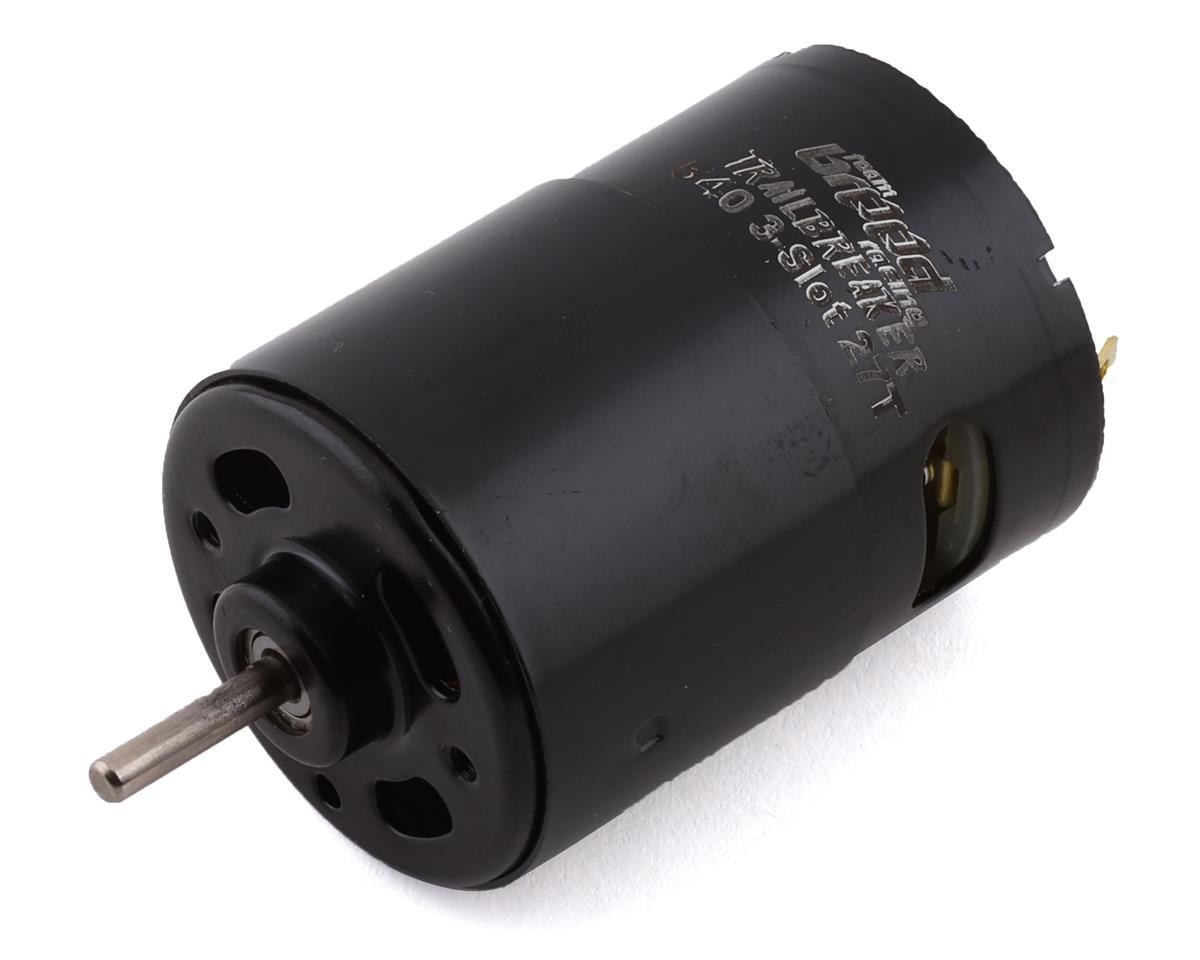

Team Brood Trailbreaker 540 Sealed Can 3 Slot Dual Magnet Brushed Motor (27T)

The Team Brood Trailbreaker 540 27T Brushed Motor combines a 3-slot machine-wound armature with a dual-magnet YG45 can for balanced RPM, torque, smooth startup and braking performance. Its sealed can, torque ring, dual ball bearings and internal cooling fan support dependable operation in demanding environments.

Features

• 3-slot machine-wound armature
• Dual-magnet can with YG45 magnets
• 1.1mm thick can
• Torque ring for increased torque, braking and efficiency
• Zero timing for normal or reverse applications
• Dual ball bearings
• Sealed endbell
• Long-wear brushes
• 1/8th shaft diameter for standard RC pinions
• Standard 540/550 M3 mounting holes on 25mm spacing
• Internal cooling fan
• Laser engraved identification
• Fully broken-in and tested before shipping
• 30 Day Limited Warranty

Specifications

• Poles: 2
• Magnets: Dual YG45
• Voltage Input: 3.7v-14.8v
• Break-In: 600 seconds at 5 volts
• Armature Construction: Machine Wound
• Lamination Size: .014"
• Stack Design: Straight
• Slots: 3
• Wire Type: Copper Round
• Balance Type: Drill
• Weight: 180 Grams +/- 5
• Length: 55.25mm
• Diameter: 35.05mm w/o Torque Ring; 37.00mm w/ Torque Ring
• Shaft Size: 3mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm
