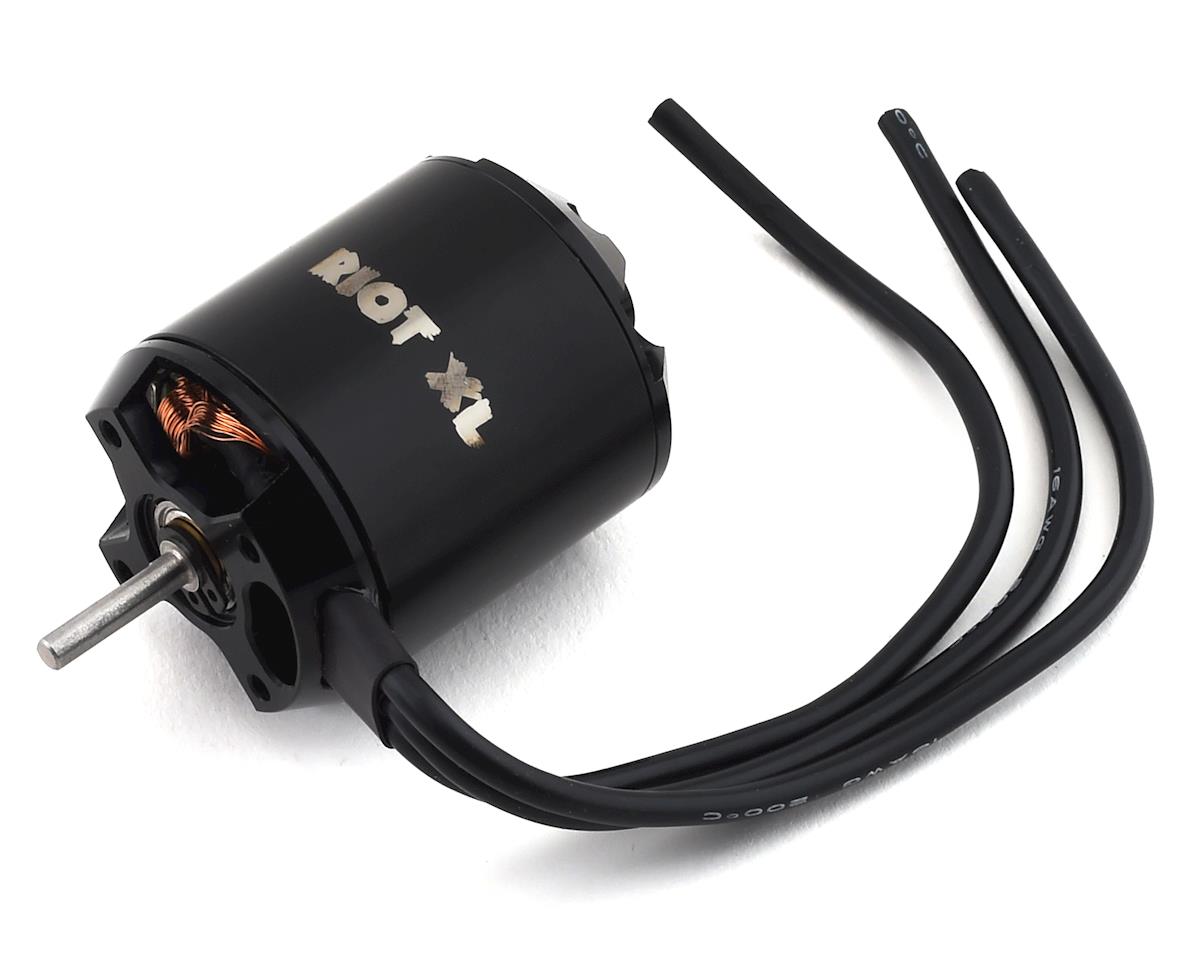

Team Brood Riot XL 47mm Sensorless Outrunner Brushless Crawler Motor (900Kv)

The Team Brood Riot XL 47mm Sensorless Outrunner Brushless Crawler Motor is designed for scale, trail, comp, U4-style and rock racer crawler applications. It features a 900Kv, 14-pole/12-slot brushless outrunner design with N42 Neodymium Magnets and 0.2mm Kawasaki Steel Laminations.

Features

• Lightweight, compact brushless outrunner
• 0.2mm Kawasaki Steel Laminations
• N42 Neodymium Magnets
• 14 poles/12 slots for torque, power and smoother startup
• Water-resistant design
• CNC Machined 6061-T6 Aluminium Housing
• Standard 540 M3 Mounting Pattern
• Standard 1/8th Size Shaft with D Cut
• 1 Year Limited Warranty

Specifications

• Kv: 900Kv
• Type: 14 pole/12 slot Brushless Outrunner
• Magnets: N42 Neodymium Magnets
• Length: 47mm
• Diameter: 35mm
• Stator: 28x26mm
• Laminations: 0.2mm Kawasaki Steel
• Weight: 160 grams
• Input Voltage: 2s-4s Lipo
• Mounting Pattern: M3 25mm
• Shaft Diameter: 1/8" with flat (3.175mm)
• Wire: 4.5" 16AWG Silicone wire

Recommended Uses

• Scale and trail rigs with single speed or two speed transmissions
• Comp trucks for Sorrca, Recon G6, etc
• U4 style trucks
• Rock racer trucks, including Axial Bomber and Axial Wraith

Outrunner type motors are water resistant, but require post-run maintenance if exposed to water. The 1 Year Limited Warranty covers manufacturing defects and does not cover water damage, rust, heat damage from overgearing, modifications, improper installation, misuse or abuse.
