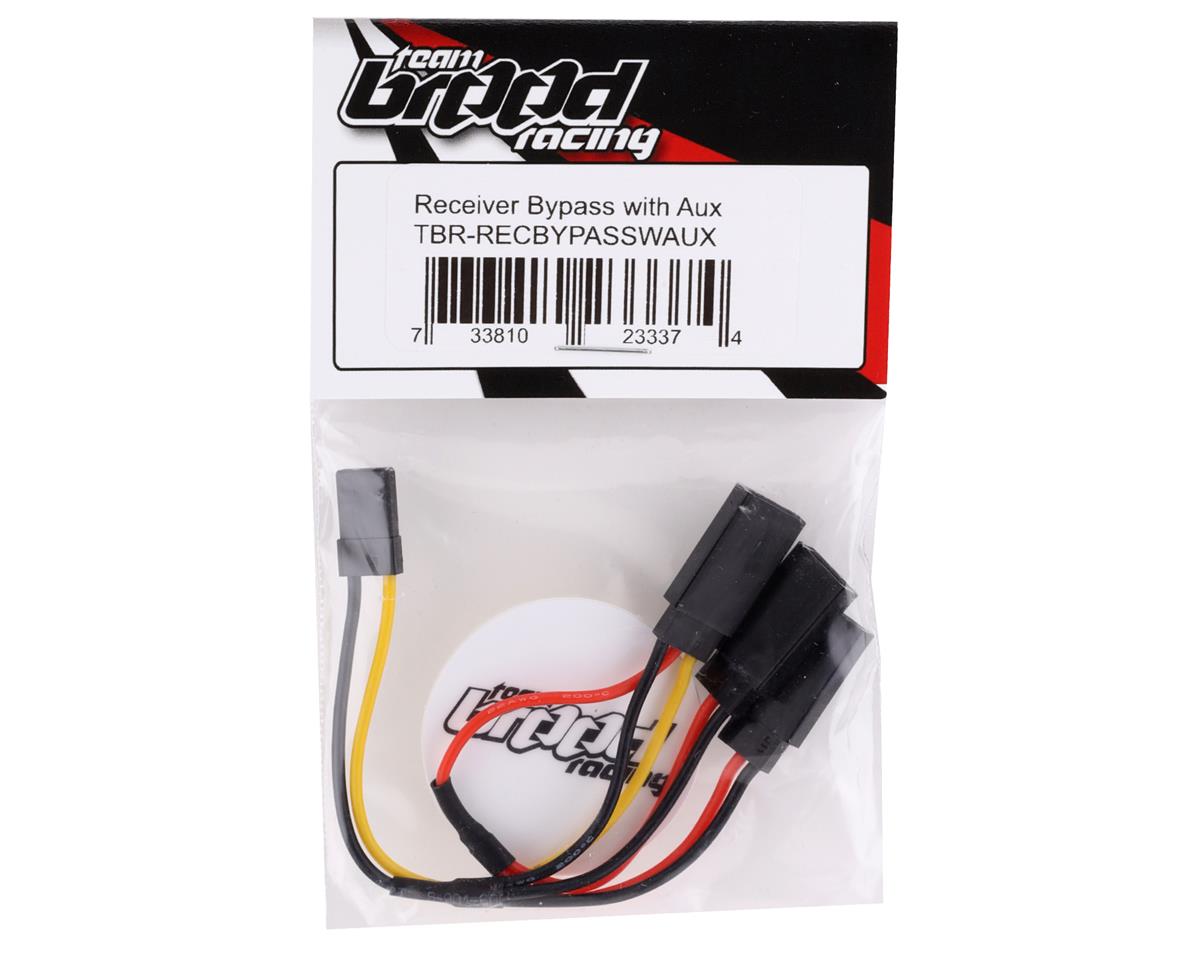

Team Brood Receiver Bypass Harness w/Auxiliary Port

The Team Brood Receiver Bypass Harness with Auxiliary Port lets a hi-volt and/or hi-torque servo draw power directly from the BEC instead of through the receiver. It also helps separate higher BEC voltage from the receiver or electronics that may not handle it, including applications where a dig servo and steering servo require different voltage handling.

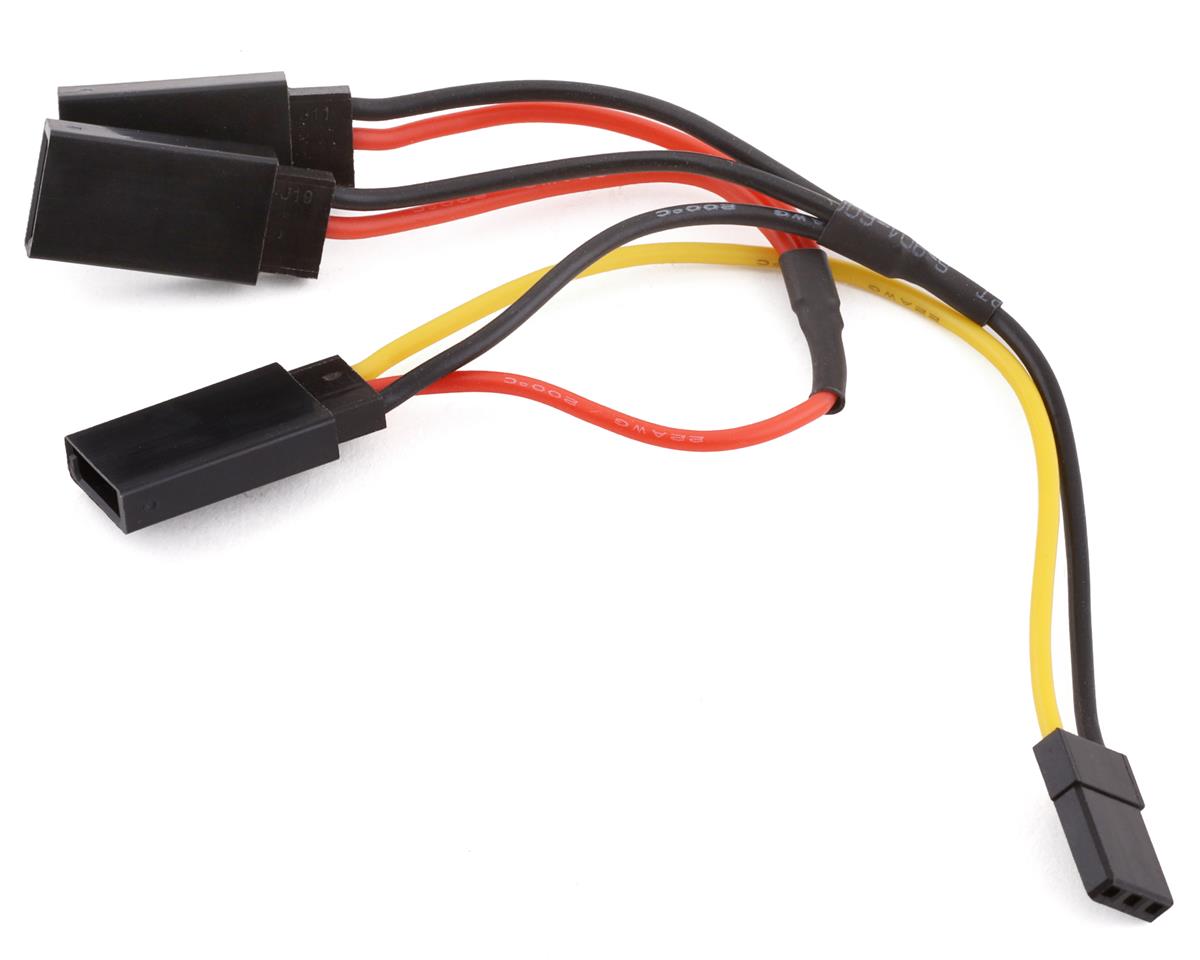

Connection Guide

• Connect the servo to the +/-/signal plug.
• Connect the BEC to the +/- plug.
• Connect the signal/- connector to the servo receiver channel.
• Use the additional +/- plug to power accessories that do not require a signal, such as lights.

The servo receives its signal from the receiver and shares a dual ground path with the receiver and BEC to help prevent ground issues.
