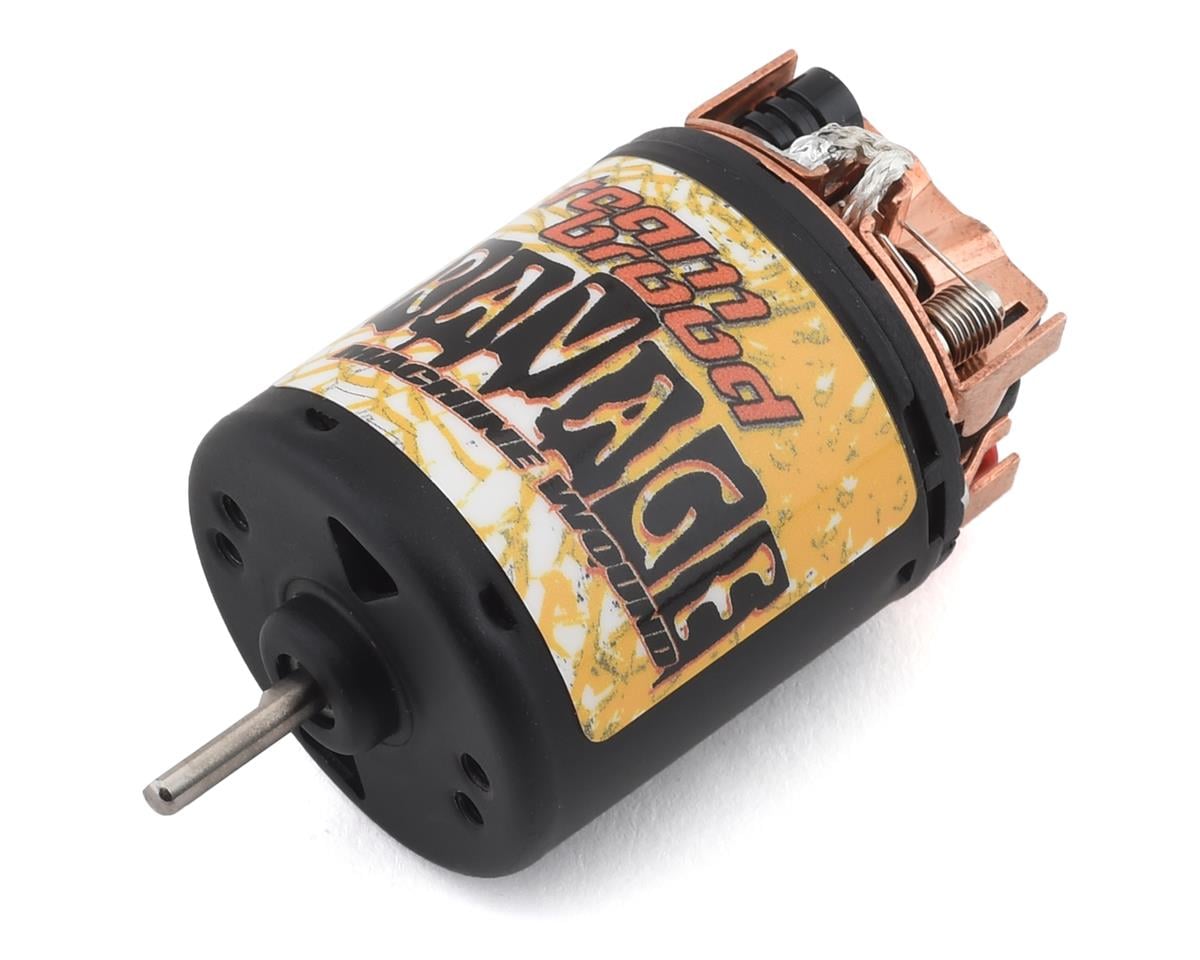

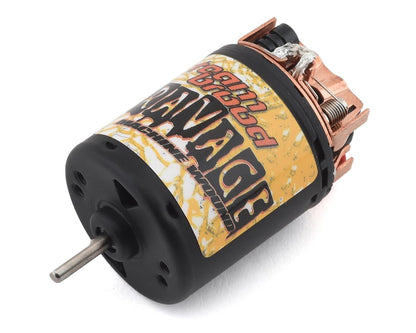

Team Brood Ravage Machine Wound 540 5 Segment Dual Magnet Brushed Motor (11T)

The Team Brood Ravage Machine Wound 540 5 Segment Dual Magnet Brushed Motor (11T) combines a machine-wound armature with dual C6 magnets, adjustable timing, and a rebuildable design. Each motor is assembled with hand-shimmed armature alignment, precision brush hood alignment, cleaned and lubricated bearings, and measured springs, then fully broken in and tested.

Features

• Dual C6 magnet can for torque and brake strength
• Adjustable timing for powerband tuning
• Rebuildable design
• Dual precision ball bearings
• Aluminum heatsinks for additional cooling
• Standup brushes with optimal tension springs
• Machine-wound copper armature
• Fully broken in and ready to install and run
• 30 Day Limited warranty through the manufacturer

Specifications

• Motor: 2 poles, dual C6 magnets, standup brushes
• Voltage Input: 3.7v-14.8v
• Break-In: 300 seconds at 3 volts, 30 seconds at 3.5 volts
• Armature Construction: Machine wound
• Lamination Size: .014"
• Stack Design: Skew
• Slots: 5
• Wire Type: Copper Round
• Balance Type: Drill
• Turns: 11T
• Weight: 6 ounces
• Length: 54mm (2.125")
• Diameter: 35.85mm (1.41")
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm
